Industrial Cables
H05V2-K/H07V2-K
Application and Description
H05V2-K/H07V2-K special heat-resistant flexible single-conductor hook-up wires are ideal for use in power
current installation, switch cabinets, motors and transformers which are subject to direct contact with high
temperature (e.g. varnishing machines and drying towers etc.). H05V2-K/H07V2-K cables are also suitable for
inside wiring of electrical equipments such as lighting and heating apparatus.
Standard and Approval
HD 21.7 S2, VDE-0281 Part-7

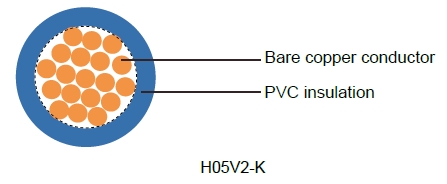

Cable Construction
Fine bare copper strands
Strands to VDE-0295 Class-5, IEC 60228 Class-5, BS 6360 cl. 5 and HD 383
Special heat resistant PVC TI3 core insulation to DIN VDE 0281 part 7
Cores to VDE-0293 colors
H05V2-K (20, 18 & 17 AWG)
H07V2-K (16 AWG and Larger)
Technical Characteristics
Working voltage: 300/500v (H05V2-K)/ 450/750v (H07V2-K)
Working voltage: Test voltage: 2000 volts
Flexing bending radius: 10-15 x Ø
Static bending radius: 10-15 x Ø
Flexing temperature: +5º C to +90º C
Static temperature: -10º C to +105º C
-Short circuit temperature: +160º C
Flame retardant: IEC 60332.1
Insulation resistance: 20 MΩ x km
Cable Parameter
AWG |
No. of Cores x Nominal Cross Sectional Area # x mm² |
Nominal Thickness of Insulation mm |
Nominal Overall Diameter mm |
Nominal Copper Weight kg/Km |
Nominal Weight kg/Km |
H05V2-K |
|||||
20(16/32) |
1 x 0.5 |
0.6 |
2.5 |
4.8 |
8.7 |
18(24/32) |
1 x 0.75 |
0.6 |
2.7 |
7.2 |
11.9 |
17(32/32) |
1 x 1 |
0.6 |
2.8 |
9.6 |
14.0 |
H07V2-K |
|||||
16(30/30) |
1 x 1.5 |
0,7 |
3.4 |
14.4 |
20 |
14(50/30) |
1 x 2.5 |
0,8 |
4.1 |
24 |
33.3 |
12(56/28) |
1 x 4 |
0,8 |
4.8 |
38 |
48.3 |
10(84/28) |
1 x 6 |
0,8 |
5.3 |
58 |
68.5 |
8(80/26) |
1 x 10 |
1,0 |
6.8 |
96 |
115 |
6(128/26) |
1 x 16 |
1,0 |
8.1 |
154 |
170 |
4 (200/26) |
1 x 25 |
1,2 |
10.2 |
240 |
270 |
2 (280/26) |
1 x 35 |
1,2 |
11.7 |
336 |
367 |
1 (400/26) |
1 x 50 |
1,4 |
13.9 |
480 |
520 |
2/0 (356/24) |
1 x 70 |
1,4 |
16 |
672 |
729 |
3/0 (485/24) |
1 x 95 |
1,6 |
18.2 |
912 |
962 |
4/0 (614/24) |
1 x 120 |
1,6 |
20.2 |
1115 |
1235 |
300 MCM(765/24) |
1 x 150 |
1,8 |
22.5 |
1440 |
1523 |
350 MCM(944/24) |
1 x 185 |
2,0 |
24.9 |
1776 |
1850 |
500MCM(1225/24) |
1 x 240 |
2,2 |
28.4 |
2304 |
2430 |
