Industrial Cables
H05V2V2-F/H05V2V2H2-F
Application and Description
H05V2V2-F/H05V2V2H2-F cables are suitable for domestic premises, kitchen, office for light service or light
portable apparatuses. With their special insulation and sheath compounds H05V2V2-F/H05V2V2H2-F cables are
adapt for apparatus in kitchen and heating and for use in zones with high temperature (like lighting system
apparatuses) without contact with warm parts and radiations. Unsuitable for outdoor use, in industrial and
agricultural buildings or non-domestic portable tools. The maximum conductor temperature in normal use:
90°C.While high temperature use, skin contact must be avoided
Standard and Approval
HD 21.12; HD 308 S2, DIN VDE 0281 part 1, part 12, DIN VDE 0293 part 308, DIN VDE 0295

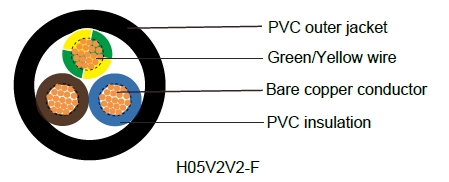

Cable Construction
Bare copper fine wire conductor
Stranded to DIN VDE 0295 cl. 5, IEC 60228 cl. 5 and HD 383
PVC core insulation T13 to VDE-0281 Part 1
Green-yellow grounding (3 conductors and above)
Color coded to VDE-0293-308
PVC outer jacket TM3
Technical Characteristics
Working voltage: 300/500 volts
Test voltage: 2000 volts
Flexing bending radius: 15 x Ø
Static bending radius: 4 x Ø
Flexing temperature: +5º C to +90º C
Static temperature: -40º C to +90º C
Short circuit temperature: +160º C
Flame retardant: IEC 60332.1
Insulation resistance: 20 MΩ x km
Cable Parameter
| AWG | No. of Cores x Nominal Cross Sectional Area # x mm² | Nominal Thickness of Insulation mm | Nominal Thickness of Sheath mm | Nominal Overall Diameter mm | Nominal Copper Weight kg/Km | Nominal Weight kg/Km |
| H05V2V2-F | ||||||
| 18(24/32) | 2 x 0.75 | 0.6 | 0.8 | 6.2 | 14.4 | 54.2 |
| 18(24/32) | 3 x 0.75 | 0.6 | 0.8 | 6.6 | 21.6 | 65 |
| 18(24/32) | 4 x 0.75 | 0.6 | 0.8 | 7.1 | 29 | 77.7 |
| 18(24/32) | 5 x 0.75 | 0.6 | 0.9 | 8 | 36 | 97.3 |
| 17(32/32) | 2 x 1.00 | 0.6 | 0.8 | 6.4 | 19 | 60.5 |
| 17(32/32) | 3 x 1.00 | 0.6 | 0.8 | 6.8 | 29 | 73.1 |
| 17(32/32) | 4 x 1.00 | 0.6 | 0.9 | 7.6 | 38 | 93 |
| 17(32/32) | 5 x 1.00 | 0.6 | 0.9 | 8.3 | 48 | 111.7 |
| 16(30/30) | 2 x 1.50 | 0.7 | 0.8 | 7.4 | 29 | 82.3 |
| 16(30/30) | 3 x 1.50 | 0.7 | 0.9 | 8.1 | 43 | 104.4 |
| 16(30/30) | 4 x 1.50 | 0.7 | 1.0 | 9 | 58 | 131.7 |
| 16(30/30) | 5 x 1.50 | 0.7 | 1.1 | 10 | 72 | 163.1 |
| 14(30/50) | 2 x 2.50 | 0.8 | 1.0 | 9.2 | 48 | 129.1 |
| 14(30/50) | 3 x 2.50 | 0.8 | 1.1 | 10 | 72 | 163 |
| 14(30/50) | 4 x 2.50 | 0.8 | 1.1 | 10.9 | 96 | 199.6 |
| 14(30/50) | 5 x 2.50 | 0.8 | 1.2 | 12.4 | 120 | 245.4 |
| 12(56/28) | 3 x 4.00 | 0.8 | 1.2 | 11.3 | 115 | 224 |
| 12(56/28) | 4 x 4.00 | 0.8 | 1.2 | 12.5 | 154 | 295 |
| 12(56/28) | 5 x 4.00 | 0.8 | 1.4 | 13.7 | 192 | 361 |
| 10(84/28) | 3 x 6.00 | 0.8 | 1.1 | 13.1 | 181 | 328 |
| 10(84/28) | 4 x 6.00 | 0.8 | 1.3 | 13.9 | 230 | 490 |

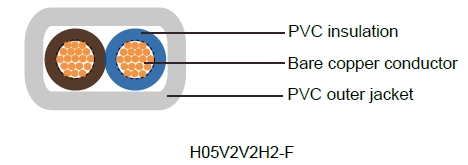

| H05V2V2H2-F | ||||||
| 18(24/32) | 2 x 0.75 | 0.6 | 0.8 | 4.2 x 6.8 | 14.1 | 48 |
| 17(32/32) | 2 x 1.00 | 0.6 | 0.8 | 4.4 x 7.2 | 19 | 57 |
