Industrial Cables
H07RN-F
Application and Description
H07RN-F cables are designed to provide high flexibility and have the capacity to withstand weather, oils/
greases, mechanical and thermal stresses. Applications include handling equipment, mobile power supplies,
worksites, stage and audio visual equipment, port areas and dams. Also suitable for fixed installations on
plaster, temporary buildings and residential barracks and for use in drainage and water treatment, cold
environments and severe industrial environments. Max operating voltage in single or three phase system is
Uo/U 476/825 volts. In a direct current system max operating voltage is Uo/U 619/1238 volts. If in a fixed or
protected installation Uo/U is 600/1000 volts. These cables are resistant to flame, acids, and oil penetration.
Standard and Approval
HD22.4 S3, VDE-0282 Part-4, IEC 60245-4

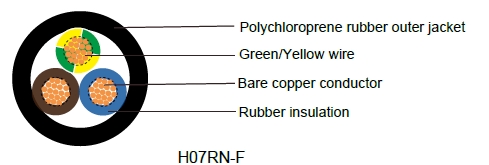

Cable Construction
Fine bare copper strands
Strands to VDE-0295 Class-5, IEC 60228 Class-5
Rubber core insulation EI4 to VDE-0282 Part-1
Color code VDE-0293-308 and HD 186
Green-yellow grounding, 3 conductors and above
Polychloroprene rubber (neoprene) jacket EM2
Technical Characteristics
Working voltage: 450/750 volts
Test voltage: 2500 volts
Flexing bending radius: 6 x Ø
Fixed bending radius: 4.0 x Ø
Flexing Temperature: -25º C to +60º C
Fixed Temperature: -40º C to +60º C
Short circuit temperature: +200 º C
Flame retardant: IEC 60332.1
Insulation resistance: 20 MΩ x km
Cable Parameter
| AWG | No. of Cores x Nominal Cross Sectional Area # x mm² | Nominal Thickness of Insulation mm | Nominal Thickness of Sheath mm | Nominal Overall Diameter mm min-max | Nominal Copper Weight kg/Km | Nominal Weight kg/Km |
| 17(32/32) | 2 x 1 | 0.8 | 1.3 | 7.7-10 | 19 | 89 |
| 17(32/32) | 3 x 1 | 0.8 | 1.4 | 8.3-10.7 | 29 | 111 |
| 17(32/32) | 4 x 1 | 0.8 | 1.5 | 9.2-11.9 | 38 | 146 |
| 16(30/30) | 1 x 1.5 | 0.8 | 1.4 | 5.7-7.1 | 14.4 | 59 |
| 16(30/30) | 2 x 1.5 | 0.8 | 1.5 | 8.5-11.0 | 29 | 135 |
| 16(30/30) | 3 x 1.5 | 0.8 | 1.6 | 9.2-11.9 | 43 | 165 |
| 16(30/30) | 4 x 1.5 | 0.8 | 1.7 | 10.2-13.1 | 58 | 200 |
| 16(30/30) | 5 x 1.5 | 0.8 | 1.8 | 11.2-14.4 | 72 | 240 |
| 16(30/30) | 7 x 1.5 | 0.8 | 2.6 | 14.5-17.5 | 101 | 385 |
| 16(30/30) | 12 x 1.5 | 0.8 | 2.9 | 17.6-22.4 | 173 | 516 |
| 16(30/30) | 19 x 1.5 | 0.8 | 3.2 | 20.7-26.3 | 274 | 800 |
| 16(30/30) | 24 x 1.5 | 0.8 | 3.5 | 24.3-30.7 | 346 | 882 |
| 14(50/30) | 1 x 2.5 | 0.9 | 1.4 | 6.3-7.9 | 24 | 72 |
| 14(50/30) | 2 x 2.5 | 0.9 | 1.7 | 10.2-13.1 | 48 | 195 |
| 14(50/30) | 3 x 2.5 | 0.9 | 1.8 | 10.9-14.0 | 72 | 235 |
| 14(50/30) | 4 x 2.5 | 0.9 | 1.9 | 12.1-15.5 | 96 | 290 |
| 14(50/30) | 5 x 2.5 | 0.9 | 2.0 | 13.3-17.0 | 120 | 345 |
| 14(50/30) | 7 x 2.5 | 0.9 | 2.8 | 16.5-20.0 | 168 | 520 |
| 14(50/30) | 12 x 2.5 | 0.9 | 3.1 | 20.6-26.2 | 288 | 810 |
| 14(50/30) | 19 x 2.5 | 0.9 | 3.5 | 25.5-31.0 | 456 | 1200 |
| 14(50/30) | 24 x 2.5 | 0.9 | 3.9 | 28.8-36.4 | 576 | 1650 |
| 12(56/28) | 1 x 4 | 1.0 | 1.5 | 7.2-9.0 | 38 | 99 |
| 12(56/28) | 2 x 4 | 1.0 | 1.8 | 11.8-15.1 | 77 | 270 |
| 12(56/28) | 3 x 4 | 1.0 | 1.9 | 12.7-16.2 | 115 | 320 |
| 12(56/28) | 4 x 4 | 1.0 | 2 | 14.0-17.9 | 154 | 395 |
| 12(56/28) | 5 x 4 | 1.0 | 2.2 | 15.6-19.9 | 192 | 485 |
| 12(56/28) | 7 x 4 | 1.0 | 3.1 | 18.2-21.8 | 269 | 681 |
| 10(84/28) | 1 x 6 | 1.0 | 1.6 | 7.9-9.8 | 58 | 130 |
| 10(84/28) | 3 x 6 | 1.0 | 2.1 | 14.1-18.0 | 173 | 495 |
| 10(84/28) | 4 x 6 | 1.0 | 2.3 | 15.7-20.0 | 230 | 610 |
| 10(84/28) | 5 x 6 | 1.2 | 2.5 | 17.5-22.2 | 288 | 760 |
| 8(80/26) | 1 x 10 | 1.2 | 1.8 | 9.5-11.9 | 96 | 230 |
| 8(80/26) | 3 x 10 | 1.2 | 3.3 | 19.1-24.2 | 288 | 880 |
| 8(80/26) | 4 x 10 | 1.2 | 3.4 | 20.9-26.5 | 384 | 1060 |
| 8(80/26) | 5 x 10 | 1.2 | 3.6 | 22.9-29.1 | 480 | 1300 |
| 6(128/26) | 1 x 16 | 1.2 | 1.9 | 10.8-13.4 | 154 | 320 |
| 6(128/26) | 3 x 16 | 1.2 | 3.5 | 21.8-27.6 | 461 | 1090 |
| 6(128/26) | 4 x 16 | 1.2 | 3.6 | 23.8-30.1 | 614 | 1345 |
| 6(128/26) | 5 x 16 | 1.2 | 3.9 | 26.4-33.3 | 768 | 1680 |
| 4(200/26) | 1 x25 | 1.4 | 2.0 | 12.7-15.8 | 240 | 450 |
| 4(200/26) | 4 x 25 | 1.4 | 4.1 | 28.9-36.6 | 960 | 1995 |
| 4(200/26) | 5 x 25 | 1.4 | 4.4 | 32.0-40.4 | 1200 | 2470 |
| 2(280/26) | 1 x 35 | 1.4 | 2.2 | 14.3-17.9 | 336 | 605 |
| 2(280/26) | 3 x 35 | 1.4 | 4.1 | 29.3-37.1 | 1008 | 1900 |
| 2(280/26) | 4 x 35 | 1.4 | 4.4 | 32.5-41.1 | 1344 | 2645 |
| 2(280/26) | 5 x 35 | 1.4 | 4.7 | 37.0-45.0 | 1680 | 2810 |
| 1(400/26) | 1 x 50 | 1.6 | 2.4 | 16.5-20.6 | 480 | 825 |
| 1(400/26) | 4 x 50 | 1.6 | 4.8 | 37.7-47.5 | 1920 | 3635 |
| 1(400/26) | 5 x 50 | 1.6 | 5.1 | 40.0-50.8 | 2400 | 4050 |
| 2/0(356/24) | 1 x 70 | 1.6 | 2.6 | 18.6-23.3 | 672 | 1090 |
| 2/0(356/24) | 4 x 70 | 1.6 | 5.2 | 42.7-54.0 | 2688 | 4830 |
| 3/0(485/24) | 1 x 95 | 1.8 | 2.8 | 20.8-26.0 | 912 | 1405 |
| 3/0(485/24) | 4 x 95 | 1.8 | 5.9 | 48.4-61.0 | 3648 | 6320 |
| 4/0(614/24) | 1x 120 | 1.8 | 3 | 22.8-28.6 | 1152 | 1746 |
| 4/0(614/24) | 4 x 120 | 1.8 | 6 | 53.0-66.0 | 4608 | 6830 |
| 300MCM (765/24) | 1 x 150 | 2 | 3.2 | 25.2-31.4 | 1440 | 1887 |
| 300MCM (765/24) | 4 x 150 | 58.0-73.0 | 5760 | 8320 | ||
| 350MCM (944/24) | 1 x 185 | 2.2 | 3.4 | 27.6-34.4 | 1776 | 2274 |
| 350MCM (944/24) | 4 x 185 | 64.0-80.0 | 7104 | 9800 | ||
| 500MCM (1221/24) | 1x 240 | 2.4 | 3.5 | 30.6-38.3 | 23.4 | 2956 |
| 500MCM (1221/24) | 4x 240 | 72.0-90.0 | 9216 | 12100 | ||
| 1 x 300 | 2.6 | 3.6 | 33.5-41.9 | 2880 | 3479 | |
| 1 x 400 | 2.8 | 3.8 | 4500 | |||
| 1x 500 | 3 | 4 | 5800 |
