CCES



Application and Description:

CCES cables are used in control circuits required electrostatic shielding in underground duct, conduit and open

air.

Reference Standard:

IEC 60502-1

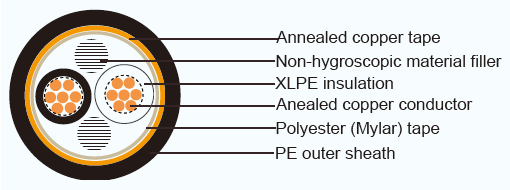

Cable Construction:

CCES

Conductor: Stranded annealed copper wires,

Sizes: 1.5 mm2 up to 10 mm2

Insulation: Cross-linked polyethylene(XLPE)

Color : 2-4 cores-Black, White, Red and Green ,

More than 4 cores: Black core with marking numbers

Filler: Non-hygroscopic material(optional)

Binding tape: Polyester (Mylar) tape (optional) Shield: Annealed copper tape, 0.1mm

Outer sheath: Polyethylene(PE), Black color (A special flame retardant can be supplied)

Technical Characteristics:

Maximum conductor temperature 90oC

Circuit voltage not exceeding 600 volts

Test voltage 3500 volts

Cable Parameter:

NO. OF CORES CONDUCTOR THICKNESS OF INSULATION THICKNESS OF
OUTER SHEATH		 OVERALL DIAMETER MAXIMUM CONDUCTOR RESISTANCE (AT 20°C) CABLE WEIGHT
NOMINAL
CROSS- SECTIONAL AREA		 NO.& DIA. OF
WIRES		 DIAMETER
MM2 MM MM MM MM MM OHM/KM KG/KM
2 1.5 7 / 0.53 1.59 0.8 1.8 11.4 12.1 148
2.5 7 / 0.67 2.01 0.8 1.8 12.3 7.41 173
4 7 / 0.85 2.55 1.0 1.8 14.2 4.61 237
6 7 / 1.04 3.12 1.0 1.8 15.4 3.08 290
10 7 / 1.35 4.05 1.0 1.8 16.9 1.83 343
3 1.5 7 / 0.53 1.59 0.8 1.8 11.9 12.1 169
2.5 7 / 0.67 2.01 0.8 1.8 12.9 7.41 214
4 7 / 0.85 2.55 1.0 1.8 15.0 4.61 301
6 7 / 1.04 3.12 1.0 1.8 16.2 3.08 375
10 7 / 1.35 4.05 1.0 1.8 17.9 1.83 457
4 1.5 7 / 0.53 1.59 0.8 1.8 12.8 12.1 197
2.5 7 / 0.67 2.01 0.8 1.8 13.9 7.41 245
4 7 / 0.85 2.55 1.0 1.8 16.2 4.61 345
6 7 / 1.04 3.12 1.0 1.8 17.6 3.08 433
10 7 / 1.35 4.05 1.0 1.8 19.5 1.83 575
5 1.5 7 / 0.53 1.59 0.8 1.8 13.8 12.1 227
2.5 7 / 0.67 2.01 0.8 1.8 15.0 7.41 287
4 7 / 0.85 2.55 1.0 1.8 17.3 4.61 410
6 7 / 1.04 3.12 1.0 1.8 19.2 3.08 526
10 7 / 1.35 4.05 1.0 1.8 21.4 1.83 690
6 1.5 7 / 0.53 1.59 0.8 1.8 14.8 12.1 248
2.5 7 / 0.67 2.01 0.8 1.8 16.1 7.41 322
4 7 / 0.85 2.55 1.0 1.8 19.0 4.61 486
6 7 / 1.04 3.12 1.0 1.8 20.8 3.08 614
10 7 / 1.35 4.05 1.0 1.8 23.2 1.83 838
7 1.5 7 / 0.53 1.59 0.8 1.8 14.8 12.1 279
2.5 7 / 0.67 2.01 0.8 1.8 16.1 7.41 362
4 7 / 0.85 2.55 1.0 1.8 19.0 4.61 543
6 7 / 1.04 3.12 1.0 1.8 20.8 3.08 710
10 7 / 1.35 4.05 1.0 1.8 23.2 1.83 972
8 1.5 7 / 0.53 1.59 0.8 1.8 15.8 12.1 312
2.5 7 / 0.67 2.01 0.8 1.8 17.3 7.41 408
4 7 / 0.85 2.55 1.0 1.8 20.5 4.61 608
6 7 / 1.04 3.12 1.0 1.8 21.7 3.08 789
10 7 / 1.35 4.05 1.0 1.8 24.5 1.83 1074
10 1.5 7 / 0.53 1.59 0.8 1.8 18.2 12.1 408
2.5 7 / 0.67 2.01 0.8 1.8 19.9 7.41 532
4 7 / 0.85 2.55 1.0 1.8 23.8 4.61 792
6 7 / 1.04 3.12 1.0 1.8 22.4 3.08 1019
10 7 / 1.35 4.05 1.0 1.8 29.6 1.83 1392
12 1.5 7 / 0.53 1.59 0.8 1.8 18.7 12.1 462
2.5 7 / 0.67 2.01 0.8 1.8 20.5 7.41 597
4 7 / 0.85 2.55 1.0 1.8 24.6 4.61 898
6 7 / 1.04 3.12 1.0 1.8 27.0 3.08 1176
10 7 / 1.35 4.05 1.0 1.8 30.5 1.83 1629
15 1.5 7 / 0.53 1.59 0.8 1.8 20.0 12.1 537
2.5 7 / 0.67 2.01 0.8 1.8 22.1 7.41 717
4 7 / 0.85 2.55 1.0 1.8 26.4 4.61 1066
6 7 / 1.04 3.12 1.0 1.8 29.1 3.08 1402
20 1.5 7 / 0.53 1.59 0.8 1.8 22.1 12.1 646
2.5 7 / 0.67 2.01 0.8 1.8 24.5 7.41 871
4 7 / 0.85 2.55 1.0 1.8 29.5 4.61 1367
6 7 / 1.04 3.12 1.0 1.8 32.5 3.08 1826
30 1.5 7 / 0.53 1.59 0.8 1.8 26.3 12.1 942
2.5 7 / 0.67 2.01 0.8 1.8 28.2 7.41 1242
4 7 / 0.85 2.55 1.0 1.9 35.6 4.61 1964
