CVV-SWA
Application and Description:
CVV-SWA cables are used in duct, tray and for direct burying in ground. The cable is subject to immerse in water
all the line.
Reference Standard:
IEC 60502-1

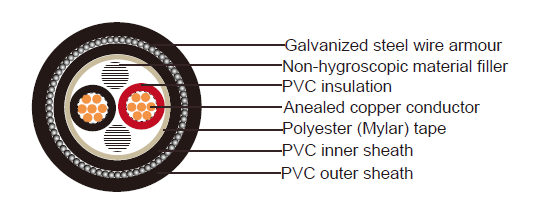

Cable Construction:
Conductor: Stranded annealed copper wires,
Sizes: 0.5 mm2 up to 6 mm2
Insulation: Polyvinyl chloride (PVC)
Color : 2-4 cores-Black, White, Red and Green ,
More than 4 cores: Black core with marking numbers
Filler: Non-hygroscopic material(optional)
Binding tape: Polyester (Mylar) tape (optional) Inner sheath: Polyvinyl chloride (PVC),
Black color Armour: Galvanized steel wire
Separator Tape : Polyester (Mylar) tape
Outer sheath: Polyvinyl chloride (PVC), Black color(A special flame retardant can be supplied)
Technical Characteristics:
Maximum conductor temperature 70oC
Circuit voltage not exceeding 600 volts
Test voltage 3500 volts
Cable Parameter:| NO. OF CORES | CONDUCTOR | THICK- NESS OF INSULATION |
THICK- NESS OF INNER SHEATH |
DIAMETER OF STEEL WIRE ARMOUR |
THICK- NESS OF OUTER SHEATH |
OVERALL DIAMETER | MAXIMUM CONDUCTOR RESISTANCE (AT 20°C) | MINIMUM INSULATION RESISTANCE (AT 70°C) | CABLE WEIGHT | ||
| NOMINAL CROSS- SECTIONAL AREA |
NO.& DIA. OF WIRES |
DIAMETER | |||||||||
| MM2 | MM | MM | MM | MM | MM | MM | OHM/KM | OHM/KM | KG/KM | MM | |
| 2 | 0.5 | 7/0.30 | 0.9 | 0.8 | 1 | 0.8 | 1.8 | 14.5 | 36 | 0.0162 | 300 |
| 0.75 | 7/0.37 | 1.11 | 0.8 | 1 | 0.8 | 1.8 | 15 | 24.5 | 0.0142 | 320 | |
| 1 | 7/0.43 | 1.29 | 0.8 | 1 | 0.8 | 1.8 | 15.5 | 18.1 | 0.0128 | 340 | |
| 1.5 | 7/0.52 | 1.56 | 0.8 | 1 | 0.8 | 1.8 | 16 | 12.1 | 0.0112 | 370 | |
| 2.5 | 7/0.67 | 2.01 | 0.8 | 1 | 0.8 | 1.8 | 17 | 7.41 | 0.0093 | 430 | |
| 4 | 7/0.85 | 2.55 | 1 | 1 | 1.25 | 1.8 | 20 | 4.61 | 0.0092 | 670 | |
| 6 | 7/1.04 | 3.12 | 1 | 1 | 1.25 | 1.8 | 21 | 3.08 | 0.0078 | 760 | |
| 3 | 0.5 | 7/0.30 | 0.9 | 0.8 | 1 | 0.8 | 1.8 | 15 | 36 | 0.0162 | 320 |
| 0.75 | 7/0.37 | 1.11 | 0.8 | 1 | 0.8 | 1.8 | 15.5 | 24.5 | 0.0142 | 350 | |
| 1 | 7/0.43 | 1.29 | 0.8 | 1 | 0.8 | 1.8 | 16 | 18.1 | 0.0128 | 370 | |
| 1.5 | 7/0.52 | 1.56 | 0.8 | 1 | 0.8 | 1.8 | 16.5 | 12.1 | 0.0112 | 410 | |
| 2.5 | 7/0.67 | 2.01 | 0.8 | 1 | 0.8 | 1.8 | 17.5 | 7.41 | 0.0093 | 480 | |
| 4 | 7/0.85 | 2.55 | 1 | 1 | 1.25 | 1.8 | 20.5 | 4.61 | 0.0092 | 750 | |
| 6 | 7/1.04 | 3.12 | 1 | 1 | 1.25 | 1.8 | 22 | 3.08 | 0.0078 | 870 | |
| 4 | 0.5 | 7/0.30 | 0.9 | 0.8 | 1 | 0.8 | 1.8 | 16 | 36 | 0.0162 | 360 |
| 0.75 | 7/0.37 | 1.11 | 0.8 | 1 | 0.8 | 1.8 | 16.5 | 24.5 | 0.0142 | 390 | |
| 1 | 7/0.43 | 1.29 | 0.8 | 1 | 0.8 | 1.8 | 17 | 18.1 | 0.0128 | 420 | |
| 1.5 | 7/0.52 | 1.56 | 0.8 | 1 | 0.8 | 1.8 | 17.5 | 12.1 | 0.0112 | 460 | |
| 2.5 | 7/0.67 | 2.01 | 0.8 | 1 | 1.25 | 1.8 | 19.5 | 7.41 | 0.0093 | 660 | |
| 4 | 7/0.85 | 2.55 | 1 | 1 | 1.25 | 1.8 | 22 | 4.61 | 0.0092 | 860 | |
| 6 | 7/1.04 | 3.12 | 1 | 1 | 1.25 | 1.8 | 23.5 | 3.08 | 0.0078 | 1010 | |
| 5 | 0.5 | 7/0.30 | 0.9 | 0.8 | 1 | 0.8 | 1.8 | 16.5 | 36 | 0.0162 | 400 |
| 0.75 | 7/0.37 | 1.11 | 0.8 | 1 | 0.8 | 1.8 | 17.5 | 24.5 | 0.0142 | 430 | |
| 1 | 7/0.43 | 1.29 | 0.8 | 1 | 0.8 | 1.8 | 18 | 18.1 | 0.0128 | 470 | |
| 1.5 | 7/0.52 | 1.56 | 0.8 | 1 | 1.25 | 1.8 | 19.5 | 12.1 | 0.0112 | 640 | |
| 2.5 | 7/0.67 | 2.01 | 0.8 | 1 | 1.25 | 1.8 | 20.5 | 7.41 | 0.0093 | 760 | |
| 4 | 7/0.85 | 2.55 | 1 | 1 | 1.25 | 1.8 | 23.5 | 4.61 | 0.0092 | 990 | |
| 6 | 7/1.04 | 3.12 | 1 | 1 | 1.25 | 1.8 | 25 | 3.08 | 0.0078 | 1170 | |
| 6 | 0.5 | 7/0.30 | 0.9 | 0.8 | 1 | 0.8 | 1.8 | 17.5 | 36 | 0.0162 | 420 |
| 0.75 | 7/0.37 | 1.11 | 0.8 | 1 | 0.8 | 1.8 | 18 | 24.5 | 0.0142 | 470 | |
| 1 | 7/0.43 | 1.29 | 0.8 | 1 | 1.25 | 1.8 | 19.5 | 18.1 | 0.0128 | 620 | |
| 1.5 | 7/0.52 | 1.56 | 0.8 | 1 | 1.25 | 1.8 | 20.5 | 12.1 | 0.0112 | 690 | |
| 2.5 | 7/0.67 | 2.01 | 0.8 | 1 | 1.25 | 1.8 | 22 | 7.41 | 0.0093 | 820 | |
| 4 | 7/0.85 | 2.55 | 1 | 1 | 1.25 | 1.8 | 25 | 4.61 | 0.0092 | 1070 | |
| 6 | 7/1.04 | 3.12 | 1 | 1 | 1.6 | 1.8 | 27 | 3.08 | 0.0078 | 1420 | |
| 7 | 0.5 | 7/0.30 | 0.9 | 0.8 | 1 | 0.8 | 1.8 | 17.5 | 36 | 0.0162 | 430 |
| 0.75 | 7/0.37 | 1.11 | 0.8 | 1 | 0.8 | 1.8 | 18 | 24.5 | 0.0142 | 480 | |
| 1 | 7/0.43 | 1.29 | 0.8 | 1 | 1.25 | 1.8 | 19.5 | 18.1 | 0.0128 | 630 | |
| 1.5 | 7/0.52 | 1.56 | 0.8 | 1 | 1.25 | 1.8 | 20.5 | 12.1 | 0.0112 | 700 | |
| 2.5 | 7/0.67 | 2.01 | 0.8 | 1 | 1.25 | 1.8 | 22 | 7.41 | 0.0093 | 840 | |
| 4 | 7/0.85 | 2.55 | 1 | 1 | 1.25 | 1.8 | 25 | 4.61 | 0.0092 | 1100 | |
| 6 | 7/1.04 | 3.12 | 1 | 1 | 1.6 | 1.8 | 27 | 3.08 | 0.0078 | 1470 | |
| 8 | 0.5 | 7/0.30 | 0.9 | 0.8 | 1 | 1.25 | 1.8 | 19.5 | 36 | 0.0162 | 580 |
| 0.75 | 7/0.37 | 1.11 | 0.8 | 1 | 1.25 | 1.8 | 20 | 24.5 | 0.0142 | 640 | |
| 1 | 7/0.43 | 1.29 | 0.8 | 1 | 1.25 | 1.8 | 20.5 | 18.1 | 0.0128 | 690 | |
| 1.5 | 7/0.52 | 1.56 | 0.8 | 1 | 1.25 | 1.8 | 21.5 | 12.1 | 0.0112 | 770 | |
| 2.5 | 7/0.67 | 2.01 | 0.8 | 1 | 1.25 | 1.8 | 23 | 7.41 | 0.0093 | 930 | |
| 4 | 7/0.85 | 2.55 | 1 | 1 | 1.6 | 1.8 | 27 | 4.61 | 0.0092 | 1370 | |
| 6 | 7/1.04 | 3.12 | 1 | 1 | 1.6 | 1.8 | 29 | 3.08 | 0.0078 | 1640 | |
| 9 | 0.5 | 7/0.30 | 0.9 | 0.8 | 1 | 1.25 | 1.8 | 20 | 36 | 0.0162 | 640 |
| 0.75 | 7/0.37 | 1.11 | 0.8 | 1 | 1.25 | 1.8 | 21 | 24.5 | 0.0142 | 700 | |
| 1 | 7/0.43 | 1.29 | 0.8 | 1 | 1.25 | 1.8 | 21.5 | 18.1 | 0.0128 | 750 | |
| 1.5 | 7/0.52 | 1.56 | 0.8 | 1 | 1.25 | 1.8 | 22.5 | 12.1 | 0.0112 | 840 | |
| 2.5 | 7/0.67 | 2.01 | 0.8 | 1 | 1.25 | 1.8 | 24 | 7.41 | 0.0093 | 1010 | |
| 4 | 7/0.85 | 2.55 | 1 | 1 | 1.6 | 1.8 | 28.5 | 4.61 | 0.0092 | 1500 | |
| 6 | 7/1.04 | 3.12 | 1 | 1 | 1.6 | 1.8 | 30.5 | 3.08 | 0.0078 | 1800 | |
| 10 | 0.5 | 7/0.30 | 0.9 | 0.8 | 1 | 1.25 | 1.8 | 21 | 36 | 0.0162 | 680 |
| 0.75 | 7/0.37 | 1.11 | 0.8 | 1 | 1.25 | 1.8 | 22 | 24.5 | 0.0142 | 740 | |
| 1 | 7/0.43 | 1.29 | 0.8 | 1 | 1.25 | 1.8 | 23 | 18.1 | 0.0128 | 810 | |
| 1.5 | 7/0.52 | 1.56 | 0.8 | 1 | 1.25 | 1.8 | 24 | 12.1 | 0.0112 | 910 | |
| 2.5 | 7/0.67 | 2.01 | 0.8 | 1 | 1.6 | 1.8 | 26.5 | 7.41 | 0.0093 | 1240 | |
| 4 | 7/0.85 | 2.55 | 1 | 1 | 1.6 | 1.8 | 30.5 | 4.61 | 0.0092 | 1620 | |
| 6 | 7/1.04 | 3.12 | 1 | 1 | 1.6 | 1.9 | 33 | 3.08 | 0.0078 | 1980 | |
| 11 | 0.5 | 7/0.30 | 0.9 | 0.8 | 1 | 1.25 | 1.8 | 21.5 | 36 | 0.0162 | 710 |
| 0.75 | 7/0.37 | 1.11 | 0.8 | 1 | 1.25 | 1.8 | 22.5 | 24.5 | 0.0142 | 790 | |
| 1 | 7/0.43 | 1.29 | 0.8 | 1 | 1.25 | 1.8 | 23.5 | 18.1 | 0.0128 | 850 | |
| 1.5 | 7/0.52 | 1.56 | 0.8 | 1 | 1.25 | 1.8 | 24.5 | 12.1 | 0.0112 | 960 | |
| 2.5 | 7/0.67 | 2.01 | 0.8 | 1 | 1.6 | 1.8 | 27 | 7.41 | 0.0093 | 1310 | |
| 4 | 7/0.85 | 2.55 | 1 | 1 | 1.6 | 1.8 | 31 | 4.61 | 0.0092 | 1750 | |
| 6 | 7/1.04 | 3.12 | 1 | 1 | 1.6 | 1.9 | 33.5 | 3.08 | 0.0078 | 2130 | |
| 12 | 0.5 | 7/0.30 | 0.9 | 0.8 | 1 | 1.25 | 1.8 | 21.5 | 36 | 0.0162 | 720 |
| 0.75 | 7/0.37 | 1.11 | 0.8 | 1 | 1.25 | 1.8 | 22.5 | 24.5 | 0.0142 | 800 | |
| 1 | 7/0.43 | 1.29 | 0.8 | 1 | 1.25 | 1.8 | 23.5 | 18.1 | 0.0128 | 860 | |
| 1.5 | 7/0.52 | 1.56 | 0.8 | 1 | 1.25 | 1.8 | 24.5 | 12.1 | 0.0112 | 980 | |
| 2.5 | 7/0.67 | 2.01 | 0.8 | 1 | 1.6 | 1.8 | 27 | 7.41 | 0.0093 | 1330 | |
| 4 | 7/0.85 | 2.55 | 1 | 1 | 1.6 | 1.8 | 31 | 4.61 | 0.0092 | 1780 | |
| 6 | 7/1.04 | 3.12 | 1 | 1 | 1.6 | 1.9 | 33.5 | 3.08 | 0.0078 | 2190 | |
