JIS Industrial Cables

CVVSB



Application and Description:

CVVSB cables ared used in control circuits required electrostatic shielding in underground duct, conduit and open

air.

Reference Standard:

IEC 60502-1

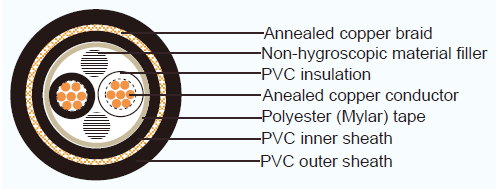

Cable Construction:

CVVSB

Conductor: Stranded annealed copper wires,

Sizes: 1.5 mm2 up to 10 mm2

Insulation: Polyvinyl chloride (PVC)

Color : 2-4 cores-Black, White, Red and Green ,

More than 4 cores: Black core with marking numbers

Filler: Non-hygroscopic material(optional)

Binding tape: Polyester (Mylar) tape (optional) Shield: Copper wire braid

Outer sheath: Polyvinyl chloride (PVC), Black color (A special flame retardant can be supplied)

Technical Characteristics:

Maximum conductor temperature 90oC

Circuit voltage not exceeding 600 volts

Test voltage 3500 volts

Cable Parameter:

NO. OF CORES CONDUCTOR THICKNESS OF INSULATION THICKNESS OF
OUTER SHEATH		 OVERALL DIAMETER MAXIMUM CONDUCTOR RESISTANCE (AT 20°C) CABLE WEIGHT
NOMINAL
CROSS- SECTIONAL AREA		 NO.& DIA. OF
WIRES		 DIAMETER
MM2 MM MM MM MM MM OHM/KM KG/KM
2 1.5 7 / 0.53 1.59 0.8 1.8 11.4 12.1 176
2.5 7 / 0.67 2.01 0.8 1.8 12.3 7.41 211
4 7 / 0.85 2.55 1.0 1.8 14.2 4.61 285
6 7 / 1.04 3.12 1.0 1.8 15.4 3.08 348
10 7 / 1.35 4.05 1.0 1.8 16.9 1.83 411
3 1.5 7 / 0.53 1.59 0.8 1.8 11.9 12.1 207
2.5 7 / 0.67 2.01 0.8 1.8 12.9 7.41 252
4 7 / 0.85 2.55 1.0 1.8 15.0 4.61 349
6 7 / 1.04 3.12 1.0 1.8 16.2 3.08 433
10 7 / 1.35 4.05 1.0 1.8 17.9 1.83 535
4 1.5 7 / 0.53 1.59 0.8 1.8 12.8 12.1 245
2.5 7 / 0.67 2.01 0.8 1.8 13.9 7.41 303
4 7 / 0.85 2.55 1.0 1.8 16.2 4.61 423
6 7 / 1.04 3.12 1.0 1.8 17.6 3.08 531
10 7 / 1.35 4.05 1.0 1.8 19.5 1.83 673
5 1.5 7 / 0.53 1.59 0.8 1.8 13.8 12.1 285
2.5 7 / 0.67 2.01 0.8 1.8 15.0 7.41 355
4 7 / 0.85 2.55 1.0 1.8 17.3 4.61 498
6 7 / 1.04 3.12 1.0 1.8 19.2 3.08 634
10 7 / 1.35 4.05 1.0 1.8 21.4 1.83 818
6 1.5 7 / 0.53 1.59 0.8 1.8 14.8 12.1 326
2.5 7 / 0.67 2.01 0.8 1.8 16.1 7.41 410
4 7 / 0.85 2.55 1.0 1.8 19.0 4.61 584
6 7 / 1.04 3.12 1.0 1.8 20.8 3.08 742
10 7 / 1.35 4.05 1.0 1.8 23.2 1.83 966
7 1.5 7 / 0.53 1.59 0.8 1.8 14.8 12.1 347
2.5 7 / 0.67 2.01 0.8 1.8 16.1 7.41 440
4 7 / 0.85 2.55 1.0 1.8 19.0 4.61 631
6 7 / 1.04 3.12 1.0 1.8 20.8 3.08 808
10 7 / 1.35 4.05 1.0 1.8 23.2 1.83 1070
8 1.5 7 / 0.53 1.59 0.8 1.8 15.8 12.1 390
2.5 7 / 0.67 2.01 0.8 1.8 17.3 7.41 496
4 7 / 0.85 2.55 1.0 1.8 20.5 4.61 716
6 7 / 1.04 3.12 1.0 1.8 21.7 3.08 917
10 7 / 1.35 4.05 1.0 1.8 24.5 1.83 1222
10 1.5 7 / 0.53 1.59 0.8 1.8 18.2 12.1 486
2.5 7 / 0.67 2.01 0.8 1.8 19.9 7.41 620
4 7 / 0.85 2.55 1.0 1.8 23.8 4.61 900
6 7 / 1.04 3.12 1.0 1.8 22.4 3.08 1157
10 7 / 1.35 4.05 1.0 1.8 29.6 1.83 1550
12 1.5 7 / 0.53 1.59 0.8 1.8 18.7 12.1 540
2.5 7 / 0.67 2.01 0.8 1.8 20.5 7.41 695
4 7 / 0.85 2.55 1.0 1.8 24.6 4.61 1016
6 7 / 1.04 3.12 1.0 1.8 27.0 3.08 1314
10 7 / 1.35 4.05 1.0 1.8 30.5 1.83 1787
15 1.5 7 / 0.53 1.59 0.8 1.8 20.0 12.1 635
2.5 7 / 0.67 2.01 0.8 1.8 22.1 7.41 825
4 7 / 0.85 2.55 1.0 1.8 26.4 4.61 1214
6 7 / 1.04 3.12 1.0 1.8 29.1 3.08 1580
20 1.5 7 / 0.53 1.59 0.8 1.8 22.1 12.1 794
2.5 7 / 0.67 2.01 0.8 1.8 24.5 7.41 1039
4 7 / 0.85 2.55 1.0 1.8 29.5 4.61 1545
6 7 / 1.04 3.12 1.0 1.8 32.5 3.08 2024
30 1.5 7 / 0.53 1.59 0.8 1.8 26.3 12.1 1120
2.5 7 / 0.67 2.01 0.8 1.8 28.2 7.41 1480
4 7 / 0.85 2.55 1.0 1.9 35.6 4.61 2242
