JIS Industrial Cables

FCVV



Application and Description:

FCVV cables are used for supervisory electrical equipment, station control circuits, outdoor, suitable installation

in dry or wet cable trenches.

Reference Standard:

IEC 60502-1

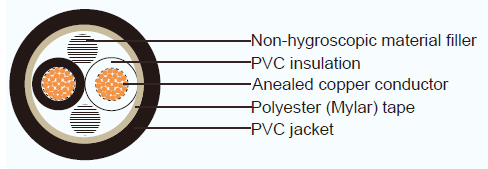

Cable Construction:

FCVV

Conductor: Flexible stranded annealed copper wires,

Sizes: 0.5 mm2 up to 6 mm2

Insulation: Polyvinyl chloride (PVC)

Color : 2-4 cores-Black, White, Red and Green ,

More than 4 cores: Black core with marking numbers

Filler: Non-hygroscopic material(optional)

Binding tape: Polyester (Mylar) tape (optional)

Sheath: Polyvinyl chloride (PVC), Black color (A special flame retardant can be supplied)

Technical Characteristics:

Maximum conductor temperature 70oC

Circuit voltage not exceeding 600 volts

Test voltage 3500 volts

Cable Parameter:

NO.OF CORE CONDUCTOR INSULATION THICKNESS SHEATH THICKNESS OVERALL DIAMETER MAXIMUM CONDUCTOR RESISTANCE (AT 20°C) MINIMUM INSULATION RESISTANCE (AT 70°C) CABLE WEIGHT
SIZE NO. & DIA. OF
WIRES		 DIAMETER
MM2 NO./MM MM MM MM MM OHM/KM OHM/KM KG/KM
2 0.5 16/0.20 0.92 0.6 0.9 7.5 39.0 0.0130 50
0.75 24/0.20 1.13 0.6 1.2 8.5 26.0 0.0114 70
1 32/0.20 1.31 0.6 1.2 8.7 19.5 0.0104 80
1.5 30/0.25 1.58 0.6 1.2 9.3 13.3 0.0089 100
2.5 50/0.25 2.04 0.7 1.2 10.5 7.98 0.0081 140
4 56/0.30 2.59 0.8 1.2 12.0 4.95 0.0076 190
6 84/0.30 3.6 0.8 1.4 14.0 3.30 0.0061 280
3 0.5 16/0.20 0.92 0.6 1.2 8.5 39.0 0.0130 70
0.75 24/0.20 1.13 0.6 1.2 8.9 26.0 0.0114 80
1 32/0.20 1.31 0.6 1.2 9.1 19.5 0.0104 100
1.5 30/0.25 1.58 0.6 1.2 9.8 13.3 0.0089 120
2.5 50/0.25 2.04 0.7 1.2 11.0 7.98 0.0081 170
4 56/0.30 2.59 0.8 1.2 13.0 4.95 0.0076 240
6 84/0.30 3.6 0.8 1.4 15.0 3.30 0.0061 350
4 0.5 16/0.20 0.92 0.6 1.2 9.1 39.0 0.0130 80
0.75 24/0.20 1.13 0.6 1.2 9.6 26.0 0.0114 100
1 32/0.20 1.31 0.6 1.2 9.8 19.5 0.0104 120
1.5 30/0.25 1.58 0.6 1.2 10.5 13.3 0.0089 140
2.5 50/0.25 2.04 0.7 1.2 12.0 7.98 0.0081 210
4 56/0.30 2.59 0.8 1.4 14.5 4.95 0.0076 320
6 84/0.30 3.6 0.8 1.4 16.5 3.30 0.0061 440
5 0.5 16/0.20 0.92 0.6 1.2 9.8 39.0 0.0130 100
0.75 24/0.20 1.13 0.6 1.2 10.0 26.0 0.0114 120
1 32/0.20 1.31 0.6 1.2 10.5 19.5 0.0104 140
1.5 30/0.25 1.58 0.6 1.2 11.5 13.3 0.0089 180
2.5 50/0.25 2.04 0.7 1.4 13.5 7.98 0.0081 270
4 56/0.30 2.59 0.8 1.4 15.5 4.95 0.0076 390
6 84/0.30 3.6 0.8 1.4 18.0 3.30 0.0061 540
6 0.5 16/0.20 0.92 0.6 1.2 10.5 39.0 0.0130 110
0.75 24/0.20 1.13 0.6 1.2 11.0 26.0 0.0114 130
1 32/0.20 1.31 0.6 1.2 11.5 19.5 0.0104 150
1.5 30/0.25 1.58 0.6 1.2 12.0 13.3 0.0089 190
2.5 50/0.25 2.04 0.7 1.4 14.5 7.98 0.0081 290
4 56/0.30 2.59 0.8 1.4 17.0 4.95 0.0076 430
6 84/0.30 3.6 0.8 1.4 19.5 3.30 0.0061 590
7 6 16/0.20 0.92 0.6 1.2 10.5 39.0 0.0130 110
0.75 24/0.20 1.13 0.6 1.2 11.0 26.0 0.0114 140
1 32/0.20 1.31 0.6 1.2 11.5 19.5 0.0104 160
1.5 30/0.25 1.58 0.6 1.2 12.0 13.3 0.0089 200
2.5 50/0.25 2.04 0.7 1.4 14.5 7.98 0.0081 320
4 56/0.30 2.59 0.8 1.4 17.0 4.95 0.0076 460
6 84/0.30 3.6 0.8 1.4 19.5 3.30 0.0061 640
8 0.5 16/0.20 0.92 0.6 1.2 11.0 39.0 0.0130 130
0.75 24/0.20 1.13 0.6 1.2 11.5 26.0 0.0114 160
1 32/0.20 1.31 0.6 1.2 12.0 19.5 0.0104 180
1.5 30/0.25 1.58 0.6 1.4 13.5 13.3 0.0089 240
2.5 50/0.25 2.04 0.7 1.4 16.0 7.98 0.0081 360
4 56/0.30 2.59 0.8 1.4 18.0 4.95 0.0076 520
6 84/0.30 3.6 0.8 1.4 21.0 3.30 0.0061 730
9 0.5 16/0.20 0.92 0.6 1.2 12.0 39.0 0.0130 140
0.75 24/0.20 1.13 0.6 1.2 12.5 26.0 0.0114 170
1 32/0.20 1.31 0.6 1.4 13.5 19.5 0.0104 220
1.5 30/0.25 1.58 0.6 1.4 14.5 13.3 0.0089 270
2.5 50/0.25 2.04 0.7 1.4 17.0 7.98 0.0081 400
4 56/0.30 2.59 0.8 1.4 20.0 4.95 0.0076 590
6 84/0.30 3.6 0.8 1.4 23.0 3.30 0.0061 830
10 0.5 16/0.20 0.92 0.6 1.2 12.5 39.0 0.0130 150
0.75 24/0.20 1.13 0.6 1.4 14.0 26.0 0.0114 200
1 32/0.20 1.31 0.6 1.4 14.5 19.5 0.0104 240
1.5 30/0.25 1.58 0.6 1.4 15.5 13.3 0.0089 300
2.5 50/0.25 2.04 0.7 1.4 18.0 7.98 0.0081 440
4 56/0.30 2.59 0.8 1.4 21.0 4.95 0.0076 640
6 84/0.30 3.6 0.8 1.8 25.0 3.30 0.0061 950
11 0.5 16/0.20 0.92 0.6 1.2 12.5 39.0 0.0130 170
0.75 24/0.20 1.13 0.6 1.4 14.0 26.0 0.0114 220
1 32/0.20 1.31 0.6 1.4 14.5 19.5 0.0104 260
1.5 30/0.25 1.58 0.6 1.4 15.5 13.3 0.0089 330
2.5 50/0.25 2.04 0.7 1.4 18.0 7.98 0.0081 490
4 56/0.30 2.59 0.8 1.4 21.0 4.95 0.0076 720
6 84/0.30 3.6 0.8 1.8 25.0 3.30 0.0061 1060
12 0.5 16/0.20 0.92 0.6 1.2 13.0 39.0 0.0130 170
0.75 24/0.20 1.13 0.6 1.4 14.5 26.0 0.0114 230
1 32/0.20 1.31 0.6 1.4 15.0 19.5 0.0104 270
1.5 30/0.25 1.58 0.6 1.4 16.0 13.3 0.0089 340
2.5 50/0.25 2.04 0.7 1.4 19.0 7.98 0.0081 510
4 56/0.30 2.59 0.8 1.4 22.0 4.95 0.0076 750
6 84/0.30 3.6 0.8 1.8 26.0 3.30 0.0061 1110
13 0.5 16/0.20 0.92 0.6 1.4 14.0 39.0 0.0130 200
0.75 24/0.20 1.13 0.6 1.4 15.0 26.0 0.0114 250
1 32/0.20 1.31 0.6 1.4 15.5 19.5 0.0104 300
1.5 30/0.25 1.58 0.6 1.4 17.0 13.3 0.0089 370
2.5 50/0.25 2.04 0.7 1.4 20.0 7.98 0.0081 560
4 56/0.30 2.59 0.8 1.4 23.0 4.95 0.0076 830
6 84/0.30 3.6 0.8 1.8 28.0 3.30 0.0061 1220
14 0.5 16/0.20 0.92 0.6 1.4 14.0 39.0 0.0130 210
0.75 24/0.20 1.13 0.6 1.4 15.0 26.0 0.0114 260
1 32/0.20 1.31 0.6 1.4 15.5 19.5 0.0104 300
1.5 30/0.25 1.58 0.6 1.4 17.0 13.3 0.0089 390
2.5 50/0.25 2.04 0.7 1.4 20.0 7.98 0.0081 580
4 56/0.30 2.59 0.8 1.4 23.0 4.95 0.0076 860
6 84/0.30 3.6 0.8 1.8 28.0 3.30 0.0061 1270
15 0.5 16/0.20 0.92 0.6 1.4 14.5 39.0 0.0130 230
0.75 24/0.20 1.13 0.6 1.4 15.5 26.0 0.0114 280
1 32/0.20 1.31 0.6 1.4 16.0 19.5 0.0104 330
1.5 30/0.25 1.58 0.6 1.4 17.5 13.3 0.0089 430
2.5 50/0.25 2.04 0.7 1.4 21.0 7.98 0.0081 640
4 56/0.30 2.59 0.8 1.8 25.0 4.95 0.0076 1000
6 84/0.30 3.6 0.8 1.8 29.0 3.30 0.0061 1390
16 0.5 16/0.20 0.92 0.6 1.4 15.0 39.0 0.0130 230
0.75 24/0.20 1.13 0.6 1.4 15.5 26.0 0.0114 290
1 32/0.20 1.31 0.6 1.4 16.0 19.5 0.0104 340
1.5 30/0.25 1.58 0.6 1.4 17.5 13.3 0.0089 440
2.5 50/0.25 2.04 0.7 1.4 21.0 7.98 0.0081 660
4 56/0.30 2.59 0.8 1.8 25.0 4.95 0.0076 1030
6 84/0.30 3.6 0.8 1.8 29.0 3.30 0.0061 1440
17 0.5 16/0.20 0.92 0.6 1.4 15.5 39.0 0.0130 260
0.75 24/0.20 1.13 0.6 1.4 16.5 26.0 0.0114 320
1 32/0.20 1.31 0.6 1.4 17.0 19.5 0.0104 370
1.5 30/0.25 1.58 0.6 1.4 18.5 13.3 0.0089 480
2.5 50/0.25 2.04 0.7 1.4 22.0 7.98 0.0081 720
4 56/0.30 2.59 0.8 1.8 27.0 4.95 0.0076 1120
6 84/0.30 3.6 0.8 1.8 31.0 3.30 0.0061 1570
18 0.5 16/0.20 0.92 0.6 1.4 15.5 39.0 0.0130 260
0.75 24/0.20 1.13 0.6 1.4 16.5 26.0 0.0114 320
1 32/0.20 1.31 0.6 1.4 17.0 19.5 0.0104 380
1.5 30/0.25 1.58 0.6 1.4 18.5 13.3 0.0089 490
2.5 50/0.25 2.04 0.7 1.4 22.0 7.98 0.0081 740
4 56/0.30 2.59 0.8 1.8 27.0 4.95 0.0076 1150

6

84/0.30

3.6

0.8

1.8

31.0

3.30

0.0061

1620
19 0.5 16/0.20 0.92 0.6 1.4 15.5 39.0 0.0130 260
0.75 24/0.20 1.13 0.6 1.4 16.5 26.0 0.0114 330
1 32/0.20 1.31 0.6 1.4 17.0 19.5 0.0104 390
1.5 30/0.25 1.58 0.6 1.4 18.5 13.3 0.0089 500
2.5 50/0.25 2.04 0.7 1.4 22.0 7.98 0.0081 760
4 56/0.30 2.59 0.8 1.8 27.0 4.95 0.0076 1190
6 84/0.30 3.6 0.8 1.8 31.0 3.30 0.0061 1670
20 0.5 16/0.20 0.92 0.6 1.4 16.0 39.0 0.0130 290
0.75 24/0.20 1.13 0.6 1.4 17.0 26.0 0.0114 360
1 32/0.20 1.31 0.6 1.4 17.5 19.5 0.0104 420
1.5 30/0.25 1.58 0.6 1.4 19.0 13.3 0.0089 540
2.5 50/0.25 2.04 0.7 1.4 23.0 7.98 0.0081 820
4 56/0.30 2.59 0.8 1.8 28.0 4.95 0.0076 1280
6 84/0.30 3.6 0.8 1.8 32.0 3.30 0.0061 1800
21 0.5 16/0.20 0.92 0.6 1.4 16.5 39.0 0.0130 290
0.75 24/0.20 1.13 0.6 1.4 17.5 26.0 0.0114 360
1 32/0.20 1.31 0.6 1.4 18.0 19.5 0.0104 430
1.5 30/0.25 1.58 0.6 1.4 19.5 13.3 0.0089 550
2.5 50/0.25 2.04 0.7 1.4 23.0 7.98 0.0081 840
4 56/0.30 2.59 0.8 1.8 28.0 4.95 0.0076 1300
6 84/0.30 3.6 0.8 1.8 32.0 3.30 0.0061 1840
22 0.5 16/0.20 0.92 0.6 1.4 17.0 39.0 0.0130 310
0.75 24/0.20 1.13 0.6 1.4 18.0 26.0 0.0114 390
1 32/0.20 1.31 0.6 1.4 18.5 19.5 0.0104 470
1.5 30/0.25 1.58 0.6 1.4 20.0 13.3 0.0089 600
2.5 50/0.25 2.04 0.7 1.8 25.0 7.98 0.0081 950
4 56/0.30 2.59 0.8 1.8 30.0 4.95 0.0076 1410
6 84/0.30 3.6 0.8 1.8 34.0 3.30 0.0061 1980
23 0.5 16/0.20 0.92 0.6 1.4 17.0 39.0 0.0130 310
0.75 24/0.20 1.13 0.6 1.4 18.0 26.0 0.0114 390
1 32/0.20 1.31 0.6 1.4 18.5 19.5 0.0104 470
1.5 30/0.25 1.58 0.6 1.4 20.0 13.3 0.0089 600
2.5 50/0.25 2.04 0.7 1.8 25.0 7.98 0.0081 960
4 56/0.30 2.59 0.8 1.8 30.0 4.95 0.0076 1430
6 84/0.30 3.6 0.8 1.8 34.0 3.30 0.0061 2010
24 0.5 16/0.20 0.92 0.6 1.4 18.0 39.0 0.0130 330
0.75 24/0.20 1.13 0.6 1.4 19.0 26.0 0.0114 410
1 32/0.20 1.31 0.6 1.4 19.5 19.5 0.0104 490
1.5 30/0.25 1.58 0.6 1.4 21.0 13.3 0.0089 620
2.5 50/0.25 2.04 0.7 1.8 26.0 7.98 0.0081 1000
4 56/0.30 2.59 0.8 1.8 31.0 4.95 0.0076 1480
6 84/0.30 3.6 0.8 2.2 37.0 3.30 0.0061 2160
25 0.5 16/0.20 0.92 0.6 1.4 18.0 39.0 0.0130 350
0.75 24/0.20 1.13 0.6 1.4 19.0 26.0 0.0114 430
1 32/0.20 1.31 0.6 1.4 19.5 19.5 0.0104 520
1.5 30/0.25 1.58 0.6 1.4 21.0 13.3 0.0089 660
2.5 50/0.25 2.04 0.7 1.8 26.0 7.98 0.0081 1060
4 56/0.30 2.59 0.8 1.8 31.0 4.95 0.0076 1580
6 84/0.30 3.6 0.8 2.2 37.0 3.30 0.0061 2290
26 0.5 16/0.20 0.92 0.6 1.4 18.0 39.0 0.0130 350
0.75 24/0.20 1.13 0.6 1.4 19.0 26.0 0.0114 440
1 32/0.20 1.31 0.6 1.4 19.5 19.5 0.0104 530
1.5 30/0.25 1.58 0.6 1.4 21.0 13.3 0.0089 680
2.5 50/0.25 2.04 0.7 1.8 26.0 7.98 0.0081 1080
4 56/0.30 2.59 0.8 1.8 31.0 4.95 0.0076 1610
6 84/0.30 3.6 0.8 2.2 37.0 3.30 0.0061 2340
27 0.5 16/0.20 0.92 0.6 1.4 18.5 39.0 0.0130 360
0.75 24/0.20 1.13 0.6 1.4 19.5 26.0 0.0114 450
1 32/0.20 1.31 0.6 1.4 20.0 19.5 0.0104 530
1.5 30/0.25 1.58 0.6 1.4 22.0 13.3 0.0089 690
2.5 50/0.25 2.04 0.7 1.8 27.0 7.98 0.0081 1100
4 56/0.30 2.59 0.8 1.8 32.0 4.95 0.0076 1640
6 84/0.30 3.6 0.8 2.2 38.0 3.30 0.0061 2390
28 0.5 16/0.20 0.92 0.6 1.4 19.0 39.0 0.0130 380
0.75 24/0.20 1.13 0.6 1.4 20.0 26.0 0.0114 480
1 32/0.20 1.31 0.6 1.4 21.0 19.5 0.0104 570
1.5 30/0.25 1.58 0.6 1.4 23.0 13.3 0.0089 730
2.5 50/0.25 2.04 0.7 1.8 28.0 7.98 0.0081 1170
4 56/0.30 2.59 0.8 1.8 33.0 4.95 0.0076 1740
6 84/0.30 3.6 0.8 2.2 39.0 3.30 0.0061 2530
29 0.5 16/0.20 0.92 0.6 1.4 19.0 39.0 0.0130 380
0.75 24/0.20 1.13 0.6 1.4 20.0 26.0 0.0114 480
1 32/0.20 1.31 0.6 1.4 21.0 19.5 0.0104 580
1.5 30/0.25 1.58 0.6 1.4 23.0 13.3 0.0089 740
2.5 50/0.25 2.04 0.7 1.8 28.0 7.98 0.0081 1190
4 56/0.30 2.59 0.8 1.8 33.0 4.95 0.0076 1780
6 84/0.30 3.6 0.8 2.2 39.0 3.30 0.0061 2580

  30		 0.5 16/0.20 0.92 0.6 1.4 19.0 39.0 0.0130 390
0.75 24/0.20 1.13 0.6 1.4 20.0 26.0 0.0114 490
1 32/0.20 1.31 0.6 1.4 21.0 19.5 0.0104 580
1.5 30/0.25 1.58 0.6 1.4 23.0 13.3 0.0089 760
2.5 50/0.25 2.04 0.7 1.8 28.0 7.98 0.0081 1210
4 56/0.30 2.59 0.8 1.8 33.0 4.95 0.0076 1810
6 84/0.30 3.6 0.8 2.2 39.0 3.30 0.0061 2630
31 0.5 16/0.20 0.92 0.6 1.4 19.5 39.0 0.0130 410
0.75 24/0.20 1.13 0.6 1.4 21.0 26.0 0.0114 520
1 32/0.20 1.31 0.6 1.4 22.0 19.5 0.0104 620
1.5 30/0.25 1.58 0.6 1.8 24.0 13.3 0.0089 850
2.5 50/0.25 2.04 0.7 1.8 29.0 7.98 0.0081 1280
4 56/0.30 2.59 0.8 1.8 34.0 4.95 0.0076 1920
6 84/0.30 3.6 0.8 2.2 41.0 3.30 0.0061 2780
32 0.5 16/0.20 0.92 0.6 1.4 19.5 39.0 0.0130 420
0.75 24/0.20 1.13 0.6 1.4 21.0 26.0 0.0114 530
1 32/0.20 1.31 0.6 1.4 22.0 19.5 0.0104 630
1.5 30/0.25 1.58 0.6 1.8 24.0 13.3 0.0089 860
2.5 50/0.25 2.04 0.7 1.8 29.0 7.98 0.0081 1300
4 56/0.30 2.59 0.8 1.8 34.0 4.95 0.0076 1950
6 84/0.30 3.6 0.8 2.2 41.0 3.30 0.0061 2830
33 0.5 16/0.20 0.92 0.6 1.4 19.5 39.0 0.0130 420
0.75 24/0.20 1.13 0.6 1.4 21.0 26.0 0.0114 530
1 32/0.20 1.31 0.6 1.4 22.0 19.5 0.0104 640
1.5 30/0.25 1.58 0.6 1.8 24.0 13.3 0.0089 870
2.5 50/0.25 2.04 0.7 1.8 29.0 7.98 0.0081 1330
4 56/0.30 2.59 0.8 1.8 34.0 4.95 0.0076 1980
6 84/0.30 3.6 0.8 2.2 41.0 3.30 0.0061 2880
34 0.5 16/0.20 0.92 0.6 1.4 20.0 39.0 0.0130 450
0.75 24/0.20 1.13 0.6 1.4 21.0 26.0 0.0114 570
1 32/0.20 1.31 0.6 1.4 22.0 19.5 0.0104 680
1.5 30/0.25 1.58 0.6 1.8 25.0 13.3 0.0089 920
2.5 50/0.25 2.04 0.7 1.8 30.0 7.98 0.0081 1400
4 56/0.30 2.59 0.8 2.2 37.0 4.95 0.0076 2160
6 84/0.30 3.6 0.8 2.2 42.0 3.30 0.0061 3030
35 0.5 16/0.20 0.92 0.6 1.4 20.0 39.0 0.0130 450
0.75 24/0.20 1.13 0.6 1.4 21.0 26.0 0.0114 570
1 32/0.20 1.31 0.6 1.4 22.0 19.5 0.0104 680
1.5 30/0.25 1.58 0.6 1.8 25.0 13.3 0.0089 930
2.5 50/0.25 2.04 0.7 1.8 30.0 7.98 0.0081 1420
4 56/0.30 2.59 0.8 2.2 37.0 4.95 0.0076 2190
6 84/0.30 3.6 0.8 2.2 42.0 3.30 0.0061 3080
36 0.5 16/0.20 0.92 0.6 1.4 20.0 39.0 0.0130 460
0.75 24/0.20 1.13 0.6 1.4 21.0 26.0 0.0114 580
1 32/0.20 1.31 0.6 1.4 22.0 19.5 0.0104 690
1.5 30/0.25 1.58 0.6 1.8 25.0 13.3 0.0089 950
2.5 50/0.25 2.04 0.7 1.8 30.0 7.98 0.0081 1440
4 56/0.30 2.59 0.8 2.2 37.0 4.95 0.0076 2220
6 84/0.30 3.6 0.8 2.2 42.0 3.30 0.0061 3140
37 0.5 16/0.20 0.92 0.6 1.4 20.0 39.0 0.0130 460
0.75 24/0.20 1.13 0.6 1.4 21.0 26.0 0.0114 590
1 32/0.20 1.31 0.6 1.4 22.0 19.5 0.0104 700
1.5 30/0.25 1.58 0.6 1.8 25.0 13.3 0.0089 960
2.5 50/0.25 2.04 0.7 1.8 30.0 7.98 0.0081 1460
4 56/0.30 2.59 0.8 2.2 37.0 4.95 0.0076 2260
6 84/0.30 3.6 0.8 2.2 42.0 3.30 0.0061 3190
38 0.5 16/0.20 0.92 0.6 1.4 21.0 39.0 0.0130 490
0.75 24/0.20 1.13 0.6 1.4 22.0 26.0 0.0114 620
1 32/0.20 1.31 0.6 1.4 23.0 19.5 0.0104 740
1.5 30/0.25 1.58 0.6 1.8 26.0 13.3 0.0089 1010
2.5 50/0.25 2.04 0.7 1.8 31.0 7.98 0.0081 1540
4 56/0.30 2.59 0.8 2.2 38.0 4.95 0.0076 2370
6 84/0.30 3.6 0.8 2.2 44.0 3.30 0.0061 3340
39 0.5 16/0.20 0.92 0.6 1.4 21.0 39.0 0.0130 490
0.75 24/0.20 1.13 0.6 1.4 22.0 26.0 0.0114 620
1 32/0.20 1.31 0.6 1.4 23.0 19.5 0.0104 750
1.5 30/0.25 1.58 0.6 1.8 26.0 13.3 0.0089 1020
2.5 50/0.25 2.04 0.7 1.8 31.0 7.98 0.0081 1560
4 56/0.30 2.59 0.8 2.2 38.0 4.95 0.0076 2400
6 84/0.30 3.6 0.8 2.2 44.0 3.30 0.0061 3390
40 0.5 16/0.20 0.92 0.6 1.4 21.0 39.0 0.0130 500
0.75 24/0.20 1.13 0.6 1.4 22.0 26.0 0.0114 630
1 32/0.20 1.31 0.6 1.4 23.0 19.5 0.0104 750
1.5 30/0.25 1.58 0.6 1.8 26.0 13.3 0.0089 1030
2.5 50/0.25 2.04 0.7 1.8 31.0 7.98 0.0081 1570
4 56/0.30 2.59 0.8 2.2 38.0 4.95 0.0076 2430
6 84/0.30 3.6 0.8 2.2 44.0 3.30 0.0061 3430
41 0.5 16/0.20 0.92 0.6 1.4 22.0 39.0 0.0130 530
0.75 24/0.20 1.13 0.6 1.4 23.0 26.0 0.0114 670
1 32/0.20 1.31 0.6 1.8 25.0 19.5 0.0104 850
1.5 30/0.25 1.58 0.6 1.8 27.0 13.3 0.0089 1100
2.5 50/0.25 2.04 0.7 1.8 33.0 7.98 0.0081 1670
4 56/0.30 2.59 0.8 2.2 40.0 4.95 0.0076 2580
6 84/0.30 3.6 0.8 2.2 46.0 3.30 0.0061 3630
42 0.5 16/0.20 0.92 0.6 1.4 22.0 39.0 0.0130 540
0.75 24/0.20 1.13 0.6 1.4 23.0 26.0 0.0114 680
1 32/0.20 1.31 0.6 1.8 25.0 19.5 0.0104 860
1.5 30/0.25 1.58 0.6 1.8 27.0 13.3 0.0089 1110
2.5 50/0.25 2.04 0.7 1.8 33.0 7.98 0.0081 1690
4 56/0.30 2.59 0.8 2.2 40.0 4.95 0.0076 2610
6 84/0.30 3.6 0.8 2.2 46.0 3.30 0.0061 3680
43 0.5 16/0.20 0.92 0.6 1.4 22.0 39.0 0.0130 540
0.75 24/0.20 1.13 0.6 1.4 23.0 26.0 0.0114 680
1 32/0.20 1.31 0.6 1.8 25.0 19.5 0.0104 860
1.5 30/0.25 1.58 0.6 1.8 27.0 13.3 0.0089 1120
2.5 50/0.25 2.04 0.7 1.8 33.0 7.98 0.0081 1700
4 56/0.30 2.59 0.8 2.2 40.0 4.95 0.0076 2620
6 84/0.30 3.6 0.8 2.2 46.0 3.30 0.0061 3700
44 0.5 16/0.20 0.92 0.6 1.4 22.0 39.0 0.0130 540
0.75 24/0.20 1.13 0.6 1.4 24.0 26.0 0.0114 690
1 32/0.20 1.31 0.6 1.8 26.0 19.5 0.0104 870
1.5 30/0.25 1.58 0.6 1.8 28.0 13.3 0.0089 1130
2.5 50/0.25 2.04 0.7 1.8 34.0 7.98 0.0081 1720
4 56/0.30 2.59 0.8 2.2 41.0 4.95 0.0076 2660
6 84/0.30 3.6 0.8 2.6 48.0 3.30 0.0061 3860
45 0.5 16/0.20 0.92 0.6 1.4 22.0 39.0 0.0130 580
0.75 24/0.20 1.13 0.6 1.4 24.0 26.0 0.0114 730
1 32/0.20 1.31 0.6 1.8 26.0 19.5 0.0104 920
1.5 30/0.25 1.58 0.6 1.8 28.0 13.3 0.0089 1190
2.5 50/0.25 2.04 0.7 1.8 34.0 7.98 0.0081 1820
4 56/0.30 2.59 0.8 2.2 41.0 4.95 0.0076 2810
6 84/0.30 3.6 0.8 2.6 48.0 3.30 0.0061 4050
46 0.5 16/0.20 0.92 0.6 1.4 22.0 39.0 0.0130 570
0.75 24/0.20 1.13 0.6 1.4 24.0 26.0 0.0114 730
1 32/0.20 1.31 0.6 1.8 26.0 19.5 0.0104 920
1.5 30/0.25 1.58 0.6 1.8 28.0 13.3 0.0089 1190
2.5 50/0.25 2.04 0.7 1.8 34.0 7.98 0.0081 1820
4 56/0.30 2.59 0.8 2.2 41.0 4.95 0.0076 2810
6 84/0.30 3.6 0.8 2.6 48.0 3.30 0.0061 4060
47 0.5 16/0.20 0.92 0.6 1.4 22.0 39.0 0.0130 580
0.75 24/0.20 1.13 0.6 1.4 24.0 26.0 0.0114 730
1 32/0.20 1.31 0.6 1.8 26.0 19.5 0.0104 930
1.5 30/0.25 1.58 0.6 1.8 28.0 13.3 0.0089 1200
2.5 50/0.25 2.04 0.7 1.8 34.0 7.98 0.0081 1840
4 56/0.30 2.59 0.8 2.2 41.0 4.95 0.0076 2850
6 84/0.30 3.6 0.8 2.6 48.0 3.30 0.0061 4120
48 0.5 16/0.20 0.92 0.6 1.4 23.0 39.0 0.0130 580
0.75 24/0.20 1.13 0.6 1.8 25.0 26.0 0.0114 790
1 32/0.20 1.31 0.6 1.8 26.0 19.5 0.0104 940
1.5 30/0.25 1.58 0.6 1.8 29.0 13.3 0.0089 1210
2.5 50/0.25 2.04 0.7 1.8 34.0 7.98 0.0081 1860
4 56/0.30 2.59 0.8 2.2 42.0 4.95 0.0076 2880
6 84/0.30 3.6 0.8 2.6 49.0 3.30 0.0061 4170
