VVR-GRD



Application and Description:

VVR-GRD cables are use for exposed wiring in air or use raceway, dry location.

Reference Standard:

TIS 11-2531

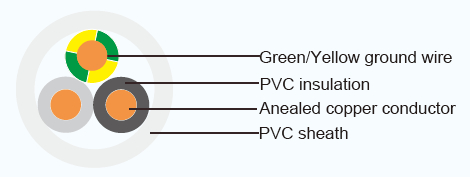

Cable Construction:

VVR-GRD

Conductor: Solid and stranded annealed copper,

Sizes: 1 mm2 up to 35 mm2

Insulation: Polyvinyl chloride (PVC)

Color : Light grey, Black,

Ground core:Green/Yellow

Sheath: Polyvinyl chloride (PVC), white color

Technical Characteristics:

Maximum conductor temperature 70oC

Circuit voltage not exceeding 750 volts

Test voltage 2500 volts

Cable Parameter:

NO. OF CORE CONDUCTOR GROUND CONDUCTOR THICK- NESS OF
SHEATH		 OVERALL DIAMETER MAXIMUM
CONTINUOUS CURRENT RATING IN FREE AIR		 MINIMUM INSULATION RESISTANCE (AT 70°C) CABLE WEIGHT
SIZE NO.& DIA. OF WIRES THICKNESS OF INSULATION SIZE NO.& DIA. OF
WIRES		 THICKNESS OF INSULATION
MM2 NO./MM MM MM2 NO./MM MM MM MM A MOHM-KM KG/KM
2+1 1 1/1.13 0.6 1 1/1.13 0.6 0.9 8 15 0.0115 80
2+1 1 7/0.40 0.6 1 7/0.40 0.6 0.9 8.4 15 0.011 80
2+1 1.5 1/1.38 0.6 1 1/1.13 0.6 1.2 9.2 20 0.01 100
2+1 1.5 7/0.50 0.6 1 7/0.40 0.6 1.2 9.6 20 0.0094 100
2+1 2.5 1/1.78 0.7 1.5 1/1.38 0.6 1.2 10.5 25 0.0092 140
2+1 2.5 7/0.67 0.7 1.5 7/0.50 0.6 1.2 11.5 25 0.0084 140
2+1 4 1/2.25 0.8 2.5 1/1.78 0.6 1.2 12.5 33 0.0086 200
2+1 4 7/0.85 0.8 2.5 7/0.67 0.6 1.2 13 33 0.0078 200
2+1 6 7/1.04 0.8 4 7/0.85 0.6 1.2 14.5 45 0.0066 290
2+1 10 7/1.35 0.9 4 7/0.85 0.6 1.2 16 62 0.0059 410
2+1 16 7/1.70 1 6 7/1.04 0.6 1.4 19 81 0.0053 610
2+1 25 7/2.14 1.2 6 7/1.04 0.6 1.4 22.5 109 0.0051 880
2+1 35 19/1.53 1.2 10 7/1.35 0.6 1.4 25.5 134 0.0043 1176
3+1 1 1/1.13 0.6 1 1/1.13 0.6 0.9 8.6 13 0.0115 95
3+1 1 7/0.40 0.6 1 7/0.40 0.6 0.9 9 13 0.011 95
3+1 1.5 1/1.38 0.6 1 1/1.13 0.6 1.2 10 17 0.01 130
3+1 1.5 7/0.50 0.6 1 7/0.40 0.6 1.2 10.5 17 0.0094 130
3+1 2.5 1/1.78 0.7 1.5 1/1.38 0.6 1.2 11.5 21 0.0092 180
3+1 2.5 7/0.67 0.7 1.5 7/0.50 0.6 1.2 12.5 21 0.0084 180
3+1 4 1/2.25 0.8 2.5 1/1.78 0.6 1.2 13.5 30 0.0086 260
3+1 4 7/0.85 0.8 2.5 7/0.67 0.6 1.2 14 30 0.0078 260
3+1 6 7/1.04 0.8 4 7/0.85 0.6 1.2 15.5 38 0.0066 370
3+1 10 7/1.35 0.9 4 7/0.85 0.6 1.2 18.5 53 0.0059 530
3+1 16 7/1.70 1 6 7/1.04 0.6 1.4 22 71 0.0053 800
3+1 25 7/2.14 1.2 6 7/1.04 0.6 1.8 27.5 93 0.0051 1220
3+1 35 19/1.53 1.2 10 7/1.35 0.6 1.8 30.5 113 0.0043 1610
4+1 1 1/1.13 0.6 1 1/1.13 0.6 0.9 9.2 12 0.0115 110
4+1 1 7/0.40 0.6 1 7/0.40 0.6 0.9 9.8 12 0.011 110
4+1 1.5 1/1.38 0.6 1 1/1.13 0.6 1.2 11 15 0.01 150
4+1 1.5 7/0.50 0.6 1 7/0.40 0.6 1.2 11.5 15 0.0094 150
4+1 2.5 1/1.78 0.7 1.5 1/1.38 0.6 1.2 12.5 19 0.0092 220
4+1 2.5 7/0.67 0.7 1.5 7/0.50 0.6 1.2 13.5 19 0.0084 220
4+1 4 1/2.25 0.8 2.5 1/1.78 0.6 1.2 14.5 27 0.0086 330
4+1 4 7/0.85 0.8 2.5 7/0.67 0.6 1.2 15.5 27 0.0078 330
4+1 6 7/1.04 0.8 4 7/0.85 0.6 1.2 17 37 0.0066 470
4+1 10 7/1.35 0.9 4 7/0.85 0.6 1.4 20.5 49 0.0059 700
4+1 16 7/1.70 1 6 7/1.04 0.6 1.4 24.5 64 0.0053 1030
4+1 25 7/2.14 1.2 6 7/1.04 0.6 1.8 30 84 0.0051 1570
4+1 35 19/1.53 1.2 10 7/1.35 0.6 1.8 33.5 102 0.0043 2070
