Industrial Cables
N2XFGY/ NA2XFGY
Application and DescriptionS
N2XFGY/ NA2XFGY cables are for lying in earth, indoors, in ducts, in the open air, in the water, when additional
mechanical protection is required when cable is exposed to mechanical tensile strain during laying and use. For
use in mines ac-cording to Technical standards for electrical plants, equipments and installations in mines, as
well as hori-zontal and vertical installation in places where there is a height difference in mines, including
methane holes.
Standard and Approval
IEC 60502-1, VDE 0276-603

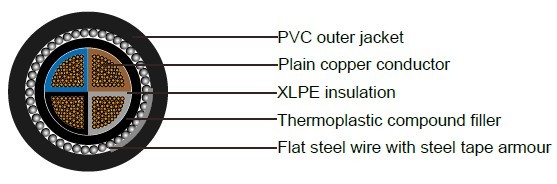

Cable Construction
Stranded plain copper/aluminum conductor
to DIN VDE 0295 cl. 2, IEC 60228 cl. 2
Cross-linked polyethylene 2XI1 acc. to VDE 0276-603
Color coded to DIN VDE 0293(HD 308)
Thermoplastic compound filler
Flat steel wire with steel tape armour
PVC outer jacket DMV5 to HD 603.1
Technical Characteristics
Working voltage: 600/1000 volts
Test voltage: 3500 volts
Minimum bending radius: 12 x Ø
Flexing temperature: -5º C to +70º C
Fixed installation temperature: - 30º C to +70º C
Short circuit temperature: +250º C
Flame retardant: IEC 60332.1
Insulation resistance: >20 MΩ x km
Cable Parameter
| AWG | NO. OF CORES X NOMINAL CROSS SECTIONAL AREA # X MM² |
CONDUCTOR TYPE |
NOMINAL OVERALL DIAMETER MM |
COPPER WEIGHT KG / KM | COPPER CABLE WEIGHT KG / KM |
AL WEIGHT KG / KM | AL CABLE WEIGHT KG / KM |
| 4 | 3x25 | rm | 25,5 | 720 | 1617 | 218 | 1149 |
| 2 | 3x35 | rm | 28,0 | 1008 | 2010 | 305 | 1354 |
| 1 | 3x50 | sm | 28,0 | 1440 | 2210 | 435 | 1309 |
| 2/0 | 3x70 | sm | 31,5 | 2016 | 2925 | 609 | 1628 |
| 3/0 | 3x95 | sm | 35,0 | 2736 | 3835 | 827 | 2023 |
| 4/0 | 3x120 | sm | 38,0 | 3456 | 4662 | 1044 | 2367 |
| 300mcm | 3x150 | sm | 42,0 | 4320 | 5586 | 1305 | 2787 |
| 350mcm | 3x185 | sm | 46,5 | 5328 | 6900 | 1610 | 3372 |
| 500mcm | 3x240 | sm | 51,5 | 6912 | 8732 | 2088 | 4057 |
| 4 | 3x25+16 | rm | 26,5 | 874 | 1807 | 263 | 1230 |
| 2 | 3x35+16 | rm | 29,0 | 1162 | 2193 | 351 | 1426 |
| 1 | 3x50+25 | sm | 31,0 | 1680 | 2593 | 507 | 1534 |
| 2/0 | 3x70+35 | sm | 35,5 | 2352 | 3476 | 711 | 1958 |
| 3/0 | 3x95+50 | sm | 38,5 | 3216 | 4461 | 972 | 2350 |
| 4/0 | 3x120+70 | sm | 42,0 | 4128 | 5494 | 1247 | 2766 |
| 300mcm | 3X150+70 | sm | 47,0 | 4992 | 6586 | 1508 | 3339 |
| 350mcm | 3X185+95 | sm | 51,0 | 6240 | 8095 | 1886 | 3962 |
| 500mcm | 3X240+120 | sm | 58,0 | 8064 | 10400 | 2436 | 4964 |
| 10 | 4x6 | rm | 18,0 | 230 | 753 | 70 | 603 |
| 8 | 4x10 | rm | 20,0 | 384 | 1006 | 116 | 755 |
| 6 | 4x16 | rm | 23,5 | 614 | 1374 | 186 | 910 |
| 4 | 4x25 | rm | 28,0 | 960 | 1946 | 290 | 1319 |
| 2 | 4x35 | rm | 30,5 | 1344 | 2447 | 406 | 1572 |
| 1 | 4x50 | sm | 31,0 | 1920 | 2780 | 580 | 1574 |
| 2/0 | 4x70 | sm | 35,0 | 2688 | 3729 | 812 | 1992 |
| 3/0 | 4x95 | sm | 38,5 | 3648 | 4870 | 1102 | 2440 |
| 4/0 | 4x120 | sm | 41,5 | 4608 | 5949 | 1392 | 2873 |
| 300mcm | 4x150 | sm | 47,0 | 5760 | 7264 | 1740 | 3513 |
| 350mcm | 4x185 | sm | 51,0 | 7104 | 8878 | 2148 | 4147 |
| 500mcm | 4x240 | sm | 58,0 | 9216 | 11436 | 2784 | 5170 |
| 10 | 5x6 | rm | 19,5 | 288 | 837 | 88 | 686 |
| 8 | 5x10 | rm | 21,5 | 480 | 1170 | 145 | 857 |
| 6 | 5x16 | rm | 25,5 | 768 | 1628 | 233 | 1057 |
| 4 | 5x25 | rm | 30,0 | 1200 | 2325 | 363 | 1570 |
