U-1000 AR2V



Application and Description

These cables for energy distribution are suitable for all types of low voltage industrial-type connection, in urban

grids, building installations, etc.

Particularly suited in cases of high operating temperature and when high resistance to solar radiation and

atmospheric agents is required. Good resistance to low temperature and chemical agents.

Can be used without additional mechanical protection in the open air, fixed to walls or in raceways, inside

walkways, and in empty in Cable Constructions in general. Can be laid underground with mechanical protection

constructed from slabs, tiles, or bricks.

They are not recommend to lay this cable in ground flooded for more than two months per year. With

appropriate mechanical protection it can be use in areas subject to risk of explosion, but in this case the

permitted current load is reduced by 15%. It can be used in ambient temperature down to -25°C.

Standard and Approval

NF C 32-321

EN 60332-1/NF C 32-070

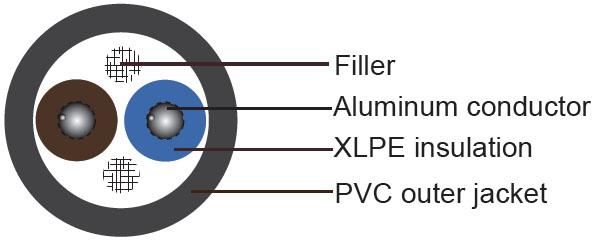

Cable Construction

Flexible aluminum strands

Strands to IEC 60228 class 2

XLPE insulation according to XP C 32-321

Color codes to XP C 32-321

Not fibrous and not hygroscopic filler

Flexible black PVC outer jacket

Technical Characteristics


Working Voltage

600/1000 volts

Test voltage

1200 volts

Minimum bending radius

6 x O

Operation temperature range

-10 °C to 60 °C

Short-circuit temperature

250 °C

Flame retardant

NF C 32-070 C2

Insulation resistance

20 MΩ x km

Cable Parameter


AWG

Cross Section

Insulation thickness

Minimum Sheath thickness

Maximum Overall diameter

Approx Cable weight



mm^2

mm

mm

mm

kg/km

2

1x35

0.9

1.09

13.5

190

1

1x50

1

1.09

15

245

2/0

1x70

1.1

1.09

17

325

3/0

1x95

1.1

1.18

19

425

4/0

1x120

1.2

1.18

21

520

300MCM

1x150

1.4

1.26

23

630

500MCM

1x185

1.6

1.26

25.5

780

750MCM

1x240

1.7

1.35

28.5

990

-

1x300

1.8

1.43

31

1210

-

1x400

2

1.52

34.2

1510

-

1x500

2.2

1.6

38

1860

-

1x630

2.4

1.77

44

2400

8

2x10

0.7

1.43

16,0

275

6

2x16

0.7

1.43

18,5

360

4

2x25

0.9

1.43

22,0

530

2

2x35

0.9

1.43

24,5

640

8

3x10

0.7

1.43

17,0

300

6

3x16

0.7

1.43

19,5

400

4

3x25

0.9

1.43

23,5

600

2

3x35

0.9

1.43

26,0

750

1

3x50

1

1.43

29,0

970

2/0

3x70

1.1

1.52

34,0

1310

3/0

3x95

1.1

1.6

38,5

1730

4/0

3x120

1.2

1.69

42,5

2120

300MCM

3x150

1.4

1.86

47,5

2640

500MCM

3x185

1.6

1.94

53,0

3290

750MCM

3x240

1.7

2.11

59,5

4210

3x300

1.8

2.28

66,0

5210

4

4x25

0.9

1.43

25,5

720

2

4x35

0.9

1.43

28,5

910

1

3x50+35

1

1.52

31,1

1130

2/0

3x70+50

1.1

1.6

36,2

1540

3/0

3x95+50

1.1

1.69

40,6

1940

4/0

3x120+70

1.2

1.86

45,4

2430

300MCM

3x150+70

1.4

1.94

49,5

2890

500MCM

3x185+70

1.6

2.11

54,4

3660

750MCM

3x240+95

1.7

2.28

61,5

4680
