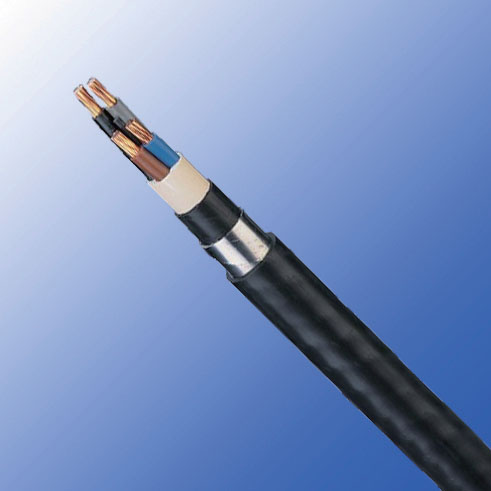

U-1000 RVFV



APPLICATION AND DESCRIPTION

With a sheath and armor, U-1000 RVFV is an enhanced version of the cables and U-1000 R2V They are suitable

for direct burial without extra mechanical protection, fixed to the walls, laid on cable trays or raceways. May also

be suitable for use in premises which poses a risk of explosion (rank BE3 NF C 15-100) with mechanical

protection is necessary and in this case the intensity must be reduced by 15%.

STANDARD AND APPROVAL

XP C 32-322

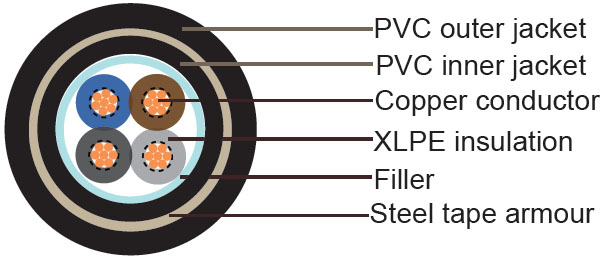

CABLE CONSTRUCTION

Flexible copper strands

Strands to IEC 60228 class 2

XLPE insulation according to XP C 32-321

Color codes to HD 308 S2(XP C32-321)

Not fibrous and not hygroscopic filler(only for multicore cables)

PVC inner jacket

Two steel tapes helically wraped armour

Flexible black PVC outer jacket

TECHNICAL CHARACTERISTICS

Working Voltage : 600/1000 volts

Test voltage : 3500 volts

Minimum bending radius : 10 x Ø

Operation temperature rage : -10 °C to 90 °C

Short-circuit temperature : 250 °C

Flame retardant : EN 60332-1/NF C 32-070 C2

CABLE PARAMETER

AWG

Cross Section

Insulation Thickness

Amour Thickness

Minimum Sheath Thickness

Maximum Overall Diameter

Approx. Cable Weight

mm²

mm

mm

mm

mm

kg/km

16

2x1.5

0.7

0.2

1.3

11.5

230

14

2x2.5

0.7

0.2

1.3

12.5

275

12

2x4

0.7

0.2

1.4

13.5

330

10

2x6

0.7

0.2

1.4

15.5

430

8

2x10

0.7

0.2

1.4

16.5

555

6

2x16

0.7

0.2

1.5

19

770

4

2x25

0.9

0.2

1.6

22.5

1080

2

2x35

0.9

0.2

1.7

25

1390

16

3x1.5

0.7

0.2

1.3

12

255

14

3x2.5

0.7

0.2

1.3

13

305

12

3x4

0.7

0.2

1.4

14

380

10

3x6

0.7

0.2

1.4

16

500

8

3x10

0.7

0.2

1.5

17.5

665

6

3x16

0.7

0.2

1.5

20

930

4

3x25

0.9

0.2

1.6

24

1325

2

3x35

0.9

0.2

1.7

26.5

1720

1

3x50

0.9

0.2

1.8

29

2125

2/0

3x70

1.1

0.2

2

34.5

3080

3/0

3x95

1.1

0.5

2.1

40

4505

4/0

3x120

1.2

0.5

2.3

44.5

5540

300MCM

3x150

1.4

0.5

2.4

48.5

6655

500MCM

3x185

1.6

0.5

2.5

53.5

8150

750MCM

3x240

1.7

0.5

2.7

61

10575

-

3x300

1.8

0.5

2.9

66.5

13055

1

3x50+35

1.0/09

0.2

1.9

33

2730

2/0

3x70+50

1.1/0.9

0.2

2

36

3440

3/0

3x95+50

1.1/1.0

0.5

2.2

42.5

5080

4/0

3x120+70

1.2/1.1

0.5

2.3

46.5

6275

300MCM

3x150+70

1.4/1.1

0.5

2.5

50

7340

500MCM

3x185+70

1.6/1.1

0.5

2.6

56

8975

750MCM

3x240+95

1.7/1.1

0.5

2.8

62.5

11435

16

4x1.5

0.7

0.2

1.3

13

290

14

4x2.5

0.7

0.2

1.4

14

355

12

4x4

0.7

0.2

1.4

15

440

10

4x6

0.7

0.2

1.4

17

585

8

4x10

0.7

0.2

1.5

19

800

6

4x16

0.7

0.2

1.6

22

1120

4

4x25

0.9

0.2

1.7

26

1650

2

4x35

0.9

0.2

1.8

29

2135

1

4x50

1

0.2

1.9

32.5

2745

2/0

4x70

1.1

0.5

2.1

39

4295

3/0

4x95

1.1

0.5

2.3

44.5

5660

4/0

4x120

1.2

0.5

2.4

48.5

6880

300MCM

4x150

1.4

0.5

2.6

53

8315

500MCM

4x185

1.6

0.5

2.7

60.5

10510

750MCM

4x240

1.7

0.5

2.9

67

13370

-

4x300

1.8

0.5

3.1

73

16360

16

5x1.5

0.7

0.2

1.4

14

335

14

5x2.5

0.7

0.2

1.4

15

415

12

5x4

0.7

0.2

1.4

16

515

10

5x6

0.7

0.2

1.5

18.5

705

8

5x10

0.7

0.2

1.6

21

955

6

5x16

0.7

0.2

1.8

23.5

1340

4

5x25

0.9

0.2

1.8

29.5

2085

16

7x1.5

0.7

0.2

1.4

15

395

14

7x2.5

0.7

0.2

1.4

16

495

16

12x1.5

0.7

0.2

1.5

19

605

14

12x2.5

0.7

0.2

1.5

20.5

750

16

19x1.5

0.7

0.2

1.5

21.5

775

14

19x2.5

0.7

0.2

1.6

24

1045

16

24x1.5

0.7

0.2

1.6

24.5

980

14

24x2.5

0.7

0.5

1.7

29

1570

16

27x1.5

0.7

0.2

1.7

25

1050

14

27x2.5

0.7

0.2

1.8

28.5

1410

16

37x1.5

0.7

0.2

1.7

28

1320

14

37x2.5

0.7

0.2

1.8

31.5

1790
