U-1000 R2V



Application and Description

These cables for energy distribution are suitable for all types of low voltage industrial-type connection, in urban

grids, building installations, etc.

Particularly suited in cases of high operating temperature and when high resistance to solar radiation and

atmospheric agents is required. Good resistance to low temperature and chemical agents.

Can be used without additional mechanical protection in the open air, fixed to walls or in raceways, inside

walkways, and in empty in Cable Constructions in general. Can be laid underground with mechanical protection

constructed from slabs, tiles, or bricks.

They are not recommend to lay this cable in ground flooded for more than two months per year. With

appropriate mechanical protection it can be use in areas subject to risk of explosion, but in this case the

permitted current load is reduced by 15%. It can be used in ambient temperature down to -25°C.

Standard and Approval

NF C 32-321

EN 60332-1/NF C 32-070

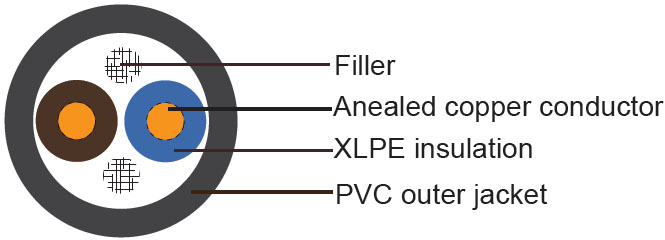

Cable Construction

Flexible electrolytic annealed copper strands

Strands to IEC 60228 class 2 , make-up with fine wires (Φ max. 0.4mm)with flexibility level equivalent to class 5

XLPE insulation according to XP C 32-321

Color codes to XP C 32-321

Not fibrous and not hygroscopic filler

Flexible black PVC outer jacket

Technical Characteristics


Working Voltage

600/1000 volts

Test voltage

1200 volts

Minimum bending radius

6 x O

Operation temperature range

-15°C to 60°C

Short-circuit temperature

250°C

Flame retardant

NF C 32-070 C2

Insulation resistance

20 MΩ x km

Cable Parameter


AWG

Cross Section

Insulation thickness

Minimum Sheath thickness

Maximum Overall diameter

Approx Cable weight



mm2

mm

mm

mm

kg/km

16

1x1.5

0.7

1.09

6.6

45

14

1x2.5

0.7

1.09

7

55

12

1x4

0.7

1.09

7.6

75

10

1x6

0.7

1.09

8.2

100

8

1x10

0.7

1.09

9.2

140

6

1x16

0.7

1.09

10.5

205

4

1x25

0.9

1.09

12.5

315

2

1x35

0.9

1.09

13.5

400

1

1x50

1

1.09

15

530

2/0

1x70

1.1

1.09

17

725

3/0

1x95

1.1

1.18

19

985

4/0

1x120

1.2

1.18

21

1260

300MCM

1x150

1.4

1.26

23

1520

500MCM

1x185

1.6

1.26

25.5

1940

750MCM

1x240

1.7

1.35

28.5

2310

1x300

1.8

1.43

31

3200

16

2x1.5

0.7

1.43

10.5

115

14

2x2.5

0.7

1.43

11.5

145

12

2x4

0.7

1.43

13

195

10

2x6

0.7

1.43

14

265

8

2x10

0.7

1.43

16

390

6

2x16

0.7

1.43

18.5

560

4

2x25

0.9

1.43

22

850

2

2x35

0.9

1.43

24.5

1080

16

3x1.5

0.7

1.43

11

130

14

3x2.5

0.7

1.43

12.5

170

12

3x4

0.7

1.43

13.5

230

10

3x6

0.7

1.43

15

325

8

3x10

0.7

1.43

17

485

6

3x16

0.7

1.43

19.5

705

4

3x25

0.9

1.43

23.5

1080

2

3x35

0.9

1.43

26

1390

1

3x50

1

1.43

29

1840

2/0

3x70

1.1

1.52

34

2540

3/0

3x95

1.1

1.6

38.5

3430

4/0

3x120

1.2

1.69

42.5

4440

300MCM

3x150

1.4

1.86

47.5

5380

500MCM

3x185

1.6

1.94

53

6920

750MCM

3x240

1.7

2.11

59.5

8420

-

3x300

1.8

2.28

66

11300

16

4x1.5

0.7

1.8

11.3

180

14

4x2.5

0.7

1.8

12.2

220

12

4x4

0.7

1.8

13.3

300

10

4x6

0.7

1.8

15

420

8

4x10

0.7

1.8

17.25

630

6

4x16

0.7

1.8

18.8

900

4

4x25

0.9

1.8

23

1350

2

4x35

0.9

1.8

25.1

1750

1

4x50

1

1.9

29.1

2350

2/0

4x70

1.1

2

33.9

3400

3/0

4x95

1.1

2.1

38.4

4500

4/0

4x120

1.2

2.3

42.4

5700

300MCM

4x150

1.4

2.4

47.2

7050

500MCM

4x185

1.6

2.6

52.65

8700

750MCM

4x240

1.7

2.8

59

11400

-

4x300

1.8

3

64.8

14200

1

3x50+35

1

1.8

28.8

2200

2/0

3x70+50

1.1

2

33.4

3100

3/0

3x95+50

1.1

2.1

37

3950

4/0

3x120+70

1.2

2.2

41.3

5050

300MCM

3x150+70

1.4

2.3

45.1

6100

500MCM

3x185+70

1.6

2.5

50

7400

750MCM

3x240+95

1.7

2.7

55.8

9700

16

5x1.5

0.7

1.8

12.1

205

14

5x2.5

0.7

1.8

13.1

260

12

5x4

0.7

1.8

14

350

10

5x6

0.7

1.8

16.3

500

8

5x10

0.7

1.8

18.5

760

6

5x16

0.7

1.8

20.6

1100

4

5x25

0.9

1.8

25.4

1600

16

7x1.5

0.7

1.8

12.3

260

14

7x2.5

0.7

1.8

13.2

330

12

7x4

0.7

1.8

15.4

450

16

8x1.5

0.7

1.8

13.9

290

14

8x2.5

0.7

1.8

14.9

380

12

8x4

0.7

1.8

16.5

520

16

10x1.5

0.7

1.8

15.8

350

14

10x2.5

0.7

1.8

17

450

12

10x4

0.7

1.8

19

630

16

12x1.5

0.7

1.8

15.5

390

14

12x2.5

0.7

1.8

16.8

510

12

12x4

0.7

1.8

19.6

700

16

14x1.5

0.7

1.8

17

440

14

14x2.5

0.7

1.8

18.3

580

12

14x4

0.7

1.8

20.5

800

16

19x1.5

0.7

1.8

17.9

550

14

19x2.5

0.7

1.8

19.4

740

12

19x4

0.7

1.8

22.6

1050

16

24x1.5

0.7

1.8

20.7

670

14

24x2.5

0.7

1.8

23.2

900

16

30x1.5

0.7

1.8

22.6

800

14

30x2.5

0.7

1.8

24.5

1100

16

37x1.5

0.7

1.8

23.5

950

14

37x2.5

0.7

1.8

26.3

1300
