Industrial Cables-British Standard
309Y to BS 6500(New BS EN 50525-2-11)
Application and Description
309Y to BS 6500(New BS EN 50525-2-11) cables are suitable for domestic premises, kitchen, office for light
service or light portable apparatuses. With their special insulation and sheath compounds, these cables are
adapted for apparatus in kitchen and heating and for use in zones with high temperature (like lighting system
apparatuses) without contact with warm parts and radiations. Unsuitable for outdoor use, in industrial and
agricultural buildings or non-domestic portable tools. 309Y is equivalent to harmonized code H05V2V2-F.

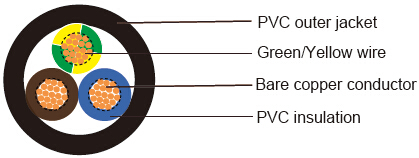

Cable Construction
-
Bare copper fine wire conductor
Stranding to BS CL-5 or IEC 60228 CL-5
PVC core insulation TI3 to BS 7655
Green/Yellow grounding (3 conductors and above)
PVC outer jacket TM3 to BS 7655
Core Identification
-
2Cores: Blue, Brown
3Cores: Green/Yellow, Blue, Brown
4Cores: Green/Yellow, Brown, Black, Grey
5Cores: Green/Yellow, Brown, Black, Grey, Blue
Technical Characteristics
-
Working voltage: 300/500 volts
Test voltage: 2000 volts
Flexing bending radius: 15xOverall diameter
Static bending radius: 4xOverall diameter
Flexing temperature: +5º C to +90º C
Static temperature: -40º C to +90º C
Short circuit temperature: +160º C
Flame retardant: IEC 60332.1
- Insulation resistance: 20 MΩxkm
Cable Parameter
| AWG (No of Strands/ Strand Diameter) |
No. of Cores x Nominal Cross Sectional Area #xmm² |
Nominal Thickness of Insulation mm |
Nominal Thickness of Sheath mm |
Nominal Overall Diameter mm |
Nominal Copper Weight kg/km |
Nominal Weight kg/km |
| 3092Y | ||||||
| 20(16/32) | 2x0.50 | 0.6 | 0.8 | 5.6-7 | 9.6 | 46 |
| 18(24/32) | 2x0.75 | 0.6 | 0.8 | 6-7.6 | 14.4 | 56 |
| 17(32/32) | 2x1.00 | 0.6 | 0.8 | 6.4-8 | 19 | 65 |
| 16(30/30) | 2x1.50 | 0.7 | 0.8 | 7.4-9 | 29 | 80 |
| 14(50/30) | 2x2.50 | 0.8 | 1.0 | 8.9-11 | 48 | 135 |
| 3093Y | ||||||
| 20(16/32) | 3x0.50 | 0.6 | 0.8 | 5.8-7.2 | 14.4 | 56 |
| 18(24/32) | 3x0.75 | 0.6 | 0.8 | 6.4-8 | 21.6 | 61 |
| 17(32/32) | 3x1.00 | 0.6 | 0.8 | 6.8-8.4 | 29 | 77 |
| 16(30/30) | 3x1.50 | 0.7 | 0.9 | 8-9.8 | 43 | 108 |
| 14(50/30) | 3x2.50 | 0.8 | 1.1 | 9.6-12 | 72 | 165 |
| 12(56/28) | 3x40 | 0.8 | 1.2 | 10.8-13.1 | 115 | 224 |
| 3094Y | ||||||
| 20(16/32) | 4x0.50 | 0.6 | 0.8 | 6.4-7.8 | 19 | 68 |
| 18(24/32) | 4x0.75 | 0.6 | 0.8 | 6.8-8.6 | 29 | 80 |
| 17(32/32) | 4x1.00 | 0.6 | 0.9 | 7.6-9.4 | 38 | 100 |
| 16(30/30) | 4x1.50 | 0.7 | 1.0 | 9-11 | 58 | 140 |
| 14(50/30) | 4x2.50 | 0.8 | 1.1 | 10.5-13 | 96 | 210 |
| 12(56/28) | 4x40 | 0.8 | 1.2 | 11.8-14.1 | 154 | 295 |
| 3095Y | ||||||
| 18(24/32) | 5x0.75 | 0.6 | 0.9 | 7.4-9.6 | 36 | 110 |
| 17(32/32) | 5x1.00 | 0.6 | 0.9 | 8.3-10 | 48 | 130 |
| 16(30/30) | 5x1.50 | 0.7 | 1.1 | 10-12 | 72 | 185 |
| 14(50/30) | 5x2.50 | 0.8 | 1.2 | 11.5-14 | 120 | 265 |
| 12(56/28) | 5x40 | 0.8 | 1.4 | 13.1-16.3 | 192 | 361 |
