Industrial Cables-British Standard
318TQ to BS 6500
Application and Description
318TQ to BS 6500 cables can be used either in dry, humid or wet places or in contact with oil or grease, in
weather conditions and under weak mechanical stress, they are suitable for power supply to small appliances in
industrial plants, machine shops, heating plates, portable lamps, farming equipment etc. 318TQ to BS 6500
cables are also suitable for caravans and camping equipment. 318TQ is equivalent to harmonized code H05BN4-F.

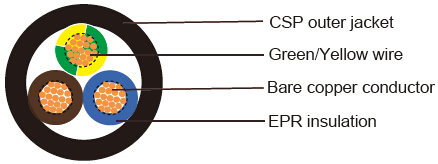

Cable Construction
-
Fine bare copper strands
Stranding to BS 6360 CL-5 or IEC 60228 CL-5
EPR(Ethylene Propylene Rubber) rubber EI7 insulation
CSP(Chlorosulphonated Polyethylene) outer jacket EM7
Core Identification
-
2cores: Brown, Blue
3cores: Green/Yellow, Brown, Blue
4cores: Green/Yellow, Brown, Black, Grey
5cores: Green/Yellow, Blue, Brown, Black, Grey
6 cores and above: white insulation with black numerals
Technical Characteristics
-
Working voltage: 300/500 volts
Test voltage: 2000 volts
Flexing bending radius: 6xOverall diameter
Fixed bending radius: 4xOverall diameter
Temperature Range: -25º C to +90º C
Maximum short circuit temperature: +250º C
Flame retardant: IEC 60332.1
Insulation resistance: 20 MΩxkm
Cable Parameter
| AWG (No of Strands/ Strand Diameter) |
No. of Cores x Nominal Cross Sectional Area #xmm² |
Nominal Thickness of Insulation mm |
Nominal Thickness of Sheath mm |
Nominal Overall Diameter mm |
Nominal Weight kg/km |
| 3182TQ | |||||
| 18(24/32) | 2x0.75 | 0.6 | 0.8 | 6.5 | 66 |
| 17(32/32) | 2x1 | 0.6 | 0.9 | 7.1 | 79 |
| 3183TQ | |||||
| 18(24/32) | 3x0.75 | 0.6 | 0.9 | 7.1 | 80 |
| 17(32/32) | 3x1 | 0.6 | 0.9 | 7.6 | 94 |
