638TQ to BS 7919



Application and Description

638TQ to BS 7919 cables are can be used either in dry, humid or wet places, in contact with oil or grease, in

weather conditions and under medium mechanical stress, 638TQ to BS 7919 cables are suitable for power

supply to equipment in industrial plants, large size boilers, heating plates, portable lamps, electrical tools such

as drilling machines, disk saws, portable engines and machines, building and farming equipments etc. 638TQ to

BS 7919 cables are also suitable for stationary equipments designed for wind-tower application. The particular

cable construction and the special sheath materials have improved the cable torsion resistance (max150°/m),

which is a key requirement for drop cables in wind-generators. 638TQ to BS 7919 cables are also suitable on

plaster in temporary buildings and builders huts, and wiring in machinery elevators. 638TQ is equivalent to

harmonized code H07BN4-F.

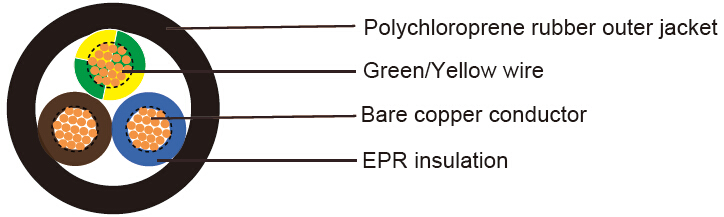

Cable Construction

638TQ to BS 7919638TQ to BS 7919

Core Identification

Technical Characteristics

Cable Parameter

AWG
(No of Strands/
Strand Diameter)		 No. of Cores x Nominal Cross Sectional Area
#xmm²		 Nominal Thickness
of Insulation
mm		 Nominal Thickness of Sheath
mm		 Nominal Overall Diameter
mm		 Nominal Weight kg/km
6381TQ
16(30/30) 1x1.5 0.8 1.4 5.9 50
14(50/30) 1x2.5 0.9 1.4 6.5 65
12(56/28) 1x4 1 1.5 7.8 105
10(84/28) 1x6 1 1.6 9 130
8(80/26) 1x10 1.2 1.8 10.8 200
6(128/26) 1x16 1.2 1.9 12.1 275
4(200/26) 1x25 1.4 2 14.1 400
2(280/26) 1x35 1.4 2.2 15.9 520
1(400/26) 1x50 1.6 2.4 18.5 730
2/0(356/24) 1x70 1.6 2.6 21 980
3/0(485/24) 1x95 1.8 2.8 23.9 1270
4/0(614/24) 1x120 1.8 3 25.8 1570
300MCM (765/24) 1x150 2 3.2 28.6 1960
350MCM (944/24) 1x185 2.2 3.4 31.5 2380
500MCM(1225/24) 1x240 2.4 3.5 35.1 3100
-(1525/24) 1x300 2.6 3.6 38.7 3790
-(2013/24) 1x400 2.8 3.8 43.5 4880
-(1769/23) 1x500 3 4 47.8 6070
-(2257/23) 1x630 3 4.1 51.5 7460
AWG
(No of Strands/
Strand Diameter)		 No. of Cores x Nominal Cross Sectional Area
#xmm²		 Nominal Thickness
of Insulation
mm		 Nominal Thickness of Sheath
mm		 Nominal Overall Diameter
mm		 Nominal Weight kg/km
6382TQ
17(32/32) 2x1 0.8 1.3 8.2 93
16(30/30) 2x1.5 0.8 1.5 9.3 118
14(50/30) 2x2.5 0.9 1.7 10.9 172
12(56/28) 2x4 1 1.8 13.2 275
10(84/28) 2x6 1 2 15.6 370
8(80/26) 2x10 1.2 3.1 20.6 690
6(128/26) 2x16 1.2 3.3 23.3 910
4(200/26) 2x25 1.4 3.6 27.4 1290
6383TQ
17(32/32) 3x1 0.8 1.4 8.9 114
16(30/30) 3x1.5 0.8 1.6 10 144
14(50/30) 3x2.5 0.9 1.8 11.7 210
12(56/28) 3x4 1 1.9 14.1 335
10(84/28) 3x6 1 2.1 16.6 450
8(80/26) 3x10 1.2 3.3 22.1 835
6(128/26) 3x16 1.2 3.5 24.8 1120
4(200/26) 3x25 1.4 3.8 29.3 1600
2(280/26) 3x35 1.4 4.1 32.9 2080
1(400/26) 3x50 1.6 4.5 38.5 2890
2/0(356/24) 3x70 1.6 4.8 43.6 3850
3/0(485/24) 3x95 1.8 5.3 50 4970
4/0(614/24) 3x120 1.8 5.6 53.9 6350
300 MCM (765/24) 3x150 2 6 59.9 7700
350 MCM (944/24) 3x185 2.2 6.4 65.9 9350
500MCM(1225/24) 3x240 2.4 7.1 74.7 1200
-(1525/24) 3x300 2.6 7.7 83.2 14910
6384TQ
17(32/32) 4x1 0.8 1.5 9.8 139
16(30/30) 4x1.5 0.8 1.7 11 177
14(50/30) 4x2.5 0.9 1.9 12.8 257
12(56/28) 4x4 1 2 15.5 420
10(84/28) 4x6 1 2.3 18.5 565
AWG
(No of Strands/
Strand Diameter)		 No. of Cores x Nominal Cross Sectional Area
#xmm²		 Nominal Thickness
of Insulation
mm		 Nominal Thickness of Sheath
mm		 Nominal Overall Diameter
mm		 Nominal Weight kg/km
8(80/26) 4x10 1.2 3.4 24.1 1020
6(128/26) 4x16 1.2 3.6 27.1 1380
4(200/26) 4x25 1.4 4.1 32.5 2140
2(280/26) 4x35 1.4 4.4 36.5 2610
1(400/26) 4x50 1.6 4.8 42.6 3650
2/0(356/24) 4x70 1.6 5.2 48.6 4880
3/0(485/24) 4x95 1.8 5.9 56 6390
4/0(614/24) 4x120 1.8 6 59.9 7750
300 MCM (765/24) 4x150 2 6.5 66.8 9780
350 MCM (944/24) 4x185 2.2 7 73.5 11900
500MCM(1225/24) 4x240 2.4 7.7 83.2 15330
-(1525/24) 4x300 2.6 8.4 92.8 19030
6386TQ
16(30/30) 6x1.5 0.8 2.5 14.7 288
14(50/30) 6x2.5 0.9 2.7 17.1 395
12(56/28) 6x4 1 2.9 20.2 670
6387TQ
16(30/30) 7x1.5 0.8 2.6 15.7 385
14(50/30) 7x2.5 0.9 2.8 18.1 445
12(56/28) 7x4 1 3.1 21.6 773
63812TQ
16(30/30) 12x1.5 0.8 2.9 19.1 556
14(50/30) 12x2.5 0.9 3.1 22.2 760
12(56/28) 12x4 1 3.5 20.2 1290
63818TQ
16(30/30) 18x1.5 0.8 2.5 14.7 814
14(50/30) 18x2.5 0.9 2.7 17.1 1100
12(56/28) 18x4 1 2.9 26.2 1910
63824TQ
16(30/30) 24x1.5 0.8 3.5 26.5 1080
14(50/30) 24x2.5 0.9 3.9 31.3 1460
63836TQ
16(30/30) 36x1.5 0.8 3.8 30.2 1600
14(50/30) 36x2.5 0.9 4.3 36.5 2150
