Coil End Lead Cable to BS 6195

Application and Description

Coil End Lead Cable to BS 6195 cables are designed as power leads for permanent connection to coil winding

motors, panel wiring and electrical machinery. Coil End Lead Cable to BS 6195 cables are able to withstand high

temperature and immersion in varnish. Other applications include vehicle wiring, The HOFR sheath resists oil and

varnish and the stranding is designed as a compromise between flexibility and positional stability. Also Coil End

Lead Cable to BS 6195 cables are suitable for use as an alternative to tri-rated and bi-rated cable in certain

applications.

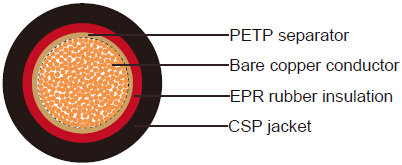

Coil End Lead Cable to BS 6195

Fine bare copper strands

Stranding to BS 6360 CL-5 or IEC 60228 CL-5

PETP(Polyethylene Terephthalate) tape separator

EPR-HOFR( Ethylene Propylene Rubber-Heat and Oil Resistant and Flame Retardant) insulation, type FR1 (for
type 4A & 4C) & type FR2 (for type 4D & 4E&4F) to BS 7655-1.5, type EI2 (for type 5) to EN 50363-1
CSP(Chlorosulphonated Polyethylene), HOFR (Heat and Oil Resistant and Flame Retardant) sheath to BS 6899,
black

Working voltage:
Type A: 300/500V

Type C: 600/1000V
Type D: 1900/3300V
Type E: 3800/6600V
Type F: 6350/11000V
Minimum bending radius: 4xOverall diameter

Operating temperature max. : +90º C(for type 4), +180º C(for type 5)

AWG (No of Strands/ Strand Diameter)	No. of Cores x Nominal Cross Sectional Area #xmm²	Nominal Thickness of Insulation mm	Nominal Overall Diameter mm	Nominal Weight kg/km
TYPE A
18(24/32)	1x0.75	0.8	3.5	16
17(32/32)	1x1	0.8	3.7	19
16(30/30)	1x1.5	0.8	4	25
14(50/30)	1x2.5	0.9	4.6	37
12(56/28)	1x4	1	5.4	57
10(84/28)	1x6	1	6.5	80
8(80/26)	1x10	1.2	7.9	130
TYPE C
20(16/32)	1x0.5	1.4	4.5	17
18(24/32)	1x0.75	1.4	4.7	21
17(32/32)	1x1	1.4	4.9	24
16(30/30)	1x1.5	1.4	5.2	30
14(50/30)	1x2.5	1.4	5.6	41
12(56/28)	1x4	1.4	6.3	66
10(84/28)	1x6	1.5	7.5	93
8(80/26)	1x10	1.5	8.5	136
6(128/26)	1x16	1.5	9.6	206
4(200/26)	1x25	1.6	11.4	300
2(280/26)	1x35	1.6	12.8	406
1(400/26)	1x50	1.7	14.8	573
2/0(356/24)	1x70	1.8	17.2	793
3/0(485/24)	1x95	2	19.7	1028
4/0(614/24)	1x120	2.2	21.9	1285
300 MCM (765/24)	1x150	2.3	24.1	1562
350 MCM (944/24)	1x185	2.4	26.3	1914
500MCM(1225/24)	1x240	2.4	28.3	2431
(1525/24)	1x300	2.6	33	3024
(2013/24)	1x400	2.8	37.4	3948
TYPE D
6(128/26)	1x16	2.8	12.4	255
4(200/26)	1x25	2.8	13.8	351
2(280/26)	1x35	2.8	15.2	458

AWG (No of Strands/ Strand Diameter)	No. of Cores x Nominal Cross Sectional Area #xmm²	Nominal Thickness of Insulation mm	Nominal Overall Diameter mm	Nominal Weight kg/km
1(400/26)	1x50	2.8	17.1	616
2/0(356/24)	1x70	2.8	19.2	820
3/0(485/24)	1x95	3	22	1097
4/0(614/24)	1x120	3	23.5	1340
300 MCM (765/24)	1x150	3	25.5	1635
350 MCM (944/24)	1x185	3	27.5	1973
500MCM(1225/24)	1x240	3	30.6	2504
(1525/24)	1x300	3	33.8	3098
(2013/24)	1x400	3	37.8	4045
TYPE E
6(128/26)	1x16	5	17.2	384
4(200/26)	1x25	5	18.6	495
2(280/26)	1x35	5	20	613
1(400/26)	1x50	5	22.1	796
2/0(356/24)	1x70	5	24.2	1020
3/0(485/24)	1x95	5	26.3	1287
4/0(614/24)	1x120	5	27.8	1542
300 MCM (765/24)	1x150	5	29.8	1853
350 MCM (944/24)	1x185	5	32.1	2225
500MCM(1225/24)	1x240	5	35.1	2782
TYPE F
6(128/26)	1x16	7.6	22.9	566
4(200/26)	1x25	7.6	24.1	680
2(280/26)	1x35	7.6	25.5	810
1(400/26)	1x50	7.6	27.3	997
2/0(356/24)	1x70	7.6	29.4	1237
3/0(485/24)	1x95	7.6	31.5	1520
4/0(614/24)	1x120	7.6	33.3	1804
300 MCM (765/24)	1x150	7.6	35.3	2131
350 MCM (944/24)	1x185	7.6	37.3	2503
500MCM(1225/24)	1x240	7.6	40.3	3081
