Applications :

• Cat5E Cable is a cable standard for Gigabit Ethernet and other network protocol, suitable for basic voice and data installations up to 100 MHz. In addition, these cables are with copper wire braid armoured & flame retardant mud resistant outer sheath, providing additional mechanically protection still maintaining the flexibility of the cable.

Standards :

• IEC 60332-3-22	IEC 60754-1,2
  IEC 61034-1,2	NEK 606:2004

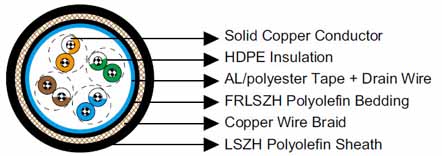

Construction :

• Conductors : 24AWG solid bare copper.
• Insulation : HDPE.
• Twinning : Two coloured insulated conductors twisted together to form a pair.
• Bedding : Flame retardant, low smoke and halogen-free polyolefin, coloured black.
• Armour : 0.2/0.3mm copper wire braid.
• Outer Sheath : Low smoke and halogen-free polyolefin.

Optional :

• Cat5E F/UTP : These cables have collective shielding of aluminium/Polyester tape with drain wire.
• Cat5E SF/UTP :These cables have double collective shieldings of aluminium/Polyester tape & copper wire braid with drain wire

Electrical Characteristics :

• AWG		18
  Nominal Conductor Diameter	mm	1.0
  Maximum DC Resistant@20℃	Ω/100m	9.38
  Maximum DCR Unbalance	%	5
  Maximum Mutual Capacitance	pF/m	55.8
  Maximum Capacitance Unbalance	pF/100m	330
  Characteristic Impedance@1-100MHz	Ω	100+/-15
  Maximum Propagation Delay Skew	ns/100m	45

• FREQ MHz	Maximum Attenuation dB/100m	Minimum NEXT dB	Minimum PSNEXT dB	Minimum ELFEXT dB/100m	Minimum PSELFEXT dB/100m	Minimum RL dB
  0.772	1.8	67.0	64.0	66.0	63.0	—
  1	2.0	65.3	62.3	63.8	60.8	20.0
  4	4.1	56.3	53.3	51.7	48.7	23.0
  8	5.8	51.8	48.8	45.7	42.7	24.5
  10	6.5	50.3	47.3	43.8	40.8	25.0
  16	8.2	47.3	44.3	39.7	36.7	25.0
  20	9.3	45.8	42.8	37.7	34.7	25.0
  25	10.4	44.3	41.3	35.8	32.8	24.3
  31.25	11.7	42.9	39.9	33.9	30.9	23.6
  62.5	17.0	38.4	35.4	27.8	24.8	21.5
  100	22.0	35.3	32.3	23.8	20.8	20.1

Mechanical and Thermal Properties :

• Bending Radius : 8×OD (during installation); 4×OD (fixed installed).
• Temperature Range : -30℃ ~ +75℃.
