Applications :
- These cables are flame retardant, low smoke, halogen freeand mud resistant, used for control, power and lighting systems.
Standards :
-
| IEC 60092-353 |
IEC 60092-351 |
| IEC 60092-359 |
IEC 60332-1 |
| IEC 60332-3-22 |
IEC 60754-1,2 |
| IEC 61034-1,2 |
NEK 606:2004 |

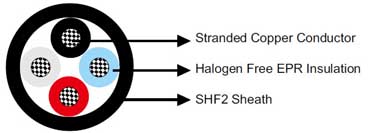

Construction :
- Conductors : Tinned annealed stranded copper to IEC 60228 class 2.
- Insulation : Halogen-free EPR.
- Outer Sheath :Halogen free thermosetting compound, SHF2, coloured black.
Electrical Characteristics :
-
| Nominal Cross Section Area |
mm² |
1.5 |
2.5 |
4 |
6 |
10 |
16 |
25 |
35 |
| Nominal Conductor Diameter |
mm |
1.6 |
2.1 |
2.6 |
3.2 |
4 |
5.1 |
6.5 |
7.4 |
| Maximum DC Resistant@20℃ |
Ω/km |
12.2 |
7.56 |
4.7 |
3.11 |
1.84 |
1.16 |
0.734 |
0.529 |
| Continuous Current Rating@45℃1 Core |
A |
23 |
30 |
40 |
52 |
72 |
96 |
127 |
157 |
| Continuous Current Rating@45℃2 Core |
A |
20 |
26 |
34 |
44 |
61 |
82 |
108 |
133 |
| Continuous Current Rating@45℃3&4 Core |
A |
16 |
21 |
28 |
36 |
50 |
67 |
89 |
110 |
| Short Circuit Current 1s |
A |
210 |
360 |
570 |
860 |
1430 |
2290 |
3580 |
5010 |
| Operating Voltage |
KV |
0.6/1 |
0.6/1 |
0.6/1 |
0.6/1 |
0.6/1 |
0.6/1 |
0.6/1 |
0.6/1 |
| Nominal Cross Section Area |
mm² |
50 |
70 |
95 |
120 |
150 |
185 |
240 |
300 |
| Nominal Conductor Diameter |
mm |
8.7 |
10.3 |
12.2 |
13.8 |
15.1 |
17.0 |
19.6 |
21.9 |
| Maximum DC Resistant@20℃ |
Ω/km |
0.391 |
0.27 |
0.195 |
0.154 |
0.126 |
0.1 |
0.0762 |
0.0607 |
| Continuous Current Rating@45℃1 Core |
A |
196 |
242 |
293 |
339 |
389 |
444 |
522 |
601 |
| Continuous Current Rating@45℃2 Core |
A |
167 |
206 |
249 |
288 |
331 |
444 |
444 |
511 |
| Continuous Current Rating@45℃3&4 Core |
A |
137 |
169 |
205 |
237 |
272 |
311 |
365 |
421 |
| Short Circuit Current 1s |
A |
7150 |
10020 |
13590 |
17170 |
21460 |
26470 |
34340 |
42930 |
| Operating Voltage |
KV |
0.6/1 |
0.6/1 |
0.6/1 |
0.6/1 |
0.6/1 |
0.6/1 |
0.6/1 |
0.6/1 |
Note: For more than 4-cores, the current ratings may be calculated from the following formula (IN=I1/ ³√ N ), I1= Current rating for 1-core, N = Number of cores.
Ambient Temperature Correction Factors :
-
| Ambient Temperature Correction Factors |
35 |
40 |
45 |
50 |
55 |
60 |
65 |
70 |
75 |
80 |
| Rating Factor |
1.1 |
1.05 |
1.0 |
0.94 |
0.88 |
0.82 |
0.74 |
0.67 |
0.58 |
0.47 |
Mechanical and Thermal Properties :
- Bending Radius : 8×OD (during installation); 6×OD (fixed installed).
- Temperature Range : -20℃ ~ +90℃.
Dimensions and Weight :
| Construction No. of cores×Cross section(mm²) |
Nominal Insulation Thickness mm |
Nominal Sheath Thickness mm |
Nominal Overall Diameter mm |
Nominal Weight kg/km |
| 1×1.5 |
1.0 |
1.0 |
6.0 |
60 |
| 1×2.5 |
1.0 |
1.0 |
6.5 |
80 |
| 1×4 |
1.0 |
1.0 |
7.1 |
110 |
| 1×6 |
1.0 |
1.0 |
7.6 |
130 |
| 1×10 |
1.0 |
1.1 |
8.5 |
165 |
| 1×16 |
1.0 |
1.1 |
9.8 |
235 |
| 1×25 |
1.2 |
1.2 |
11.7 |
355 |
| 1×35 |
1.2 |
1.2 |
12.8 |
455 |
| 1×50 |
1.4 |
1.3 |
14.4 |
595 |
| 1×70 |
1.4 |
1.4 |
16.3 |
805 |
| 1×95 |
1.6 |
1.5 |
18.7 |
1090 |
| 1×120 |
1.6 |
1.5 |
20.3 |
1345 |
| 1×150 |
1.8 |
1.6 |
22.4 |
1635 |
| 1×185 |
2.0 |
1.7 |
24.9 |
2075 |
| 1×240 |
2.2 |
1.8 |
28.1 |
2660 |
| 1×300 |
2.4 |
1.9 |
30.8 |
3340 |
| 2×1.5 |
1.0 |
1.1 |
9.7 |
145 |
| 2×2.5 |
1.0 |
1.1 |
10.5 |
175 |
| 2×4 |
1.0 |
1.2 |
11.6 |
225 |
| 2×6 |
1.0 |
1.2 |
12.9 |
295 |
| 2×10 |
1.0 |
1.3 |
14.8 |
420 |
| 2×16 |
1.0 |
1.4 |
17.2 |
605 |
| 2×25 |
1.2 |
1.5 |
21.3 |
940 |
| 2×35 |
1.2 |
1.6 |
23.3 |
1185 |
| 2×50 |
1.4 |
1.8 |
26.9 |
1585 |
| 2×70 |
1.4 |
1.9 |
31.9 |
2280 |
| 2×95 |
1.6 |
2.1 |
36.9 |
3090 |
| 2×120 |
1.6 |
2.2 |
40.3 |
3780 |
| 2×150 |
1.8 |
2.4 |
44.7 |
4640 |
| 2×185 |
2.0 |
2.6 |
49.5 |
5750 |
| 2×240 |
2.2 |
2.8 |
56.1 |
7460 |
| 2×300 |
2.4 |
3.0 |
62.0 |
9265 |
| 3×1.5 |
1.0 |
1.1 |
10.3 |
165 |
| 3×2.5 |
1.0 |
1.2 |
11.1 |
205 |
| 3×4 |
1.0 |
1.2 |
12.5 |
280 |
| 3×6 |
1.0 |
1.3 |
13.6 |
360 |
| 3×10 |
1.0 |
1.3 |
16.0 |
530 |
| 3×16 |
1.0 |
1.4 |
18.5 |
770 |
| 3×25 |
1.2 |
1.6 |
22.9 |
1200 |
| 3×35 |
1.2 |
1.7 |
25.0 |
1525 |
| 3×50 |
1.4 |
1.8 |
28.7 |
2030 |
| 3×70 |
1.4 |
2.0 |
32.6 |
2765 |
| 3×95 |
1.6 |
2.2 |
37.6 |
3745 |
| 3×120 |
1.6 |
2.3 |
41.2 |
4640 |
| 3×150 |
1.8 |
2.5 |
45.7 |
5675 |
| 3×185 |
2.0 |
2.7 |
51.2 |
7200 |
| 3×240 |
2.2 |
3.0 |
57.5 |
9300 |
| 3×300 |
2.4 |
3.2 |
66.8 |
12080 |
| 4×1.5 |
1.0 |
1.2 |
11.2 |
200 |
| 4×2.5 |
1.0 |
1.2 |
12.4 |
255 |
| 4×4 |
1.0 |
1.3 |
13.7 |
340 |
| 4×6 |
1.0 |
1.3 |
15.2 |
455 |
| 4×10 |
1.0 |
1.4 |
17.5 |
665 |
| 4×16 |
1.0 |
1.5 |
20.4 |
970 |
| 4×25 |
1.2 |
1.7 |
25.5 |
1530 |
| 4×35 |
1.2 |
1.8 |
27.8 |
1955 |
| 4×50 |
1.4 |
2.0 |
31.9 |
2600 |
| 4×70 |
1.4 |
2.1 |
36.3 |
3540 |
| 4×95 |
1.6 |
2.4 |
42.0 |
4815 |
| 4×120 |
1.6 |
2.5 |
46.0 |
5965 |
| 4×150 |
1.8 |
2.7 |
53.5 |
7720 |
| 4×185 |
2.0 |
2.9 |
59.2 |
9570 |
| 4×240 |
2.2 |
3.2 |
67.3 |
12480 |
| 4×300 |
2.4 |
3.5 |
74.6 |
15870 |
| 5×1.5 |
1.0 |
1.2 |
13.1 |
245 |
| 6×1.5 |
1.0 |
1.3 |
14.4 |
275 |
| 7×1.5 |
1.0 |
1.3 |
14.4 |
285 |
| 8×1.5 |
1.0 |
1.4 |
16.9 |
380 |
| 9×1.5 |
1.0 |
1.4 |
18.1 |
395 |
| 10×1.5 |
1.0 |
1.4 |
18.4 |
435 |
| 12×1.5 |
1.0 |
1.4 |
19.0 |
485 |
| 14×1.5 |
1.0 |
1.5 |
20.2 |
565 |
| 16×1.5 |
1.0 |
1.5 |
21.3 |
615 |
| 19×1.5 |
1.0 |
1.6 |
22.6 |
715 |
| 20×1.5 |
1.0 |
1.6 |
23.8 |
780 |
| 23×1.5 |
1.0 |
1.7 |
25.9 |
905 |
| 24×1.5 |
1.0 |
1.7 |
26.6 |
920 |
| 27×1.5 |
1.0 |
1.7 |
27.2 |
985 |
| 30×1.5 |
1.0 |
1.8 |
28.4 |
1110 |
| 33×1.5 |
1.0 |
1.8 |
29.5 |
1190 |
| 37×1.5 |
1.0 |
1.9 |
30.8 |
1315 |
| 44×1.5 |
1.0 |
2.0 |
34.8 |
1560 |
| 5×2.5 |
1.0 |
1.3 |
14.3 |
305 |
| 6×2.5 |
1.0 |
1.3 |
15.6 |
360 |
| 7×2.5 |
1.0 |
1.3 |
15.6 |
390 |
| 8×2.5 |
1.0 |
1.4 |
18.4 |
495 |
| 9×2.5 |
1.0 |
1.5 |
19.9 |
505 |
| 10×2.5 |
1.0 |
1.5 |
20.2 |
570 |
| 12×2.5 |
1.0 |
1.5 |
20.9 |
625 |
| 14×2.5 |
1.0 |
1.5 |
21.9 |
735 |
| 16×2.5 |
1.0 |
1.6 |
23.3 |
810 |
| 19×2.5 |
1.0 |
1.6 |
24.6 |
935 |
| 20×2.5 |
1.0 |
1.7 |
26.1 |
1035 |
| 23×2.5 |
1.0 |
1.8 |
28.4 |
1205 |
| 24×2.5 |
1.0 |
1.8 |
29.2 |
1220 |
| 27×2.5 |
1.0 |
1.8 |
29.9 |
1295 |
| 30×2.5 |
1.0 |
1.9 |
31.1 |
1475 |
| 33×2.5 |
1.0 |
1.9 |
32.3 |
1585 |
| 37×2.5 |
1.0 |
2.0 |
33.8 |
1730 |
| 44×2.5 |
1.0 |
2.2 |
38.4 |
2100 |
|
