  Marine Cable

Marine Cable

Applications :

  • Marine cables are flame retardant, low smoke, halogen freeand mud resistant, used for control, power and lighting systems.

Standards :

  • IEC 60092-353 IEC 60092-351
    IEC 60092-359 IEC 60332-1
    IEC 60332-3-22 IEC 60754-1,2
    IEC 61034-1,2 NEK 606:2004

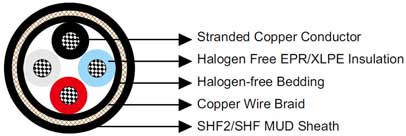

Construction :

  • Conductors : Tinned annealed stranded copper to IEC 60228 class 2.
  • Bedding : Halogen free compound.
  • Armour : Tinned copper wire braid.
  • Outer Sheath : Halogen free thermosetting compound, SHF2 (for TYPE P1). Halogen free, mud resistant thermosetting compound, SHF MUD (for TYPE P1/P8), coloured black.

Electrical Characteristics :

  • Nominal Cross Section Area mm² 1.5 2.5 4 6 10 16 25 35 50 70
    Nominal Conductor Diameter mm 1.6 2.1 2.6 3.2 4.0 5.1 6.5 7.4 8.7 10.3
    Maximum DC Resistant@20℃ Ω/km 12.2 7.56 4.7 3.11 1.84 1.16 0.734 0.529 0.391 0.27
    Continuous Current Rating@45℃1 Core A 23 30 40 52 72 96 127 157 196 242
    Continuous Current Rating@45℃2 Core A 20 26 34 44 61 82 108 133 167 206
    Continuous Current Rating@45℃ 3&4 Core A 16 21 28 36 50 67 89 110 137 169
    Short Circuit Current 1s A 210 360 570 860 1430 2290 3580 5010 7150 10020
    Operating Voltage KV 0.6/1 0.6/1 0.6/1 0.6/1 0.6/1 0.6/1 0.6/1 0.6/1 0.6/1 0.6/1
  •
  • Nominal Cross Section Area mm² 95 120 150 185 240 300 400 500 630
    Nominal Conductor Diameter mm 12.2 13.8 15.1 17.0 19.6 21.9 24.6 27.6 32.5
    Maximum DC Resistant@20℃ Ω/km 0.195 0.154 0.126 0.1 0.0762 0.0607 0.0475 0.0369 0.0286
    Continuous Current Rating@45℃1 Core A 293 339 389 444 522 601 690 780 890
    Continuous Current Rating@45℃2 Core A 249 288 331 444 444 511 587 663 757
    Continuous Current Rating@45℃3&4 Core A 205 237 272 311 365 421 483 546 623
    Short Circuit Current 1s A 13590 17170 21460 26470 34340 42930 57230 71540 90140
    Operating Voltage KV 0.6/1 0.6/1 0.6/1 0.6/1 0.6/1 0.6/1 0.6/1 0.6/1 0.6/1
  • Note: For more than 4-cores, the current ratings may be calculated from the following formula (IN=I1/ ³√ N ), I1= Current rating for 1-core, N = Number of cores.

Ambient Temperature Correction Factors :

  • Ambient Temperature Correction Factors
    35 40 45 50 55 60 65 70 75 80
    Rating Factor
    1.1 1.05 1.0 0.94 0.88 0.82 0.74 0.67 0.58 0.47

Mechanical and Thermal Properties :

  • Bending Radius : 8×OD (during installation); 6×OD (fixed installed).
  • Temperature Range : -20℃ ~ +90℃.

Dimensions and Weight :

Construction No. of
cores×Cross section
(mm²)
Nominal Insulation Thickness mm Nominal Diameter Over Bedding
mm
Nominal Overall Diameter mm Nominal Weight
kg/km
Inner Outer
1×1.5 1.0 1.1 1.1 8.9 135
1×2.5 1.0 1.1 1.1 9.3 150
1×4 1.0 1.1 1.1 9.9 180
1×6 1.0 1.1 1.1 10.4 205
1×10 1.0 1.1 1.2 12.2 295
1×16 1.0 1.1 1.2 13.5 385
1×25 1.2 1.1 1.2 15.4 525
1×35 1.2 1.1 1.3 16.9 685
1×50 1.4 1.1 1.4 18.7 870
1×70 1.4 1.1 1.4 20.4 1105
1×95 1.6 1.1 1.5 22.8 1435
1×120 1.6 1.2 1.6 24.9 1745
1×150 1.8 1.2 1.6 26.8 2055
1×185 2.0 1.2 1.7 29.3 2560
1×240 2.2 1.2 1.8 32.5 3190
1×300 2.4 1.2 1.9 35.2 3935
1×400 2.4 1.4 2.1 40.5 5060
1×500 2.4 1.4 2.2 44.0 6180
1×630 2.4 1.4 2.3 48.0 7620
2×1.5 1.0 1.1 1.2 13.6 295
2×2.5 1.0 1.1 1.2 14.4 335
2×4 1.0 1.1 1.3 16.1 445
2×6 1.0 1.1 1.3 17.1 520
2×10 1.0 1.1 1.4 19.3 680
2×16 1.0 1.1 1.5 21.7 955
2×25 1.2 1.2 1.6 25.9 1335
2×35 1.2 1.2 1.7 27.9 1595
2×50 1.4 1.2 1.9 31.9 2250
2×70 1.4 1.2 2.1 35.8 2795
2×95 1.6 1.2 2.3 41.2 3780
2×120 1.6 1.4 2.4 44.8 4560
2×150 1.8 1.4 2.6 49.2 5500
2×185 2.0 1.4 2.7 53.8 6675
2×240 2.2 1.6 3.0 61.0 8605
2×300 2.4 1.6 3.2 67.0 10510
3×1.5 1.0 1.1 1.2 14.2 320
3×2.5 1.0 1.1 1.3 15.6 415
3×4 1.0 1.1 1.3 16.8 500
3×6 1.0 1.1 1.4 18.1 605
3×10 1.0 1.1 1.4 20.3 795
3×16 1.0 1.1 1.5 22.8 1125
3×25 1.2 1.2 1.6 27.5 1620
3×35 1.2 1.2 1.7 29.6 1955
3×50 1.4 1.2 1.9 33.9 2730
3×70 1.4 1.4 2.0 38.4 3655
3×95 1.6 1.4 2.2 43.8 4885
3×120 1.6 1.4 2.3 47.6 6000
3×150 1.8 1.6 2.5 52.4 7300
3×185 2.0 1.6 2.7 58.6 8960
3×240 2.2 1.8 2.9 66.1 11610
3×300 2.2 1.8 3.4 71.9 13490
4×1.5 1.0 1.1 1.3 15.7 350
4×2.5 1.0 1.1 1.3 16.6 425
4×4 1.0 1.1 1.4 18.1 590
4×6 1.0 1.1 1.4 19.5 725
4×10 1.0 1.1 1.5 22.1 955
4×16 1.0 1.2 1.6 25.2 1375
4×25 1.2 1.2 1.7 30.0 1965
4×35 1.2 1.2 1.8 32.4 2410
4×50 1.4 1.4 2.0 37.3 3365
4×70 1.4 1.4 2.2 42.1 4580
4×95 1.6 1.4 2.4 48.2 6020
4×120 1.6 1.6 2.5 52.7 7440
4×150 1.8 1.6 2.9 58.3 8800
4×185 2.0 1.6 3.1 64.0 10760
4×240 2.2 1.8 3.4 72.4 13890
4×300 2.4 1.8 3.7 79.8 17405
5×1.5 1.0 1.1 1.3 16.7 420
6×1.5 1.0 1.1 1.3 17.8 495
7×1.5 1.0 1.1 1.3 17.8 540
8×1.5 1.0 1.1 1.5 20.3 645
9×1.5 1.0 1.1 1.5 21.5 675
10×1.5 1.0 1.1 1.5 21.8 705
12×1.5 1.0 1.1 1.5 22.5 805
14×1.5 1.0 1.1 1.6 23.6 860
16×1.5 1.0 1.1 1.7 24.9 940
19×1.5 1.0 1.1 1.7 26.0 1100
20×1.5 1.0 1.1 1.7 27.2 1130
23×1.5 1.0 1.1 1.8 29.3 1285
24×1.5 1.0 1.1 1.8 30.0 1305
27×1.5 1.0 1.1 1.9 30.8 1460
30×1.5 1.0 1.1 1.9 31.8 1520
33×1.5 1.0 1.2 2.0 33.5 1670
37×1.5 1.0 1.2 2.0 34.6 1840
44×1.5 1.0 1.2 2.2 39.2 2210
5×2.5 1.0 1.1 1.4 18.0 555
6×2.5 1.0 1.1 1.4 19.2 590
7×2.5 1.0 1.1 1.4 19.2 655
8×2.5 1.0 1.1 1.5 21.8 775
9×2.5 1.0 1.1 1.6 23.3 785
10×2.5 1.0 1.1 1.6 23.6 865
12×2.5 1.0 1.1 1.6 24.5 955
14×2.5 1.0 1.1 1.7 25.5 1070
16×2.5 1.0 1.1 1.7 26.7 1155
19×2.5 1.0 1.1 1.8 28.2 1360
20×2.5 1.0 1.1 1.8 29.5 1410
23×2.5 1.0 1.1 1.9 31.8 1610
24×2.5 1.0 1.2 2.0 33.2 1690
27×2.5 1.0 1.2 2.0 33.9 1815
30×2.5 1.0 1.2 2.0 34.9 1960
33×2.5 1.0 1.2 2.1 36.7 2190
37×2.5 1.0 1.2 2.1 38.0 2370
44×2.5 1.0 1.2 2.3 42.6 2795
