 Cable Material Rodante
EN 50382 High Temperature Cable
FIREROL FRL-HT-3S/FRL-HT-6S
1.8/3 kV or 3.6/6 kV - High Temperature Single Core Sheathed cables

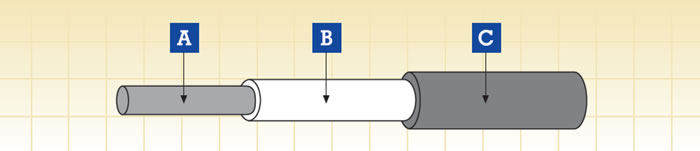

A.Conductor B.Insulation C.Sheath
Construcción
Conductor
Flexible tinned annealed copper wires (red copper only for 150° C core temperature) class 5 according to HD 383
Aislamiento
Silicon rubber according to EN 50382-1 (EI 112)
Vaina exterior
LSZH elastomeric compound according to EN 50382-1 (EM 105. EM 106 or EM 107)
Eléctrica & Propiedades mecánicas
| Voltaje nominal |
1.8/3 kV or 3.6/6 kV |
| Temperatura máxima de conductor |
+90 deg (fixed installation) |
| Mínima admisible de temperatura ambiente |
-25/-40 deg (fixed installation) |
| Radio de flexión |
3 x Overall Diameter (D<12mm); |
| |
4 x Overall Diameter (D>12mm) |
Chemical & Environmental Properties
| EN 60684-2 |
No fluorine |
| EN 50305; EN 60811-2-1 |
Resistance to oil & fuel |
| EN 50305 |
Resistance to ozone |
Fire Performance for rolling stock application
| EN 50306-2 |
Hazard levels HL1, HL2/HL3, HL4 |
| DIN 5510-2 |
Protection level 1/2/3/4 |
| BS 6853 |
Interior use 1a, 1b, II; Exterior use 1a, 1b, II |
| NF F 16-101 |
FO |
Fire Performance in general
| EN 50265-2-1; IEC 60332-1; BS 4066-1 |
Vertical flame propogation for a single insulated wire or cable |
| EN 50266-2-4 + EN 50305; IEC 60332-3C; |
Fire propagation of bunched wires and cables; |
| VDE 0472 Teil 804; BS 4066-3; NFC 32070 |
|
| EN 50268-2; IEC 61034-2; VDE 0472 Teil 816 |
Smoke density |
| EN 50267-2-1; IEC 60754-1; VDE 0472 Teil 815 |
Halogen Free |
| EN 50267-2-2/3; IEC 60754-2; VDE 0472 Teil 813 |
Corrosivity of gases (Acidity & Conductivity) |
| EN 50305; NFX 70-100; NFF 63808; TM1-04; BS6853 |
Toxicity index |
| NFF 16101; NFF 63808; BS6853 |
Smoke index |
FRL-HT-3S 1.8/3KV
Nominal de sección |
conductor de diámetro (a) |
min. Significa espesor de aislamiento |
min. Significa espesor de aislamiento |
Diámetro total |
peso |
Resistencia de los conductores a 20 ° C |
min.aislamiento de resistencia |
min |
max |
conservasconductor
|
plain conductor |
en
+20℃min. |
en
+150℃min. |
mm2 |
mm |
mm |
mm |
mm |
mm |
kg/km |
Ω/km |
Ω/km |
MΩ·km |
MΩ·km |
1.5 |
1.5 |
1.3 |
1.4 |
6.8 |
7.9 |
70 |
13.7 |
13.3 |
670 |
1.30 |
2.5 |
1.95 |
1.3 |
1.4 |
7.2 |
8.4 |
80 |
8.21 |
7.98 |
570 |
1.10 |
4 |
2.5 |
1.3 |
1.4 |
7.7 |
9.0 |
100 |
5.09 |
4.95 |
480 |
0.90 |
6 |
3.0 |
1.3 |
1.4 |
8.2 |
9.6 |
120 |
3.39 |
3.30 |
420 |
0.80 |
10 |
3.9 |
1.5 |
1.4 |
9.4 |
11.0 |
190 |
1.95 |
1.91 |
380 |
0.70 |
16 |
5.0 |
1.5 |
1.4 |
10.5 |
12.2 |
240 |
1.24 |
1.21 |
310 |
0.60 |
25 |
6.4 |
1.8 |
1.4 |
12.3 |
14.4 |
340 |
0.795 |
0.780 |
300 |
0.60 |
35 |
7.7 |
1.8 |
1.4 |
13.6 |
15.9 |
440 |
0.565 |
0.554 |
250 |
0.50 |
50 |
9.2 |
1.8 |
1.4 |
15.0 |
17.5 |
580 |
0.393 |
0.386 |
220 |
0.40 |
70 |
11.0 |
1.8 |
1.5 |
16.8 |
19.7 |
780 |
0.277 |
0.272 |
200 |
0.40 |
95 |
12.5 |
2.2 |
1.5 |
19.0 |
22.2 |
1020 |
0.210 |
0.206 |
190 |
0.40 |
120 |
14.2 |
2.2 |
1.6 |
20.8 |
24.3 |
1270 |
0.164 |
0.161 |
180 |
0.30 |
150 |
15.8 |
2.2 |
1.6 |
22.3 |
26.1 |
1560 |
0.132 |
0.129 |
160 |
0.30 |
185 |
17.5 |
2.4 |
1.7 |
24.5 |
28.6 |
1890 |
0.108 |
0.106 |
160 |
0.30 |
240 |
20.1 |
2.4 |
1.8 |
27.1 |
31.7 |
2480 |
0.0817 |
0.0801 |
140 |
0.20 |
300 |
22.5 |
2.4 |
1.9 |
29.5 |
34.6 |
2990 |
0.0654 |
0.0641 |
120 |
0.20 |
400 |
25.8 |
2.6 |
2.0 |
33.2 |
38.9 |
4010 |
0.0495 |
0.0486 |
120 |
0.20 |
FRL-HT-6S 3.6/6kV
Nominal de sección |
conductor de diámetro(a) |
MIN. Significa espesor de aislamiento |
MIN. Significa espesor de aislamiento |
Diámetro total |
peso |
Resistencia de los conductores a 20 ° C |
min.aislamiento de resistencia |
min |
max |
conservasconductor
|
plain conductor |
en
+20℃MIN. |
en +150℃MIN. |
mm2 |
mm |
mm |
mm |
mm |
mm |
kg/km |
Ω/km |
Ω/km |
MΩ·km |
MΩ·km |
2.5 |
1.95 |
2.6 |
1.4 |
9.9 |
11.6 |
130 |
8.21 |
7.98 |
870 |
1.70 |
4 |
2.5 |
2.6 |
1.4 |
10.4 |
12.2 |
150 |
5.09 |
4.95 |
750 |
1.50 |
6 |
3.0 |
2.6 |
1.4 |
10.9 |
12.8 |
180 |
3.39 |
3.30 |
670 |
1.30 |
10 |
3.9 |
2.6 |
1.4 |
11.8 |
13.8 |
240 |
1.95 |
1.91 |
570 |
1.10 |
16 |
5.0 |
2.6 |
1.4 |
12.8 |
15.0 |
300 |
1.24 |
1.21 |
480 |
0.90 |
25 |
6.4 |
2.9 |
1.4 |
14.7 |
17.2 |
410 |
0.795 |
0.780 |
430 |
0.80 |
35 |
7.7 |
2.9 |
1.4 |
15.9 |
18.6 |
510 |
0.565 |
0.554 |
380 |
0.70 |
50 |
9.2 |
2.9 |
1.5 |
17.5 |
20.5 |
660 |
0.393 |
0.386 |
330 |
0.60 |
70 |
11.0 |
2.9 |
1.5 |
19.2 |
22.4 |
870 |
0.277 |
0.272 |
280 |
0.50 |
95 |
12.5 |
2.9 |
1.6 |
20.8 |
24.3 |
1100 |
0.210 |
0.206 |
250 |
0.50 |
120 |
14.2 |
2.9 |
1.6 |
22.4 |
26.2 |
1330 |
0.164 |
0.161 |
230 |
0.40 |
150 |
15.8 |
2.9 |
1.7 |
24.1 |
28.2 |
1640 |
0.132 |
0.129 |
210 |
0.40 |
185 |
17.5 |
3.2 |
1.8 |
26.4 |
30.9 |
1990 |
0.108 |
0.106 |
210 |
0.40 |
240 |
20.1 |
3.4 |
1.9 |
29.4 |
34.4 |
2620 |
0.0817 |
0.0801 |
190 |
0.30 |
300 |
22.5 |
3.4 |
1.9 |
31.7 |
37.1 |
3120 |
0.0654 |
0.0641 |
170 |
0.30 |
400 |
25.8 |
3.4 |
2.0 |
35.0 |
40.9 |
4150 |
0.0495 |
0.0486 |
150 |
0.30 |
|
