EN 50306 Thin Wall Instrumentation & Control Cable
FIREROL FRL-TW-05SU
300/500 V - single core

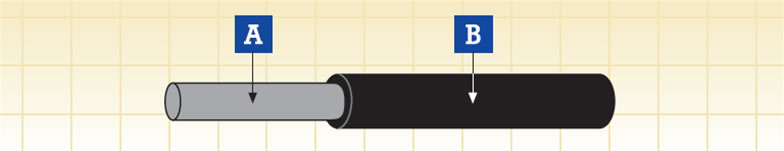

A.Conductor B.Insulation
Solicitud
-Used as power and control cable for protected installations inside and outside of rail and transport vehicles, where handling and installation cost are an important factor.
-Used in control, auxillary and main circuit wiring such as cable harnesses, switchboards and control panels, driver desks etc.
Construcción
Conductor
Tinned annealed copper wires as defined in EN 50306-2
Aislamiento
LSZH special compound
Electrical & Mechanical Properties
| Voltaje nominal |
300/500 V |
| Temperatura máxima de conductor |
+120/+150 deg (fixed installation) |
| Mínima admisible de temperatura ambiente |
-25/-40 deg (fixed installation) |
| Radio de flexión |
3 x Overall Diameter |
Chemical & Environmental Properties
| EN 60684-2 |
No fluorine |
| EN 50305; EN 60811-2-1 |
Resistance to oil & fuel |
| EN 50305 |
Resistance to ozone |
Fire Performance for rolling stock application
| EN 50306-2 |
Hazard levels HL1, HL2/HL3, HL4 |
| DIN 5510-2 |
Protection level 1/2/3/4 |
| BS 6853 |
Interior use 1a, 1b, II; Exterior use 1a, 1b, II |
| NF F 16-101 |
FO |
Fire Performance in general
| EN 50265-2-1; IEC 60332-1; BS 4066-1 |
Vertical flame propogation for a single insulated wire or cable |
| EN 50266-2-4 + EN 50305; IEC 60332-3C; |
Fire propagation of bunched wires and cables; |
| VDE 0472 Teil 804; BS 4066-3; NFC 32070 |
|
| EN 50268-2; IEC 61034-2; VDE 0472 Teil 816 |
Smoke density |
| EN 50267-2-1; IEC 60754-1; VDE 0472 Teil 815 |
Halogen Free |
| EN 50267-2-2/3; IEC 60754-2; VDE 0472 Teil 813 |
Corrosivity of gases (Acidity & Conductivity) |
| EN 50305; NFX 70-100; NFF 63808; TM1-04; BS6853 |
Toxicity index |
| NFF 16101; NFF 63808; BS6853 |
Smoke index |
FRL-TW-05SU 300/500 V
Nominal de la sección transversal zona |
Número X diámetro nominal del alambre |
diámetro |
Espesor de aislamiento |
Diámetro total |
peso |
Resistencia de los conductores a 20 ° C |
mm2 |
mm |
min |
max |
min |
min |
max |
max |
mm |
mm |
mm |
mm |
mm |
kg/km |
Ω/km |
0.5 |
19 x 0.18 |
0.80 |
0.95 |
0.18 |
1.15 |
1.45 |
7 |
40.1 |
0.75 |
37 x 0.16(a) |
1.00 |
1.15 |
0.18 |
1.35 |
1.65 |
8 |
26.7 |
1.0 |
37 x 0.18(a) |
1.10 |
1.30 |
0.18 |
1.45 |
1.80 |
10 |
20.0 |
1.5 |
37 x 0.23(a) |
1.45 |
1.65 |
0.22 |
1.95 |
2.30 |
20 |
13.7 |
2.5 |
37 x 0.30(a) |
1.85 |
2.15 |
0.28 |
2.50 |
2.85 |
25 |
8.21 |
-This cable may be supplied in 19 strand conductor providing all product performance requirements in the specification are met
|
