 Cables de Fibra óptica
Central Loose Tube Cable
Solicitud
This cable is characterized by light weight and small diameter, suitable for both aerial and duct installation. The cable can also be used for direct burial for armoured option.
Descripción
Central loose tube cable contains one tube with 2 - 24 fibers, which is filled with water blocking gel. Either aramid yarn or fiber glass is wound around the tube to provide physical protection and tensile strength. The cable can be jacketed with either PE or LSZH. PE is the preferred option in outdoor environment for water protection purpose. For direct burial, either steel wire armour or corrugated steel tape armour is applied with an optional inner jacket of either PVC, PE or LSZH. An Aluminium moisture tape can be incorporated under the jacket for water blocking and shielding purpose. A ripcord is located under the jacket to facilitate jacket removal.

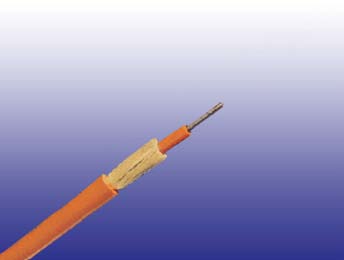

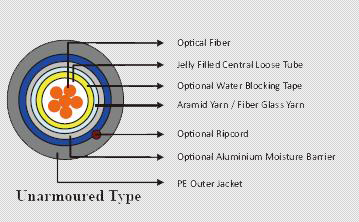

Construcción
Propiedades Físicas
Fibra Conde |
Peso nominal(kg/km) |
Peso nominal(lb/kft) |
Diámetro exterior nominal(mm) |
Diámetro exterior nominal(in) |
Si tira de carga máxima |
Instalación(N/Ib) |
En el Servicio de(N/Ib) |
2-12 |
60.0 |
40.27 |
7.5 |
0.296 |
1500/337 |
445/100 |
14-24 |
65.0 |
43.62 |
8.5 |
0.335 |
1500/337 |
445/100 |

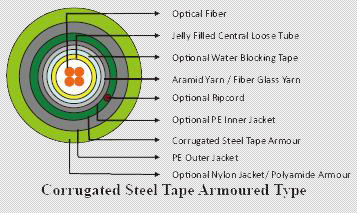

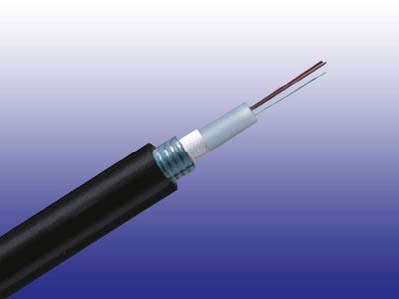

Construcción
Propiedades Físicas
Fibra Conde |
Peso nominal(kg/km) |
Peso nominal(lb/kft) |
Diámetro exterior nominal(mm) |
Diámetro exterior nominal(in) |
Si tira de carga máxima |
Instalación(N/Ib) |
En el Servicio de(N/Ib) |
2-12 |
125．0 |
83．89 |
10．5 |
0．414 |
2670/600 |
890/200 |
14-24 |
145．0 |
97．32 |
12．0 |
0．473 |
2670/600 |
890/200 |

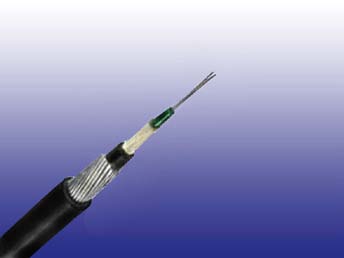

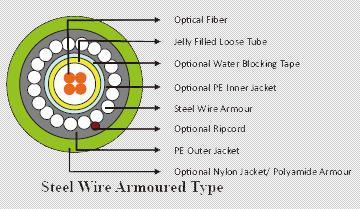

Construcción
Propiedades Físicas
Fibra Conde |
Peso nominal(kg/km) |
Peso nominal(lb/kft) |
Diámetro exterior nominal(mm) |
Diámetro exterior nominal(in) |
Si tira de carga máxima |
Instalación(N/Ib) |
En el Servicio de(N/Ib) |
2-12 |
170.0 |
114.09 |
10.5 |
0.414 |
8000/1800 |
2650/595 |
14-24 |
245.0 |
164.43 |
12.0 |
0.473 |
8000/1800 |
2650/595 |
Propiedades mecánicas
| Radio de curvatura mínima: |
|
Compresión de carga máxima: |
3000N |
| En virtud de instalación: |
20×OD |
Impacto repetido: |
4.4 N.m (J) |
| Durante la operación |
10×OD for unarmoured cables |
Twist (torsión): |
180×10 times, 125×OD |
| |
20×OD for armoured cables |
Flexión cíclica: |
25 cycles for armoured cables. |
| Gama de temperatura: |
|
|
100 cycles for unarmoured cables. |
| Rango de temperaturas de funcionamiento: |
-40℃(-40℉) to +70℃(+158℉) |
Crush Resistencia: |
263N/cm (150lb/in) |
| Rango de Temperatura de almacenamiento: |
-50℃(-58℉) to +70℃(+158℉) |
|
|
Fibra de Cumplimiento
Temperatura Ciclismo
Resistencia a la tracción
Crush
Impacto
Flexión repetida
De torsión
Kink
Cable Bend
Cool Bend |
IEC60794-1-2-F2
IEC60794-1-2-E1A
IEC60794-1-2-E3
IEC60794-1-2-E4
IEC60794-1-2-E6
IEC60794-1-2-E7
IEC60794-1-2-E10
IEC60794-1-2-E11
IEC60794-1-2-E11 |
Cumplimiento de Seguridad
General Purpose Grado |
Flammability Test: OFN (UL1581) |
Riser Grado |
Flammability Test: OFNR/FT4 (UL1666) |
Pleno de Grado |
Flammability Test: OFNP/FT6 (UL 910) |
FRPVC Grado |
Flammability Test: IEC60332-1 |
LSZH Grado |
Halogen Content Test: IEC 60754-1
Acidity Test: IEC 60754;
Smoke Emission Test: IEC61034-1/2 |
LSFROH Grado |
Halogen Content Test: IEC 60754-1
Acidity Test: IEC 60754;
Smoke Emission Test: IEC61034-1/2
Flammability Test: IEC60332-1 & IEC 60332-3C/A |
FR Grado |
Fire Resistance Test : IEC 60331 / BS 6387 CWZ |
Norma de Cumplimiento
Telcordia GR-20 RUS 7 CFR 1755.900 (REA PE-90) ICEA S 87-640
Características
•Loose Tube construction provides environmental protection
•Loose tube jelly filled for superior fiber protection
•Colored coded fibers and binders for quick and easy identification during installation.
•Very lightweight and flexible design allows for easy installation
•UV or moisture resistant for outdoor application
•Compact design with small cable diameter
•All Dielectric strength member
•Anti-termite and rodent protection as options
•Optional Aluminium moisture barrier for EMI protection
|
