2X(2C1.5mm2) Audio Cable + Cat6 F/UTP LSZH Sheathed Unarmoured Composite Cable

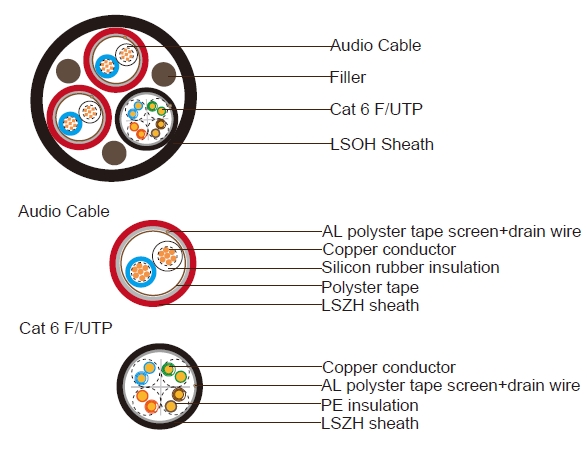

Construction:

2X(2C1.5mm2) Audio Cable + Cat6 F/UTP LSZH Sheathed Unarmoured Composite Cable

2Cx1.5mm² Audio Cable

Conductor:1.5mm2 Stranded copper wire, class 5 to IEC60228.

Insulation:Fire resistant silicone rubber compound.Nominal thickness 0.8mm.

Insulation Color:White and blue.

Screen:Alumminum tape with tinned copper drain wire.

Sheath:LSZH sheath. Nominal thickness 1.0 mm.

Sheath Color:Red.

General Standard:Basic design to EN50288-7.

Cat 6 F/UTP

Conductor:24 AWG stranded plain copper.

Insulation:PE material. Nominal diameter is 0.97mm.

Insulation Color:White-orange,Orange;White-blue,Blue;

                            White-green,Green;White-brown,Brown.

Screen:Alumminum tape with tinned copper drain wire.

Sheath:LSZH sheath. Nominal overall diameter is 6.5 mm.

Sheath Color:Black or Grey or Blue. Other colors also available upon request.

Applications:IEEE 802.3: 10Base-T; 100Base-T; 1000Base-T;IEEE 802.5 16 MB; ISDN; TPDDI; ATM.

Standards:ISO/IEC 11801, IEC 61156-5,EN 50173,ANSI/TIA 568B.

Element Assembly

Filler:PP material .

Wrapping Tape:Polyester tape or woven tape.

Outer Sheath:High flexible LSZH. Nominal thickness 1.8mm.

Sheath Color:Black. Other colors also available upon request.

Electrical and Physical Properties@20°C:

Audio Cable

Max.Electrical Resistance: 12.3Ohm/km

Min. Insulation Resistance: 1000 MOhm/km

Operating Temperature: -20°C/+90°C

Voltage rating: 300/500V

Insulation spark test: 7000 V r.m.s./H.F.

Max. Attenuation: 0.88 dB/km @800HZ

Max. Inductance:0.75mH/km

Cat6 F/UTP (1-250MHz)

Max.Electrical Resistance: 93.8 Ohm/km

Min.Insulation Resistance: 2000 MOhm/km

Operating Temperature: -20°C/+70°C

Max.Resistance Unbalance: 5%

Max. Mutual Capacitance: 5.6nF/100m

Max. Capacitance Unbalance: 330pF/100m

Characteristic Impedance : 100 ± 15 (1-250MHz)

Nominal Velocity of Propagation: 69%

Max. Propagation Delay : 536ns/100m@100MHz

Max.Propagation Delay skew : 45ns/100m(1-125MHz)

Test voltage (DC, 1 min)

Core/Core : 1000V

Fire Performance:

Audio Cable

Fire Resistance : IEC60331

Flame Retardance : IEC60332-1-2

Fire Propagation : IEC60332-3-22

Halogen Free:IEC60754-1/2

Low Smoke Capacity:IEC61034-1/2

Oxygen Index :ISO 4589-2

Temperature Index :ISO 4589-3

Cat6 F/UTP

Flame Retardance : IEC60332-1-2

Fire Propagation : IEC60332-3-22

Halogen Free:IEC60754-1/2

Low Smoke Capacity:IEC61034-1/2

Oxygen Index :ISO 4589-2

Temperature Index :ISO 4589-3

Element Assembly

Flame Retardance : IEC60332-1-2

Fire Propagation : IEC60332-3-22

Halogen Free:IEC60754-1/2

Low Smoke Capacity:IEC61034-1/2

Oxygen Index :ISO 4589-2

Temperature Index :ISO 4589-3

Note: Other configurations, sizes, colors and length not specified herein are available upon request.
