Composite Cables
Power Cable+RS 485+Belden 9104+Fiber Optic Cable Aluminium Wire Braid Armored Composite Cable
Application:
Armoured Fiber Copper Composite Cable that can transmit power and various signals through a single cable.The
cable comes with a steel wire braiding armouring to protect it from rodent attack. Also, both the inner and outer
Low Smoke Zero Halogen (LSZH) jackets provide the flame-retardant capability to the cable in the event of a fire
breakout.

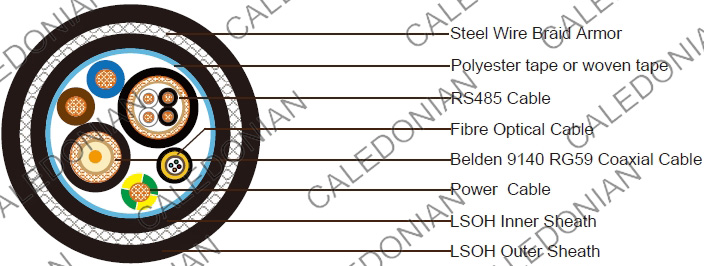

Construction:
3x12AWG Power Cable
Conductor:12AWG (19/0.455mm stranded copper wire
Insulation:XLPE compound. Nominal outer diameter 3.75mm
Insulation Color:Blue, Brown and Green/Yellow
2 Pair 24AWG RS485
Conductor:24AWG (7/0.2mm stranded copper to IEC228 Class 2
Insulation:PE material. Thickness 0.8mm
Shield:Aluminium polyester tape with 24 AWG stranded tinned copper drain wire
Braid:Copper wire braiding
Sheath:LSZH sheath. Nominal outer diameter is 9.0mm
Sheath Color:Black
Belden 9104 RG59 Coaxial Cable
Conductor:20AWG bare copper covered steel wire
Insulation:Foam high density polyethylene. Norminal outer diameter 3.66mm
Shield:Aluminium foil with 100% coverage
Braid:Aluminium wire braiding with 67% coverage
Sheath:PVC sheath. Norminal outer diameter 6.02mm
Sheath Color:Black
4 Core Central Loose Tube Fiber Optic Cable
Optical Fiber:Multi-mode cabled fibers meet or exceed the requirements of ITUT G.651 specification
Loose Tube:PBT tubes1.80±0.1mm outer diameter, contains 4 fibers. The tubes are filled with a thixotropic gel to
prevent the ingress of water
Aramid Yarn:Aramid Yarn is laid over the tube core to serve as peripheral strength member
Sheath:LSZH outer Sheathis extruded over the glass yarn. Nominal outer diameter is about 3.40mm
Sheath Color:Black
Element Assembly
Wrapping Tape:Polyester tape or woven tape
Inner Jacket:Black LSZH, thickness 1.20mm
Armor:Steel wire braid, coverage 80%
Sheath:LSZH, thickness 1.80mm, nominal outer diameter 22.0±2.0mm
Sheath Color: Black
Optical Characteristics
Optical Fiber
The Multi-mode fibers meet the ITU G.651 specification, as listed below:
| Property | 50/125 fibers | 62.5/125 fibers |
|---|---|---|
| Attenuation @ 850 nm (dB/km) | ≤3.0 | ≤3.2 |
| Attenuation @ 1300 nm (dB/km) | ≤1.0 | ≤1.2 |
| Added Attenuation with Bending | ≤0.5 dB (850 and 1300 nm for 100 turns around a 75 mm mandrel | |
| Numerical Aperture | 0.20 ±0.02 | 0.275±0.015 |
| Bandwidth @ 850 nm | 400 MHz*km | 160 MHz*km |
| Bandwidth @ 1300 nm | 800 MHz*km | 500 MHz*km |
| Core diameter | 50±3μm | 62.5 ±3μm |
| Cladding diameter | 125±2μm | |
| Core-Claddingoffset | ≤6% | |
| Cladding non-circularity | ≤2% | |
| Core non-circularity | ≤6% | |
| Coating diameter | mm245±10 | |
| Coating / Cladding offset | 12μm | |
| Proof Test | ≥0.69 GN/m2 (100 kpsi) | |
The fibers contain no splices.
Note: Other configurations, sizes, colors and length not specified herein are available upon request.
