1x RG59 + 3x2.5 Power Cable + 2x1x2x24AWG Data Pairs SWB LSZH Sheathed Fire Resistant & Mud

Resistant Composite Cable

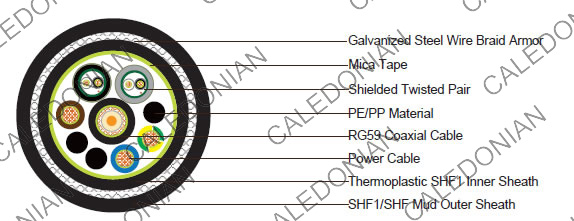

Construction:

RG59 Composite Cable

1x75Ohm RG59 Coaxial Cable

Conductor:0.58mm Solid copper conductor

Insulation:Polyethylene. Thickness 1.56mm

Shield:Braid of bare copper wire. Coverage ≥ 95%

Fire Barrier:Mica tape

Sheath:FRLSZH sheath. Nominal outer diameter 6.7mm

Sheath Color:Black

2x1x2x24AWG Shielded Twisted Pair (around coaxial cable)

Conductor:7/0.2mm Stranded tinned copper

Insulation:XLPE. Thickness 0.7mm

Fire Barrier:Mica tape

Insulation Color:Black and white

Shield :Aluminium polyester tape

Drain Wire:24 AWG stranded tinned copper drain wire

Sheath:FRLSZH sheath. Nominal outer diameter 8.5mm. Thickness 0.8mm

Sheath Color:Black

3x2.5mm² Power Cable( around coaxial cable)

Conductor:2.5mm² Stranded tinned copper wire

Fire Barrier:Mica tape

Insulation:XLPE. Nominal outer diameter 4.2mm

Insultion Color:Blue, Brown and Green/Yellow

Element Assembly

Inner Sheath:PE or PP material

Fire Barrier:Mica tape

Inner Sheath:Thermoplastic SHF1, black, thickness 1.5mm

Armor:Galvanized steel wire braid, coverage 95%

Outer Sheath:SHF1/SHF Mud, thickness 1.5mm, nominal outer diameter 31.0±2.0mm

Sheath Color:Black

Electrical and Physical Properties @20°C:

Coaxial Cable

Impedance: 75±3Ohm (@1MHz)

Max. Attenuation: 7.5dB/100m @50MHz

Power Cable

Electrical Resistance: 12.1Ohm/km

Insulation Resistance: ≥5500 MOhmxkm

Data Pairs

Electrical Resistance: 90Ohm/km

Insulation Resistance:≥1000 MOhmxkm

Element Assembly:

Min Bending Radius: 420mm

Operating Temperature:-30°C/+80°C

Fire Performance:

Low Smoke Capacity: IEC61034-1/2

Halogen Free: IEC60754-1/2

Flame Propagation:IEC60332

Fire Resistant:IEC60331

Mud Resistant:NEK606

Note: Other configurations, sizes, colors and length not specified herein are available upon request.
