 Composite Cables

3x12AWG Power Cable + 2x(1x2x22AWG) Data Pairs + 4 Core Fiber Optic Cable SWB LSZH Composite

Cable

Application:

Armoured Fiber Copper Composite Cable that can transmit power and various signals through a single cable.The

cable comes with a steel wire braiding armouring to protect it from rodent attack. Also, both the inner and outer

Low Smoke Zero Halogen (LSZH) jackets provide the flame-retardant capability to the cable in the event of a fire

breakout.

Construction:

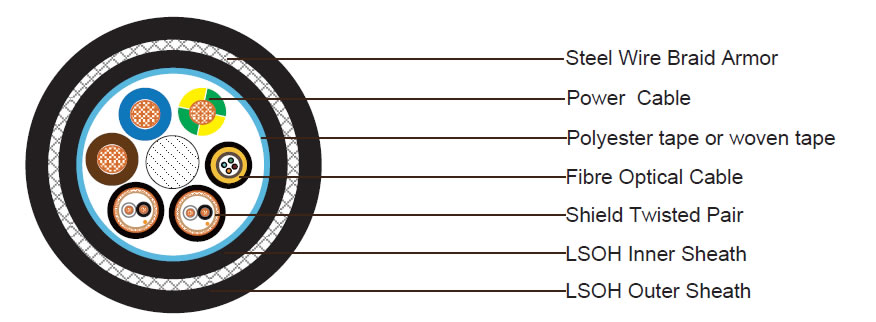

3x12AWG Power Cable + 2x(1x2x22AWG) Data Pairs + 4 Core Fiber Optic Cable SWB LSZH Composite Cable

3x12AWG Power Cable

Conductor:12AWG stranded tinned copper to IEC60228 Class 2

Insulation:XLPE compound. Nominal outer diameter 3.75mm

Insulation Color:Blue, Brown and Green/Yellow

2x(1x2x22AWG) Shielded Twisted Pairs

Conductor:22AWG stranded tinned copper to IEC60228 Class 2

Insulation:PE material. Thickness 0.4mm

Insulation Color:Black and White

Shield:Aluminium polyester tape with 24 AWG stranded tinned copper drain wire

Sheath:LSZH sheath. Nominal outer diameter is 4.8mm

Sheath Color:Black and Grey

4 Core Central Loose Tube Fiber Optic Cable

Optical Fiber:Multi-mode cabled fibers meet or exceed the requirements of ITUT G.651 specification

Loose Tube:PBT tubes contains 4 fibers. The tubes are filled with a thixotropic gel to prevent the ingress of

water

Aramid Yarn:Aramid Yarn is laid over the tube core to serve as peripheral strength member

Sheath:LSZH outer Sheathis extruded over the glass yarn. Nominal outer diameter is about 5.0mm

Sheath Color:Black

Element Assembly

Wrapping Tape:Polyester tape or woven tape

Inner Jacket:Black LSZH, thickness 1.0mm

Armor:Galvanized steel wire braid, coverage 95%

Sheath:FR-LSZH, thickness 1.6mm, nominal outer diameter 19.5±1.5mm

Sheath Color:Black

Note: Other configurations, sizes, colors and length not specified herein are available upon request.
