Water Blocked P7 or P7/P14 BFOU 6/10kV

Marine cables are partially water blocked, fire resistant, flame retardant, low smoke, halogen free and mud
resistant, used for fixed installation for medium voltage power.

IEC 60092-354

IEC 60092-360

IEC 60332-1

IEC 60331-21

IEC 60332-3-22

IEC 60754-1,2

IEC 61034-1,2

NEK 606

VG 95218 part 29

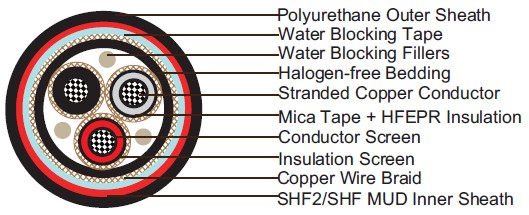

Water Blocked P7r P7/P14 BFOU 6/10kV

Conductors: Circular tinned annealed stranded copper to IEC 60228 class 2.
Conductor Screen: Semi conducting material.
Insulation: Mica tape + Halogen free EPR.
Insulation Screen: Semi conducting material and tinned copper wire braid.
Filler: Water blocking fillers, if required.
Bedding: Halogen free compound, PETP wrapping tape will be applied over the bedding, if required.
Armour: Tinned copper wire braid, PETP wrapping tape will be applied over the braiding, if required.
Water Blocking Elements: Water blocking tape and strings for providing longitudinal water tightness.
Inner Sheath: Halogen free thermosetting compound, SHF2 (for TYPE P7), or halogen free mud resistant
thermosetting compound, SHF MUD (for TYPE P7/P14), coloured red.
Outer Sheath: Polyurethane for providing transversal water tightness, PE is optional,but can not meet low
smoke standard.

Nominal Cross Section Area	mm²	25	35	50	70	95	120	150
Nominal Conductor Diameter	mm	6.5	7.4	8.7	10.3	12.2	13.8	15.1
Maximum DC Resistant@20℃	Ω/km	0.734	0.529	0.391	0.27	0.195	0.154	0.126
Continuous Current Rating@45℃1 Core	A	127	157	196	242	293	339	389
Continuous Current Rating@45℃3 Core	A	89	110	137	169	205	237	272
Short Circuit Current 1s	A	3580	5010	7150	10020	13590	17170	21460
Operating Voltage	KV	6/10	6/10	6/10	6/10	6/10	6/10	6/10

Nominal Cross Section Area	mm²	185	240	300	400	500	630
Nominal Conductor Diameter	mm	17.0	19.6	21.9	24.5	27.5	32.3
Maximum DC Resistant@20℃	Ω/km	0.1	0.0762	0.0607	0.0475	0.0369	0.0286
Continuous Current Rating@45℃1 Core	A	444	522	601	690	780	890
Continuous Current Rating@45℃3 Core	A	311	365	421	483	546	623
Short Circuit Current 1s	A	26470	34340	42930	57230	71540	90140
Operating Voltage	KV	6/10	6/10	6/10	8.7/15	8.7/15	8.7/15

Ambient Temperature Correction Factors	35	40	45	50	55	60	65	70	75	80
Rating Factor	1.1	1.05	1.0	0.94	0.88	0.82	0.74	0.67	0.58	0.47

Bending Radius :15×OD (during installation); 9×OD (fixed installed).

Temperature Range : -20℃ ~ +90℃.

Construction No. of cores×Cross section mm²	Nominal Insulation Thickness mm	Nominal Bedding Thickness mm	Nominal Inner Sheath Thickness mm	Nominal Outer Sheath Thickness mm	Nominal Overall Diameter mm
Construction No. of cores×Cross section mm²	Nominal Insulation Thickness mm	Nominal Bedding Thickness mm	Nominal Inner Sheath Thickness mm	Nominal Outer Sheath Thickness mm	Nominal Overall Diameter mm	Nominal Weight kg/km
1×16	3.4	1.5	1.2	1	27.6±2	1040
1×25	3.4	1.6	1.2	1.2	29.5±2	1208
1×35	3.4	1.7	1.2	1.2	30.9±2	1386
1×50	3.4	1.7	1.3	1.2	32.3±2	1575
1×70	3.4	1.8	1.3	1.2	34.3±2	1901
1×95	3.4	1.8	1.4	1.4	36.8±2	2268
1×120	3.4	1.9	1.4	1.4	38.9±2	2741
1×150	3.4	2	1.5	1.4	40.9±2	3140
1×185	3.4	2	1.5	1.4	42.7±2	3612
1×240	3.4	2.2	1.6	1.6	46.3±2	4389
1×300	3.4	2.3	1.7	1.6	49.1±2	5177
1×400	3.4	2.4	1.7	1.6	52.2±2	6195
1×500	3.4	2.5	1.8	1.6	55.7±2	7424
1×630	3.4	2.7	1.9	1.6	60.2±2	9125
3×16	3.4	2.4	1.8	1	52.2±2	3969
3×25	3.4	2.5	1.8	1.2	55.6±2	4599
3×35	3.4	2.6	1.9	1.2	58.8±2	5292
3×50	3.4	2.7	2	1.2	61.7±2	6027
3×70	3.4	2.9	2.1	1.2	66.1±2	7245
3×95	3.4	3.1	2.2	1.4	71.2±2	8684
3×120	3.4	3.2	2.3	1.4	74.9±2	9944
3×150	3.4	3.3	2.4	1.4	78.8±2	11340
3×185	3.4	3.5	2.5	1.4	83.6±2	12989
3×240	3.4	3.7	2.7	1.6	91.4±2	15792
3×300	3.4	3.9	2.9	1.6	97.2±2	18323
