Railway Cables |  |
||||||||
|
||||||||||
|
||||||||||
0.6/1KV Limited Fire Hazard/Fire Survival Multicore
Armoured Cables to EME-SP-14-027
Application
The cables are designed for station range installation typically in public help points (PHP), public address (PA),
station announcement platforms (SAP) & CCTV camera power systems. The LSZH cables has been designed to
provide superior flame retardance and circuit integrity if necessary, suitable for installation where fire, smoke
emission and toxi fumes may create a potential threat.
Standards
EME SP 14 027 (LUL version of BS 6724 for fi re retardant version and BS 6387 for fi re resisting version)
UNE 21123

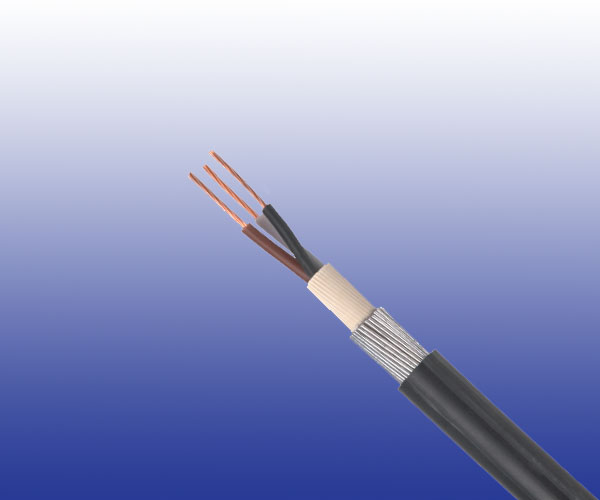

Construction
Conductors
tranded plain copper conductors to IEC 60228 class 2 or 5.
Fire Barrier Tape (optional)
Mica.
Insulation
XLPE insulation.
Bedding
LSZH bedding.
Armoured
SWA.
Outer Sheath
LSZH Sheath.
Electrical Characteristics at 20℃
| Nominal Conductor Cross Section | mm² | 2.5 | 4.0 | 6.0 | 10.0 | 16.0 | 25.0 | 35.0 | 50.0 |
|---|---|---|---|---|---|---|---|---|---|
| Maximum DC Conductor Resistance | Ω/km | 7.41 | 4.61 | 3.08 | 1.83 | 1.15 | 0.727 | 0.524 | 0.387 |
| Voltage Rating | KV | 0.45/0.75 | |||||||
| Nominal Conductor Cross Section | mm² | 70.0 | 95 | 120 | 150 | 185 | 240 | 300 |
|---|---|---|---|---|---|---|---|---|
| Maximum DC Conductor Resistance | Ω/km | 0.268 | 0.193 | 0.153 | 0.124 | 0.0991 | 0.0754 | 0.0601 |
| Voltage Rating | KV | 0.45/0.75 | ||||||
Mechanical and Thermal Properties
Minimum Bending Radius: 8×OD
Temperature Range: 0℃ to +90℃ (during operation);
0℃ to +70℃ (during installation)
Dimensions And Weight
Cables without fire barrier tape
| Cable Code | No. of cores& Nominal Conductor Cross Sectional Area No.×mm² |
No. & Nominal Diameter of Strands No/mm |
Nominal Sheath Thickness mm |
Nominal Overall Diameter mm |
Nominal Weight kg/km |
|---|---|---|---|---|---|
| RF14027-RZ1MZ1-U(AS)-0.6/1KV-2G2.5 | 2×2.5* | 7/0.67 | 1.4 | 12.2 | 323 |
| RF14027-RZ1MZ1-U(AS)-0.6/1KV-2G4 | 2×4.0* | 7/0.85 | 1.4 | 13.3 | 387 |
| RF14027-RZ1MZ1-U(AS)-0.6/1KV-2G6 | 2×6.0* | 7/1.04 | 1.4 | 14.4 | 460 |
| RF14027-RZ1MZ1-U(AS)-0.6/1KV-2G10 | 2×10.0* | 7/1.35 | 1.5 | 16.1 | 611 |
| RF14027-RZ1MZ1-U(AS)-0.6/1KV-2G16 | 2×16.0* | 7/1.70 | 1.5 | 18.7 | 904 |
| RF14027-RZ1MZ1-U(AS)-0.6/1KV-2G25 | 2×25.0 | 7/2.14 | 1.6 | 21.0 | 1050 |
| RF14027-RZ1MZ1-U(AS)-0.6/1KV-2G35 | 2×35.0 | 19/1.53 | 1.7 | 22.0 | 1450 |
| RF14027-RZ1MZ1-U(AS)-0.6/1KV-2G50 | 2×50.0 | 19/1.78 | 1.8 | 24.0 | 1800 |
| RF14027-RZ1MZ1-U(AS)-0.6/1KV-2G70 | 2×70.0 | 19/2.14 | 1.9 | 27.0 | 2300 |
| RF14027-RZ1MZ1-U(AS)-0.6/1KV-2G95 | 2×95.0 | 37/1.78 | 2.0 | 32.0 | 3250 |
| RF14027-RZ1MZ1-U(AS)-0.6/1KV-2G120 | 2×120.0 | 37/2.03 | 2.1 | 35.0 | 3950 |
| RF14027-RZ1MZ1-U(AS)-0.6/1KV-2G150 | 2×150.0 | 37/2.25 | 2.2 | 38.0 | 4650 |
| RF14027-RZ1MZ1-U(AS)-0.6/1KV-2G185 | 2×185.0 | 37/2.52 | 2.4 | 43.0 | 6050 |
| RF14027-RZ1MZ1-U(AS)-0.6/1KV-2G240 | 2×240.0 | 61/2.25 | 2.5 | 49.0 | 7500 |
| RF14027-RZ1MZ1-U(AS)-0.6/1KV-2G300 | 2×300.0 | 61/2.52 | 2.6 | 54.0 | 9050 |
| RF14027-RZ1MZ1-U(AS)-0.6/1KV-3G2.5 | 3×2.5* | 7/0.67 | 1.4 | 12.1 | 335 |
| RF14027-RZ1MZ1-U(AS)-0.6/1KV-3G4 | 3×4.0* | 7/0.85 | 1.4 | 13.3 | 430 |
| RF14027-RZ1MZ1-U(AS)-0.6/1KV-3G6 | 3×6.0* | 7/1.04 | 1.4 | 14.4 | 523 |
| RF14027-RZ1MZ1-U(AS)-0.6/1KV-3G10 | 3×10.0* | 7/1.35 | 1.5 | 17.0 | 811 |
| RF14027-RZ1MZ1-U(AS)-0.6/1KV-3G16 | 3×16.0* | 7/1.70 | 1.6 | 19.3 | 1072 |
| RF14027-RZ1MZ1-U(AS)-0.6/1KV-3G25 | 3×25.0 | 7/2.14 | 1.7 | 24.0 | 1750 |
| RF14027-RZ1MZ1-U(AS)-0.6/1KV-3G35 | 3×35.0 | 19/1.53 | 1.8 | 27.0 | 2000 |
| RF14027-RZ1MZ1-U(AS)-0.6/1KV-3G50 | 3×50.0 | 19/1.78 | 1.8 | 28.0 | 2450 |
| RF14027-RZ1MZ1-U(AS)-0.6/1KV-3G70 | 3×70.0 | 19/2.14 | 1.9 | 32.0 | 3250 |
| RF14027-RZ1MZ1-U(AS)-0.6/1KV-3G95 | 3×95.0 | 37/1.78 | 2.1 | 36.0 | 4500 |
| RF14027-RZ1MZ1-U(AS)-0.6/1KV-3G120 | 3×120.0 | 37/2.03 | 2.2 | 40.0 | 5350 |
| RF14027-RZ1MZ1-U(AS)-0.6/1KV-3G150 | 3×150.0 | 37/2.25 | 2.3 | 44.0 | 6900 |
| RF14027-RZ1MZ1-U(AS)-0.6/1KV-3G185 | 3×185.0 | 37/2.52 | 2.4 | 49.0 | 8200 |
| RF14027-RZ1MZ1-U(AS)-0.6/1KV-3G240 | 3×240.0 | 61/2.25 | 2.6 | 56.0 | 10350 |
| RF14027-RZ1MZ1-U(AS)-0.6/1KV-3G300 | 3×300.0 | 61/2.52 | 2.7 | 62.0 | 12600 |
| RF14027-RZ1MZ1-U(AS)-0.6/1KV-4G2.5 | 4×2.5* | 7/0.67 | 1.4 | 13.6 | 406 |
| RF14027-RZ1MZ1-U(AS)-0.6/1KV-4G4 | 4×4.0* | 7/0.85 | 1.4 | 14.9 | 505 |
| RF14027-RZ1MZ1-U(AS)-0.6/1KV-4G6 | 4×6.0* | 7/1.04 | 1.5 | 17.1 | 737 |
| RF14027-RZ1MZ1-U(AS)-0.6/1KV-4G10 | 4×10.0* | 7/1.35 | 1.5 | 18.9 | 969 |
| RF14027-RZ1MZ1-U(AS)-0.6/1KV-4G16 | 4×16.0* | 7/1.70 | 1.6 | 21.5 | 1303 |
| RF14027-RZ1MZ1-U(AS)-0.6/1KV-4G25 | 4×25.0 | 7/2.14 | 1.7 | 27.0 | 2100 |
| RF14027-RZ1MZ1-U(AS)-0.6/1KV-4G35 | 4×35.0 | 19/1.53 | 1.8 | 29.0 | 2450 |
| RF14027-RZ1MZ1-U(AS)-0.6/1KV-4G50 | 4×50.0 | 19/1.78 | 1.9 | 32.0 | 3100 |
| RF14027-RZ1MZ1-U(AS)-0.6/1KV-4G70 | 4×70.0 | 19/2.14 | 2.1 | 37.0 | 4400 |
| RF14027-RZ1MZ1-U(AS)-0.6/1KV-4G95 | 4×95.0 | 37/1.78 | 2.2 | 41.0 | 5650 |
| RF14027-RZ1MZ1-U(AS)-0.6/1KV-4G120 | 4×120.0 | 37/2.03 | 2.3 | 46.0 | 7300 |
| RF14027-RZ1MZ1-U(AS)-0.6/1KV-4G150 | 4×150.0 | 37/2.25 | 2.4 | 51.0 | 8700 |
| RF14027-RZ1MZ1-U(AS)-0.6/1KV-4G185 | 4×185.0 | 37/2.52 | 2.6 | 55.0 | 10450 |
| RF14027-RZ1MZ1-U(AS)-0.6/1KV-4G240 | 4×240.0 | 61/2.25 | 2.7 | 63.0 | 13250 |
| RF14027-RZ1MZ1-U(AS)-0.6/1KV-4G300 | 4×300.0 | 61/2.52 | 2.9 | 68.0 | 16100 |
*Circular conductors
U is changed to K if the stranding class is changed from class 2 to class 5
Cables with fire barrier tape
| Cable Code | No. of cores& Nominal Conductor Cross Sectional Area No.×mm² |
No. & Nominal Diameter of Strands No/mm |
Nominal Sheath Thickness mm |
Nominal Overall Diameter mm |
Nominal Weight kg/km |
|---|---|---|---|---|---|
| RF14027-RZ1MZ1-U-MICA(AS+)-0.6/1KV-2G2.5 | 2×2.5 | 7/0.67 | 1.4 | 13.1 | 352 |
| RF14027-RZ1MZ1-U-MICA(AS+)-0.6/1KV-2G4 | 2×4.0 | 7/0.85 | 1.4 | 14.1 | 424 |
| RF14027-RZ1MZ1-U-MICA(AS+)-0.6/1KV-2G6 | 2×6.0 | 7/1.04 | 1.4 | 15.2 | 504 |
| RF14027-RZ1MZ1-U-MICA(AS+)-0.6/1KV-2G10 | 2×10.0 | 7/1.35 | 1.5 | 16.9 | 620 |
| RF14027-RZ1MZ1-U-MICA(AS+)-0.6/1KV-2G16 | 2×16.0 | 7/1.70 | 1.5 | 19.5 | 954 |
| RF14027-RZ1MZ1-U-MICA(AS+)-0.6/1KV-2G25 | 2×25.0 | 7/2.14 | 1.6 | 25.5 | 1330 |
| RF14027-RZ1MZ1-U-MICA(AS+)-0.6/1KV-2G35 | 2×35.0 | 19/1.53 | 1.7 | 29.1 | 1785 |
| RF14027-RZ1MZ1-U-MICA(AS+)-0.6/1KV-2G50 | 2×50.0 | 19/1.78 | 1.8 | 32.2 | 2165 |
| RF14027-RZ1MZ1-U-MICA(AS+)-0.6/1KV-2G70 | 2×70.0 | 19/2.14 | 1.9 | 28.8 | 2445 |
| RF14027-RZ1MZ1-U-MICA(AS+)-0.6/1KV-2G95 | 2×95.0 | 37/1.78 | 2.0 | 33.9 | 3385 |
| RF14027-RZ1MZ1-U-MICA(AS+)-0.6/1KV-2G120 | 2×120.0 | 37/2.03 | 2.1 | 37.2 | 4065 |
| RF14027-RZ1MZ1-U-MICA(AS+)-0.6/1KV-2G150 | 2×150.0 | 37/2.25 | 2.2 | 39.9 | 4745 |
| RF14027-RZ1MZ1-U-MICA(AS+)-0.6/1KV-2G185 | 2×185.0 | 37/2.52 | 2.4 | 45.0 | 6095 |
| RF14027-RZ1MZ1-U-MICA(AS+)-0.6/1KV-2G240 | 2×240.0 | 61/2.25 | 2.5 | 50.0 | 7575 |
| RF14027-RZ1MZ1-U-MICA(AS+)-0.6/1KV-2G300 | 2×300.0 | 61/2.52 | 2.6 | 55.0 | 9165 |
| RF14027-RZ1MZ1-U-MICA(AS+)-0.6/1KV-3G2.5 | 3×2.5 | 7/0.67 | 1.4 | 13.7 | 392 |
| RF14027-RZ1MZ1-U-MICA(AS+)-0.6/1KV-3G4 | 3×4.0 | 7/0.85 | 1.4 | 14.8 | 478 |
| RF14027-RZ1MZ1-U-MICA(AS+)-0.6/1KV-3G6 | 3×6.0 | 7/1.04 | 1.4 | 16.0 | 573 |
| RF14027-RZ1MZ1-U-MICA(AS+)-0.6/1KV-3G10 | 3×10.0 | 7/1.35 | 1.5 | 18.5 | 868 |
| RF14027-RZ1MZ1-U-MICA(AS+)-0.6/1KV-3G16 | 3×16.0 | 7/1.70 | 1.6 | 20.8 | 1136 |
| RF14027-RZ1MZ1-U-MICA(AS+)-0.6/1KV-3G25 | 3×25.0 | 7/2.14 | 1.7 | 27.6 | 1865 |
| RF14027-RZ1MZ1-U-MICA(AS+)-0.6/1KV-3G35 | 3×35.0 | 19/1.53 | 1.8 | 30.9 | 2235 |
| RF14027-RZ1MZ1-U-MICA(AS+)-0.6/1KV-3G50 | 3×50.0 | 19/1.78 | 1.8 | 33.9 | 2735 |
| RF14027-RZ1MZ1-U-MICA(AS+)-0.6/1KV-3G70 | 3×70.0 | 19/2.14 | 1.9 | 35.7 | 3355 |
| RF14027-RZ1MZ1-U-MICA(AS+)-0.6/1KV-3G95 | 3×95.0 | 37/1.78 | 2.1 | 38.2 | 4580 |
| RF14027-RZ1MZ1-U-MICA(AS+)-0.6/1KV-3G120 | 3×120.0 | 37/2.03 | 2.2 | 41.6 | 5505 |
| RF14027-RZ1MZ1-U-MICA(AS+)-0.6/1KV-3G150 | 3×150.0 | 37/2.25 | 2.3 | 47.0 | 6950 |
| RF14027-RZ1MZ1-U-MICA(AS+)-0.6/1KV-3G185 | 3×185.0 | 37/2.52 | 2.4 | 50.5 | 8295 |
| RF14027-RZ1MZ1-U-MICA(AS+)-0.6/1KV-3G240 | 3×240.0 | 61/2.25 | 2.6 | 57.2 | 10455 |
| RF14027-RZ1MZ1-U-MICA(AS+)-0.6/1KV-3G300 | 3×300.0 | 61/2.52 | 2.7 | 63.2 | 12660 |
| RF14027-RZ1MZ1-U-MICA(AS+)-0.6/1KV-4G2.5 | 4×2.5 | 7/0.67 | 1.4 | 14.7 | 454 |
| RF14027-RZ1MZ1-U-MICA(AS+)-0.6/1KV-4G4 | 4×4.0 | 7/0.85 | 1.4 | 16.0 | 556 |
| RF14027-RZ1MZ1-U-MICA(AS+)-0.6/1KV-4G6 | 4×6.0 | 7/1.04 | 1.5 | 18.2 | 783 |
| RF14027-RZ1MZ1-U-MICA(AS+)-0.6/1KV-4G10 | 4×10.0 | 7/1.35 | 1.5 | 20.0 | 1029 |
| RF14027-RZ1MZ1-U-MICA(AS+)-0.6/1KV-4G16 | 4×16.0 | 7/1.70 | 1.6 | 22.5 | 1367 |
| RF14027-RZ1MZ1-U-MICA(AS+)-0.6/1KV-4G25 | 4×25.0 | 7/2.14 | 1.7 | 29.9 | 2240 |
| RF14027-RZ1MZ1-U-MICA(AS+)-0.6/1KV-4G35 | 4×35.0 | 19/1.53 | 1.8 | 33.5 | 2705 |
| RF14027-RZ1MZ1-U-MICA(AS+)-0.6/1KV-4G50 | 4×50.0 | 19/1.78 | 1.9 | 37.1 | 3375 |
| RF14027-RZ1MZ1-U-MICA(AS+)-0.6/1KV-4G70 | 4×70.0 | 19/2.14 | 2.1 | 39.1 | 4560 |
| RF14027-RZ1MZ1-U-MICA(AS+)-0.6/1KV-4G95 | 4×95.0 | 37/1.78 | 2.2 | 43.0 | 5805 |
| RF14027-RZ1MZ1-U-MICA(AS+)-0.6/1KV-4G120 | 4×120.0 | 37/2.03 | 2.3 | 48.3 | 7430 |
| RF14027-RZ1MZ1-U-MICA(AS+)-0.6/1KV-4G150 | 4×150.0 | 37/2.25 | 2.4 | 52.4 | 8820 |
| RF14027-RZ1MZ1-U-MICA(AS+)-0.6/1KV-4G185 | 4×185.0 | 37/2.52 | 2.6 | 56.6 | 10600 |
| RF14027-RZ1MZ1-U-MICA(AS+)-0.6/1KV-4G240 | 4×240.0 | 61/2.25 | 2.7 | 64.3 | 13380 |
| RF14027-RZ1MZ1-U-MICA(AS+)-0.6/1KV-4G300 | 4×300.0 | 61/2.52 | 2.9 | 70.7 | 16255 |
U is changed to K if the stranding class is changed from class 2 to class 5
