TYPE A1, A2 & A3 Railway Signalling Cable

Application

The cables are designed for railway signalling systems. The cables are suitable for use in d.c. circuits where the

nominal voltage to earth does not exceed 1100 volts and are suitable for installation in ducts.

Standards

NR/PS/SIG/00005(formerly RT/E/PS/00005)

Construction

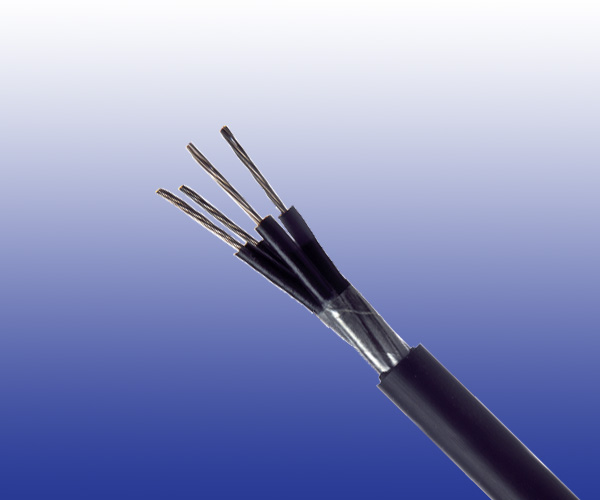

TYPE A1, A2 & A3 Railway Signalling Cable

Conductors: Tinned stranded copper, class 2 according to IEC 60228 & BS 6360.

Insulation: LSZH crosslinked.

Core Wrapping: Plastic tape(s) with overlapping.

Sheath: LSZH (for types A2 & A3 only).

Electrical Characteristics at 20℃

Nominal Conductor Cross Section mm² 0.75 1.15
Maximum Conductor DC Resistance Ω/km 24.8 17.3
Voltage Rating KV 0.65/1.1
Nominal Insulation Thickness mm 0.85 0.85

Mechanical and Thermal Properties

Minimum Bending Radius: 6×OD (static); 15×OD (dynamic)

Temperature Range: -25℃ to +85℃ (during operation);

                                  -10℃ to +85℃ (during installation)

Dimensions And Weight

Cable Code No. of cores& Nominal
Conductor Cross
Sectional Area
No.×mm²		 No. & Nominal
Diameter of Strands
No/mm		 Nominal Sheath
Thickness
mm		 Overall Diameter
Min/Max
mm		 Nominal
Weight
kg/km
Type A1(without sheath)
RS/A1-H-1G0.75(BL) 1x0.75(blue) 7/0.37 - 2.7/3.2 16
RS/A1-H-1G0.75(BR) 1x0.75(brown) 7/0.37 - 2.7/3.2 16
RS/A1-H-1G0.75(RD) 1x0.75(red) 7/0.37 - 2.7/3.2 16
RS/A1-H-1G0.75(OR) 1x0.75(orange) 7/0.37 - 2.7/3.2 16
RS/A1-H-1G0.75(GR) 1x0.75(green) 7/0.37 - 2.7/3.2 16
RS/A1-H-1G0.75(VI) 1x0.75(violet) 7/0.37 - 2.7/3.2 16
RS/A1-H-1G0.75 1x0.75(black) 7/0.37 - 2.7/3.2 16
RS/A1-H-1G1.15 1x1.15(black) 16/0.30 - 2.9/3.6 21
Type A2(with sheath)
RS/A2-3GH-1G0.75 1x0.75 7/0.37 0.7 4.0/5.0 30
RS/A2-3GH-1G1.15 1x1.15 16/0.30 0.7 4.3/5.3 35
Type A3(with sheath)
RS/A3-3GH-2G0.75 2x0.75 7/0.37 0.9 6.7/8.8 67
RS/A3-3GH-4G0.75 4x0.75 7/0.37 1.0 8.0/10.4 108
RS/A3-3GH-6G0.75 6x0.75 7/0.37 1.1 9.7/12.5 160
RS/A3-3GH-10G0.75 10x0.75 7/0.37 1.2 12.6/16.1 259
RS/A3-3GH-14G0.75 14x0.75 7/0.37 1.3 13.8/17.7 495
RS/A3-3GH-36G0.75 36x0.75 7/0.37 1.6 21.6/26.9 752
RS/A3-3GH-48G0.75 48x0.75 7/0.37 1.6 24.3/30.7 963
