205℉/96℃ PP/NBR Round Electrical Submersible Pump Cable
Applications
These cables are designed for transmitting power to the submersible motor in the oil industry, suitable for
installed down well in the oil industry.
Standards
IEEE Std. 1019
API RP 11S5
API RP 11S6

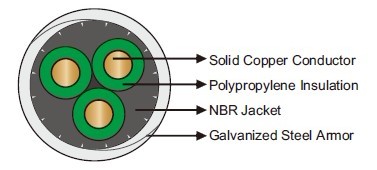

Construction
Conductor: Solid/stranded copper conductor.
Insulation: Polypropylene insulation.
Jacket: Oil-resistant nitrile rubber.
Armor: Galvanized steel.
Dimensions and Weight:
3KV
| Cable Type | Conductor Size | Conductor O.D. | Insulation Thickness | Overall O.D. | Weight | |||||
|---|---|---|---|---|---|---|---|---|---|---|
| AWG | mm² | inches | mm | Inches | mm | Inches | mm | lbs/kft | kg/km | |
| QYPNY-96-3kV-3G10S | - | 10 | 0.14 | 3.556 | 0.075 | 1.9 | 1.03 | 26.1 | 724 | 1077 |
| QYPNY-96-3kV-3G6 | 6 | 13.3 | 0.162 | 4.115 | 0.075 | 1.9 | 1.09 | 27.8 | 832 | 1238 |
| QYPNY-96-3kV-3G16S | - | 16 | 0.178 | 4.521 | 0.075 | 1.9 | 1.14 | 29.0 | 917 | 1364 |
| QYPNY-96-3kV-3G4 | 4 | 21.1 | 0.204 | 5.182 | 0.075 | 1.9 | 1.22 | 31.0 | 1066 | 1587 |
| QYPNY-96-3kV-3G25S | - | 25 | 0.222 | 5.639 | 0.075 | 1.9 | 1.27 | 32.3 | 1178 | 1752 |
| QYPNY-96-3kV-3G2 | 2 | 33.6 | 0.258 | 6.553 | 0.075 | 1.9 | 1.38 | 35.1 | 1420 | 2114 |
| QYPNY-96-3kV-3G1 | 1 | 42.4 | 0.289 | 7.341 | 0.075 | 1.9 | 1.47 | 37.4 | 1651 | 2456 |
| QYPNY-96-3kV-3G1/0 | 1/0 | 53.5 | 0.368 | 9.347 | 0.075 | 1.9 | 1.71 | 43.4 | 2326 | 3462 |
| QYPNY-96-3kV-3G2/0 | 2/0 | 67.4 | 0.414 | 10.516 | 0.075 | 1.9 | 1.84 | 46.8 | 2779 | 4135 |
5KV
| Cable Type | Conductor Size | Conductor O.D. | Insulation Thickness |
Overall O.D. | Weight | |||||
|---|---|---|---|---|---|---|---|---|---|---|
| AWG | mm² | inches | mm | Inches | mm | Inches | mm | lbs/kft | kg/km | |
| QYPNY-96-5kV-3G10S | - | 10 | 0.14 | 3.556 | 0.09 | 2.3 | 1.12 | 28.5 | 806 | 1199 |
| QYPNY-96-5kV-3G6 | 6 | 13.3 | 0.162 | 4.115 | 0.09 | 2.3 | 1.19 | 30.2 | 917 | 1365 |
| QYPNY-96-5kV-3G16S | - | 16 | 0.178 | 4.521 | 0.09 | 2.3 | 1.24 | 31.4 | 1005 | 1495 |
| QYPNY-96-5kV-3G4 | 4 | 21.1 | 0.204 | 5.182 | 0.09 | 2.3 | 1.31 | 33.4 | 1158 | 1724 |
| QYPNY-96-5kV-3G25S | - | 25 | 0.222 | 5.639 | 0.09 | 2.3 | 1.37 | 34.7 | 1272 | 1894 |
| QYPNY-96-5kV-3G2 | 2 | 33.6 | 0.258 | 6.553 | 0.09 | 2.3 | 1.47 | 37.4 | 1521 | 2263 |
| QYPNY-96-5kV-3G1 | 1 | 42.4 | 0.289 | 7.341 | 0.09 | 2.3 | 1.57 | 39.8 | 1756 | 2613 |
| QYPNY-96-5kV-3G1/0 | 1/0 | 53.5 | 0.368 | 9.347 | 0.09 | 2.3 | 1.80 | 45.7 | 2444 | 3637 |
| QYPNY-96-5kV-3G2/0 | 2/0 | 67.4 | 0.414 | 10.516 | 0.09 | 2.3 | 1.94 | 49.2 | 2903 | 4321 |
