 ADSL Connecting Cables

Application

The cables are designed for ADSL transmission system. The cables are characterized by guaranteed data

speeds up to 10MHz. The cables have a small cable diameter with an easily removable sheath.

Standards

IEC 61156-1 Part 1

ANSI/ICEA S-80-576

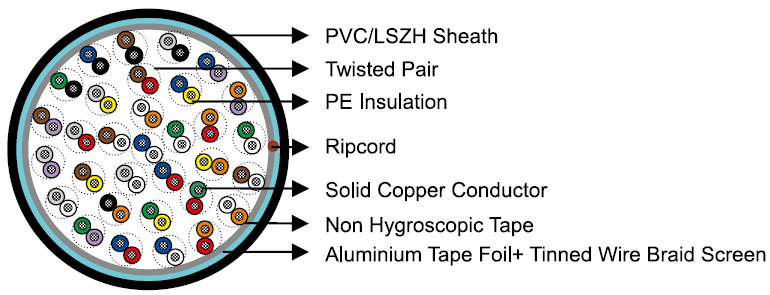

Construction

ADSLADSL

Conductors

Solid annealed bare copper sized 0.4mm as per ASTM B-3/IEC 60228 Class 1

Insulation

Solid polyethylene as per ASTM D 1248/IEC 60708

Twisted Pairs

Insulated conductors are twisted into pairs with varying lays to minimize crosstalk

Cable Core Assembly

The pairs are cabled in concentric layer to form the cable core

Core Wrapping

One or more non-hygroscopic polyester tapes are helically or longitudinally laid with an overlap

Screen

An aluminium polyester foil is applied in close contact with tinned copper braid screen

Sheath

PVC or LSZH compound

Ripcord

Ripcord may be placed to facilitate sheath removal

Electrical Properties

Number of Pairs   24 32 64 72 96 128
Maximum Conductor Resistance @20°C Ω/km 143 143 143 143 143 143
Minimum Insulation Resistance @500V DC MΩ.km 1000 1000 1000 1000 1000 1000
Maximum Mutual Capacitance @800Hz nF/km 80 80 80 80 80 80
Maximum Capacitance Unbalance pair-to-pair pF/500m 250 250 250 250 250 250
Impedance Ω 120 120 105 105 100 105
Maximum Average Attenuation @1MHz dB/km 32 32 32 32 32 32
Maximum Average Attenuation @10MHz dB/km 110 110 110 110 110 110
Minimum NEXT pair-to-pair @1MHz dB 55 55 55 55 55 55
Minimum NEXT pair-to-pair @10MHz dB 40 40 40 40 40 40
Dielectric Strength 1min V DC 1500 1500 1500 1500 1500 1500

Mechanical and Thermal Properties

Temperature range during operation (fixed state): -30°C – +70°C

Temperature range during installation (mobile state): -20°C – +50°C

Minimum bending radius: 10 x Overall Diameter

Colour Code

Standard colour code is per ANSI/ICEA S-80-576 given in Colour Code Chart

Dimensions And Weight

Cable Code Number of Pairs Nominal Insulation
Thickness
mm 		Nominal Sheath
Thickness
mm 		Nominal Overall
Diameter
mm 		Nominal Weight kg/km
TP576-2Y(St)Y-24P04-ADSL 24 / 3X4Q 0.2 0.9 11.0 139
TP576-2Y(St)Y-32P04-ADSL 32 / 4X4Q 0.2 0.9 12.0 180
TP576-2Y(St)Y-64P04-ADSL 64 0.15 1.0 15.0 300
TP576-2Y(St)Y-72P04-ADSL 72 0.15 1.0 16.0 330
TP576-2Y(St)Y-96P04-ADSL 96 0.15 1.1 19.5 450
TP576-2Y(St)Y-128P04-ADSL 128 0.15 1.2 20.0 528
