 PVC Insulated Jumper Wires to CW 1109, CW 1257 & CW 1423

Application

The jumper wires are used for interconnection between terminal blocks at main distribution frames (MDF), cross

connection cabinets (CCP) and distribution frames or boxes.

Standards

CW 1109 (PVC T2)

CW 1257 (Cross linked PVC)

CW 1423 (PVC BT M154)

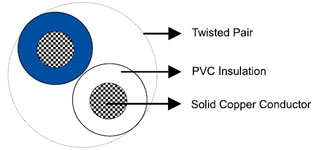

Construction

CW 1109, CW 1257 & CW 1423 CW 1109, CW 1257 & CW 1423

Conductors

Solid annealed tinned copper 0.32/0.4/0.5/0.6/0.8/1.0mm as per class 1 of BS 6360/IEC 60228

Insulation

PVC Type 2 to BS 6746 (CW 1109); Cross-linked PVC (CW 1257) & PVC (CW 1423)

Twisted Pairs

For CW 1109 & CW 1257, two insulated conductors are twisted into pairs with varying lays to minimize crosstalk.

For CW 1423, one, two, three, four or five insulated conductors are twisted together with a right hand lay

Electrical Properties

CW 1109

Nominal Conductor Diameter mm 0.32 0.4 0.5 0.6 0.8 1.0 7/0.2
Conductor Size mm2 0.08 0.126 0.196 0.283 0.5 0.785 0.22
Maximum Conductor Resistance @20°C Ω/km 234 148 95 65.9 36.7 23.3 89.9
Minimum Insulation Resistance @500V DC MΩ.km 50 50 50 50 50 50 50
Minimum Insulation Thickness mm 0.12 0.15 0.15 0.15 0.25 0.25 0.15
Maximum Insulated Conductor Diameter mm 0.7 0.85 0.95 1.05 1.5 1.7 1.05

CW 1257

Nominal Conductor Diameter mm 0.4 0.5 0.6
Conductor Size mm2 0.126 0.196 0.283
Maximum Conductor Resistance @20°C Ω/km 153 98 68.9
Minimum Insulation Resistance @500V DC MΩ.km 50 50 50
Minimum Insulation Thickness mm 0.25 0.25 0.25
Maximum Insulated Conductor Diameter mm 1.0 1.10 1.20

CW 1423

Nominal Conductor Diameter mm 0.5
Conductor Size mm2 0.196
Maximum Conductor Resistance @20°C Ω/km 98
Minimum Insulation Resistance @500V DC MΩ.km 50
Minimum Insulation Thickness mm 0.25
Maximum Insulated Conductor Diameter mm 1.10

Mechanical and Thermal Properties

Temperature range during operation (fixed state): -30°C – +70°C

Temperature range during installation (mobile state): -20°C – +50°C

Minimum bending radius: 7.5 x Overall Diameter

Color Code

CW 1109 - as per IEC 60189-3
CW 1257 & CW 1423:

BLUE ORANGE GREEN
BROWN GREY WHITE
RED BLACK PINK
VIOLET YELLOW TURQUOISE

Dimensions And Weight

CW 1109

Cable Code Number of Wires Minimum Insulation Thickness
mm 		Maximum Overall Diameter
mm 		Nominal Weight
kg/km
0.32mm Conductor, 0.7mm Insulated Wire
TP1109-Y-1W032 1 0.12 0.7 1.5
TP1109-Y-2W032 2 0.12 1.3 3.0
0.4mm Conductor, 0.85mm Insulated Wire
TP1109-Y-1W04 1 0.15 0.85 1.8
TP1109-Y-2W04 2 0.15 1.45 3.6
0.5mm Conductor, 0.95mm Insulated Wire
TP1109-Y-1W05 1 0.15 0.95 2.2
TP1109-Y-2W05 2 0.15 1.65 4.8
TP1109-Y-3W05 3 0.15 2.35 6.6
0.6mm Conductor, 1.05mm Insulated Wire
TP1109-Y-1W06 1 0.15 1.05 2.8
TP1109-Y-2W06 2 0.15 1.75 5.6
0.8mm Conductor, 1.5mm Insulated Wire
TP1109-Y-1W08 1 0.25 1.50 5.5
TP1109-Y-2W08 2 0.25 2.50 11.0
1.0mm Conductor, 1.7mm Insulated Wire
TP1109-Y-1W10 1 0.25 1.70 6.5
TP1109-Y-2W10 2 0.25 2.60 13.0
7/0.2mm Conductor, 1.05mm Insulated Wire
TP1109-Y-1W7/02 1 0.15 1.05 2.5
TP1109-Y-2W7/02 2 0.15 2.35 5.0

CW 1257

Cable Code Number of Wires Minimum Insulation Thickness
mm 		Maximum Overall Diameter
mm 		Nominal Weight
kg/km
0.4mm Conductor, 1.0mm Insulated Wire
TP1257-Y-1W04 1 0.25 1.0 2.0
TP1257-Y-2W04 2 0.25 1.8 4.0
0.5mm Conductor, 1.1mm Insulated Wire
TP1257-Y-1W05 1 0.25 1.1 2.5
TP1257-Y-2W05 2 0.25 2.0 5.0
0.6mm Conductor, 1.2mm Insulated Wire
TP1257-Y-1W06 1 0.25 1.2 2.9
TP1257-Y-2W06 2 0.25 2.2 5.8

CW 1423

Cable Code Number of Wires Minimum Insulation Thickness
mm 		Maximum Overall Diameter
mm 		Nominal Weight
kg/km
0.5mm Conductor, 1.1mm Insulated Wire
TP1423-Y-1W05 1 0.25 1.98 2.5
TP1423-Y-2W05 2 0.25 2.5 5.0
TP1423-Y-3W05 3 0.25 3.0 7.5
TP1423-Y-4W05 4 0.25 3.8 10.0
TP1423-Y-5W05 5 0.25 4.6 12.5
