Automotive Cable
Germany Standard
Single-core cable
FLR12Y-B
Application:
This TPE-E insulated single-core cable is used for cable harnesses.

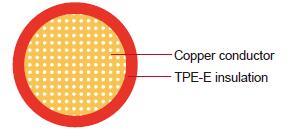

Construction:
Conductor:
Cu-ETP1 bare according to DIN EN 13602
Insulation:
TPE-E Standard:ISO 6722 Class D
Technical Parameters:
Operating temperature: –40°C to +150°C
|
Conductor Construction |
Insulation |
Cable |
||||
|---|---|---|---|---|---|---|---|
Nominal Cross- section |
No. and Dia. of Wires |
Diameter of Conductor max. |
Electrical |
Nominal Thickness |
Overall Diameter min. |
Overall Diameter max. |
Weight Approx. |
mm2 |
no./mm |
mm |
mΩ/m |
mm |
mm |
mm |
kg/km |
1x0.35 |
12/0.21 |
0.90 |
55.5 |
0.20 |
1.3 |
1.4 |
4.5 |
1x0.50 |
16/0.21 |
1.00 |
38.2 |
0.22 |
1.5 |
1.6 |
6.6 |
1x0.75 |
24/0.21 |
1.20 |
25.4 |
0.24 |
1.8 |
1.9 |
9.0 |
1x1.00 |
32/0.21 |
1.35 |
19.1 |
0.24 |
2.0 |
2.1 |
11 |
1x1.50 |
30/0.26 |
1.70 |
13.0 |
0.24 |
2.3 |
2.4 |
16 |
1x2.50 |
50/0.26 |
2.20 |
7.82 |
0.28 |
2.9 |
3.0 |
26 |
1x4.00 |
56/0.31 |
2.75 |
4.85 |
0.32 |
3.6 |
3.7 |
42 |
1x6.00 |
84/0.31 |
3.30 |
3.23 |
0.32 |
4.2 |
4.3 |
61 |
Note: Other configurations, sizes, colors and length not specified herein are available upon request.
