Industrial Cables-British Standard
6381B to BS7211 & IEC 60502
Application and Description
6381B to BS7211 & IEC 60502 cables are suitable for D.C. power supplies on telecom equipment and power
applications where flexibility is required. 6381B to BS7211 & IEC 60502 cables produce no corrosive gases when
burnt which is important where electronic equipment is installed.

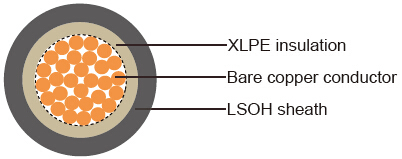

Cable Construction
-
Bare copper conductor
Stranding to BS6360 CL-5 or IEC60228 CL-5
XLPE(Cross-Linked Polyethylene), GP8 insulation
LSOH(Low Smoke Zero Halogen) LTS4 sheath
-
Blue (Blue), Grey (Grey), Green/Yellow (Green/Yellow), Brown (Brown), Special colours to order
Technical Characteristics
-
Working voltage: 600/1000V
Minimum bending radius: up to 50 mm² : 3xoverall diameter,
70mm² and above: - 4xoverall diameter
- Operating temperature: 0º C to +90º C
Insulation resistance: 10 MΩxkm
Flame retardant: IEC 60332.1, BS4066 Part 1
Cable Parameter
| AWG (No of Strands/ Strand Diameter) |
No. of Cores x Nominal Cross Sectional Area #xmm² |
Nominal Thickness of Insulation mm |
Nominal Thickness of Sheath mm |
Nominal Overall Diameter mm |
Nominal Weight kg/km |
|---|---|---|---|---|---|
| 16(30/30) | 1x1.5 | 0.9 | 0.8 | 5.2 | 42 |
| 14(50/30) | 1x2.5 | 0.9 | 0.8 | 5.7 | 54 |
| 12(56/28) | 1x4 | 1 | 0.9 | 6.6 | 77 |
| 10(84/28) | 1x6 | 1.1 | 0.9 | 7.3 | 102 |
| 8(80/26) | 1x10 | 1.2 | 1 | 8.6 | 160 |
| 6(128/26) | 1x16 | 1.2 | 1 | 9.6 | 210 |
| 4(200/26) | 1x25 | 1.4 | 1.1 | 11.5 | 320 |
| 2(280/26) | 1x35 | 1.4 | 1.1 | 12.8 | 420 |
| 1(400/26) | 1x50 | 1.4 | 1.4 | 14.9 | 590 |
| 2/0(356/24) | 1x70 | 1.4 | 1.4 | 17.2 | 810 |
| 3/0(485/24) | 1x95 | 1.6 | 1.5 | 18.6 | 1020 |
| 4/0(614/24) | 1x120 | 1.6 | 1.8 | 20.8 | 1285 |
| 300MCM (765/24) | 1x150 | 1.8 | 1.8 | 23.1 | 1610 |
| 350MCM (944/24) | 1x185 | 2 | 1.8 | 25.3 | 1940 |
| 500MCM(1225/24) | 1x240 | 2.2 | 1.8 | 27.8 | 2480 |
| -(1525/24) | 1x300 | 2.4 | 2 | 31.2 | 3050 |
| -(2013/24) | 1x400 | 2.6 | 2.1 | 35.3 | 4035 |
| -(1769/23) | 1x500 | 2.8 | 2.2 | 38.8 | 4970 |
| -(2257/23) | 1x630 | 2.8 | 2.4 | 43.8 | 6510 |
