Marine Cable

Cat5E UTP/FTP Armoured Data Cable



Applications :

Cat5E Cable is a cable standard for Gigabit Ethernet and other network protocol, suitable for basic voice and data installations up to 100 MHz. In addition, these cables are with copper wire braid armoured & flame retardant mud resistant outer sheath, providing additional mechanically protection still maintaining the flexibility of the cable.

Standards :

IEC 60332-3-22

IEC 60754-1,2

IEC 61034-1,2

NEK 606

IEC60092 Offshore & Marine CablesIEC60092 Offshore & Marine Cables

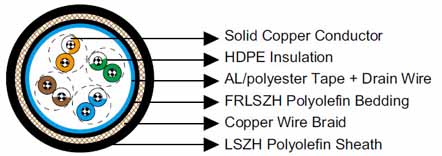

Construction :

Conductors : 24AWG solid bare copper.

Insulation : HDPE.

Twinning : Two coloured insulated conductors twisted together to form a pair.

Bedding : Flame retardant, low smoke and halogen-free polyolefin, coloured black.

Armour : 0.2/0.3mm copper wire braid.

Outer Sheath : Low smoke and halogen-free polyolefin.

Optional :

Cat5E F/UTP : These cables have collective shielding of aluminium/Polyester tape with drain wire.

Cat5E SF/UTP :These cables have double collective shieldings of aluminium/Polyester tape & copper wire braid

with drain wire

Electrical Characteristics :

  • AWG 18
    Nominal Conductor Diameter mm 1.0
    Maximum DC Resistant@20℃ Ω/100m 9.38
    Maximum DCR Unbalance % 5
    Maximum Mutual Capacitance pF/m 55.8
    Maximum Capacitance Unbalance pF/100m 330
    Characteristic Impedance@1-100MHz Ω 100+/-15
    Maximum Propagation Delay Skew ns/100m 45

  • FREQ MHz Maximum Attenuation dB/100m Minimum NEXT dB Minimum PSNEXT dB Minimum ELFEXT dB/100m Minimum PSELFEXT dB/100m Minimum RL dB
    0.772 1.8 67.0 64.0 66.0 63.0
    1 2.0 65.3 62.3 63.8 60.8 20.0
    4 4.1 56.3 53.3 51.7 48.7 23.0
    8 5.8 51.8 48.8 45.7 42.7 24.5
    10 6.5 50.3 47.3 43.8 40.8 25.0
    16 8.2 47.3 44.3 39.7 36.7 25.0
    20 9.3 45.8 42.8 37.7 34.7 25.0
    25 10.4 44.3 41.3 35.8 32.8 24.3
    31.25 11.7 42.9 39.9 33.9 30.9 23.6
    62.5 17.0 38.4 35.4 27.8 24.8 21.5
    100 22.0 35.3 32.3 23.8 20.8 20.1

Mechanical and Thermal Properties :

Bending Radius : 8×OD (during installation); 4×OD (fixed installed).

Temperature Range : -30℃ ~ +75℃.

Dimensions and Weight :

Construction No. of elements×No. of cores in element×Conductor diameter
(mm²)
Nominal Insulation Thickness
mm
Nominal Sheath Thickness
mm
Nominal Overall Diameter
mm
Nominal Weight
kg/km
Inner Outer
4×2×0.53 0.2 0.8 1.2 11.2 208
