Mining Cable
Type 210 1.1/1.1KV
Applications:
These cables are mainly used for hand-held boring machines and drills.
Standards :
AS/NZS 1802:2003
AS/NZS 1125
AS/NZS 3808
AS/NZS 5000.1

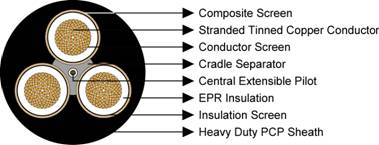

Construction:
3×Conductors: Flexible stranded tinned annealed copper conductor.
Conductor Screen:Polyester barrier tape.
Insulation: EPR.
Insulation Screen:Semiconductive tape.
Composite Screen (earth conductor):Tinned annealed copper braiding interwove with polyester yarn.
Cradle Separator: Semiconductive PCP.
1×Central Extensible Pilot:EPR covered flexible stranded tinned copper conductor.
Sheath: Heavy duty PCP sheath.
Dimensions and Weight:
| Nominal Conductor Area | Strand Size | Insulation Thickness | Core screen | Pilot Conductor | Thickness of Sheath | Nominal Overall Diameter | Nominal Weight | ||
|---|---|---|---|---|---|---|---|---|---|
| Strand Size | Area of Screen | Strand Size | Thickness of Covering | ||||||
| mm² | No/mm | mm | No/mm | mm² | No/mm | mm | mm | mm | kg/100m |
| Type 210 | |||||||||
| 1.5 | 30/0.25 | 1.4 | 7/0.25 | 5.2 | 24/0.20 | 0.8 | 3.0 | 23.7 | 83 |
| 2.5 | 50/0.25 | 1.5 | 7/0.25 | 5.8 | 24/0.20 | 0.8 | 3.0 | 25.1 | 92 |
