176℉/80℃ PP/HDPE Flat Electrical Submersible Pump Cable

Applications:

These cables are designed for transmitting power to the submersible motor in the oil industry, suitable for installed down well in the oil industry.

IEEE Std. 1019

API RP 11S5

API RP 11S6

Submersible Pump Cables Flat Cables

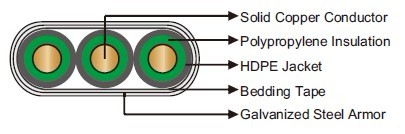

Conductor: Solid bare copper conductor with poly adhesive layer.

Insulation: Polypropylene insulation

Jacket: HDPE jacket.

Tape: Helicoidally applied bedding tape.

Armor: Galvanized steel armor.

3KV

Cable Type	Conductor Size		Conductor O.D.		Insulation Thickness		Overall O.D.		Weight
	AWG	mm²	inches	mm	Inches	mm	Inches	mm	lbs/kft	kg/km
QYPH-80-3kV-3G6	6	13.3	0.16	4.1	0.075	1.9	1.5 x 0.6	39.2 x 14.4	850	1265
QYPH-80-3kV-3G4	4	21.1	0.20	5.1	0.075	1.9	1.7 x 0.6	42.4 x 15.5	1060	1577
QYPH-80-3kV-3G2	2	33.5	0.26	6.6	0.075	1.9	1.8 x 0.7	46.5 x 16.9	1360	2023
QYPH-80-3kV-3G1	1	42.4	0.29	7.4	0.075	1.9	1.9 x 0.7	48.9 x 17.7	1560	2321

4KV

Cable Type	Conductor Size		Conductor O.D.		Insulation Thickness		Overall O.D.		Weight
	AWG	mm²	inches	mm	Inches	mm	Inches	mm	lbs/kft	kg/km
QYPH-80-4kV-3G6	6	13.3	0.16	4.1	0.08	2.1	1.6 x 0.6	40.4 x 14.8	880	1309
QYPH-80-4kV-3G4	4	21.1	0.20	5.1	0.08	2.1	1.7 x 0.6	43.6 x 15.9	1090	1622
QYPH-80-4kV-3G2	2	33.5	0.26	6.6	0.08	2.1	1.9 x 0.7	47.7 x 17.3	1390	2068
QYPH-80-4kV-3G1	1	42.4	0.29	7.4	0.08	2.1	2.0 x 0.7	50.1 x 18.1	1590	2366

5KV

Cable Type	Conductor Size		Conductor O.D.		Insulation Thickness		Overall O.D.		Weight
	AWG	mm²	inches	mm	Inches	mm	Inches	mm	lbs/kft	kg/km
QYPH-80-5kV-3G6	6	13.3	0.16	4.1	0.09	2.3	1.6 x 0.6	41.6 x 15.2	910	1354
QYPH-80-5kV-3G4	4	21.1	0.20	5.1	0.09	2.3	1.8 x 0.6	44.8 x 16.3	1120	1666
QYPH-80-5kV-3G2	2	33.5	0.26	6.6	0.09	2.3	1.9 x 0.7	48.9 x 17.7	1420	2113
QYPH-80-5kV-3G1	1	42.4	0.29	7.4	0.09	2.3	2.0 x 0.7	51.3 x 18.5	1620	2410

Other conductor size can be offered upon request.
