176℉/80℃ PP/HDPE Unarmored Round Electrical Submersible Pump Cable
Applications:
These cables are designed for transmitting power to the submersible motor in the oil industry, suitable for installed down well in the oil industry.
Standards:
IEEE Std. 1019
API RP 11S5
API RP 11S6 1

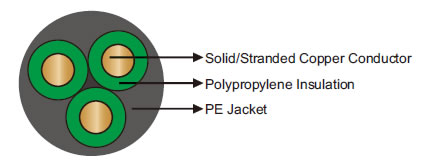

Construction:
Conductors: Solid/stranded copper conductor.
Insulation: Polypropylene insulation.
Jacket: Excellent abrasion resistance PE.
Dimensions and Weight:
3KV
| Cable Type | Conductor Size | Conductor O.D. |
Insulation Thickness | Overall O.D. | Weight | |||||
|---|---|---|---|---|---|---|---|---|---|---|
| AWG | mm² | inches | mm | Inches | mm | Inches | mm | lbs/kft | kg/km | |
| QYPHY(U)-80-5kV-3G10S | - | 10 | 0.14 | 3.556 | 0.075 | 1.9 | 0.98 | 24.9 | 518 | 771 |
| QYPHY(U)-80-5kV-3G6 | 6 | 13.3 | 0.162 | 4.115 | 0.075 | 1.9 | 1.04 | 26.5 | 613 | 913 |
| QYPHY(U)-80-5kV-3G16S | - | 16 | 0.178 | 4.521 | 0.075 | 1.9 | 1.09 | 27.7 | 689 | 1025 |
| QYPHY(U)-80-5kV-3G4 | 4 | 21.1 | 0.204 | 5.182 | 0.075 | 1.9 | 1.17 | 29.7 | 823 | 1225 |
| QYPHY(U)-80-5kV-3G25S | - | 25 | 0.222 | 5.639 | 0.075 | 1.9 | 1.22 | 31.1 | 924 | 1375 |
| QYPHY(U)-80-5kV-3G2 | 2 | 33.6 | 0.258 | 6.553 | 0.075 | 1.9 | 1.33 | 33.8 | 1146 | 1705 |
| QYPHY(U)-80-5kV-3G1 | 1 | 42.4 | 0.289 | 7.341 | 0.075 | 1.9 | 1.42 | 36.1 | 1358 | 2021 |
| QYPHY(U)-80-5kV-3G1/0 | 1/0 | 53.5 | 0.368 | 9.347 | 0.075 | 1.9 | 1.66 | 42.1 | 1987 | 2958 |
| QYPHY(U)-80-5kV-3G2/0 | 2/0 | 67.4 | 0.414 | 10.516 | 0.075 | 1.9 | 1.80 | 45.6 | 2413 | 3591 |
5KV
| Cable Type | Conductor Size | Conductor O.D. |
Insulation Thickness | Overall O.D. | Weight | |||||
|---|---|---|---|---|---|---|---|---|---|---|
| AWG | mm² | inches | mm | Inches | mm | Inches | mm | lbs/kft | kg/km | |
| QYPHY(U)-80-5kV-3G10S | - | 10 | 0.14 | 3.556 | 0.09 | 2.3 | 1.07 | 27.2 | 582 | 866 |
| QYPHY(U)-80-5kV-3G6 | 6 | 13.3 | 0.162 | 4.115 | 0.09 | 2.3 | 1.14 | 28.9 | 681 | 1013 |
| QYPHY(U)-80-5kV-3G16S | - | 16 | 0.178 | 4.521 | 0.09 | 2.3 | 1.19 | 30.1 | 759 | 1129 |
| QYPHY(U)-80-5kV-3G4 | 4 | 21.1 | 0.204 | 5.182 | 0.09 | 2.3 | 1.26 | 32.1 | 897 | 1335 |
| QYPHY(U)-80-5kV-3G25S | - | 25 | 0.222 | 5.639 | 0.09 | 2.3 | 1.32 | 33.4 | 1001 | 1489 |
| QYPHY(U)-80-5kV-3G2 | 2 | 33.6 | 0.258 | 6.553 | 0.09 | 2.3 | 1.42 | 36.2 | 1228 | 1827 |
| QYPHY(U)-80-5kV-3G1 | 1 | 42.4 | 0.289 | 7.341 | 0.09 | 2.3 | 1.52 | 38.5 | 1445 | 2150 |
| QYPHY(U)-80-5kV-3G1/0 | 1/0 | 53.5 | 0.368 | 9.347 | 0.09 | 2.3 | 1.75 | 44.5 | 2087 | 3105 |
| QYPHY(U)-80-5kV-3G2/0 | 2/0 | 67.4 | 0.414 | 10.516 | 0.09 | 2.3 | 1.89 | 47.9 | 2520 | 3749 |
