205℉/96℃ PP/NBR Flat Electrical Submersible Pump Cable
Applications:
These cables are designed for transmitting power to the submersible motor in the oil industry, suitable for installed down well in the oil industry.
Standards:
IEEE Std. 1019
API RP 11S5
API RP 11S6

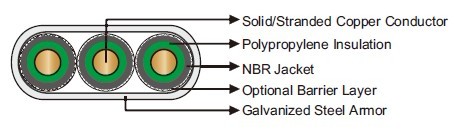

Construction:
Conductor: Solid/stranded copper conductor.
Insulation: Polypropylene insulation.
Jacket: Oil-resistant nitrile rubber. Each insulated conductor should be individually jacketed or three conductors laid parallel within a common encapsulated jacket.
Optional Barrier: Tape, braid, tape and braid, or extruded barrier, used for fluid protection and hoop strength.
Armor: Galvanized steel.
Dimensions and Weight:
3KV
| Cable Type | Conductor Size | Conductor O.D. |
Insulation Thickness | Overall O.D. | Weight | |||||
|---|---|---|---|---|---|---|---|---|---|---|
| AWG | mm² | inches | mm | Inches | mm | Inches | mm | lbs/kft | kg/km | |
| QYPN-96-3kV-3G10S | - | 10 | 0.14 | 3.556 | 0.075 | 1.9 | 1.59×0.56 | 40.5×14.2 | 840 | 1249 |
| QYPN-96-3kV-3G6 | 6 | 13.3 | 0.162 | 4.115 | 0.075 | 1.9 | 1.68×0.59 | 42.8×14.9 | 952 | 1416 |
| QYPN-96-3kV-3G16S | - | 16 | 0.178 | 4.521 | 0.075 | 1.9 | 1.75×0.61 | 44.5×15.5 | 1040 | 1547 |
| QYPN-96-3kV-3G4 | 4 | 21.1 | 0.204 | 5.182 | 0.075 | 1.9 | 1.86×0.65 | 47.2×16.4 | 1194 | 1776 |
| QYPN-96-3kV-3G25S | - | 25 | 0.222 | 5.639 | 0.075 | 1.9 | 1.93×0.67 | 49.1×17.0 | 1308 | 1947 |
| QYPN-96-3kV-3G2 | 2 | 33.6 | 0.258 | 6.553 | 0.075 | 1.9 | 2.08×0.72 | 52.9×18.3 | 1557 | 2318 |
| QYPN-96-3kV-3G1 | 1 | 42.4 | 0.289 | 7.341 | 0.075 | 1.9 | 2.21×0.76 | 56.1×19.4 | 1793 | 2669 |
| QYPN-96-3kV-3G1/0 | 1/0 | 53.5 | 0.368 | 9.347 | 0.075 | 1.9 | 2.54×0.87 | 64.4×22.2 | 2483 | 3695 |
| QYPN-96-3kV-3G2/0 | 2/0 | 67.4 | 0.414 | 10.516 | 0.075 | 1.9 | 2.73×0.94 | 69.3×23.8 | 2944 | 4381 |
5KV
| Cable Type | Conductor Size | Conductor O.D. |
Insulation Thickness | Overall O.D. | Weight | |||||
|---|---|---|---|---|---|---|---|---|---|---|
| AWG | mm² | inches | mm | Inches | mm | Inches | mm | lbs/ kft |
kg/ km |
|
| QYPN-96-5kV-3G10S | - | 10 | 0.14 | 3.556 | 0.09 | 2.3 | 1.72×0.60 | 43.8×15.3 | 927 | 1380 |
| QYPN-96-5kV-3G6 | 6 | 13.3 | 0.162 | 4.115 | 0.09 | 2.3 | 1.81×0.63 | 46.1×16.0 | 1043 | 1552 |
| QYPN-96-5kV-3G16S | - | 16 | 0.178 | 4.521 | 0.09 | 2.3 | 1.88×0.65 | 47.8×16.6 | 1133 | 1686 |
| QYPN-96-5kV-3G4 | 4 | 21.1 | 0.204 | 5.182 | 0.09 | 2.3 | 1.99×0.69 | 50.5×17.5 | 1291 | 1922 |
| QYPN-96-5kV-3G25S | - | 25 | 0.222 | 5.639 | 0.09 | 2.3 | 2.06×0.71 | 52.4×18.1 | 1409 | 2096 |
| QYPN-96-5kV-3G2 | 2 | 33.6 | 0.258 | 6.553 | 0.09 | 2.3 | 2.21×0.76 | 56.2×19.4 | 1663 | 2475 |
| QYPN-96-5kV-3G1 | 1 | 42.4 | 0.289 | 7.341 | 0.09 | 2.3 | 2.34×0.81 | 59.5×20.5 | 1904 | 2834 |
| QYPN-96-5kV-3G1/0 | 1/0 | 53.5 | 0.368 | 9.347 | 0.09 | 2.3 | 2.67×0.92 | 67.8×23.3 | 2606 | 3878 |
| QYPN-96-5kV-3G2/0 | 2/0 | 67.4 | 0.414 | 10.516 | 0.09 | 2.3 | 2.86×0.98 | 72.6×24.9 | 3074 | 4575 |
