Submersible Pump Cables Flat Cables
205℉/96℃ PP/NBR Round Electrical Submersible Pump Cable
Applications:
These cables are designed for transmitting power to the submersible motor in the oil industry, suitable for installed down well in the oil industry.
Standards:
IEEE Std. 1019
API RP 11S5
API RP 11S6

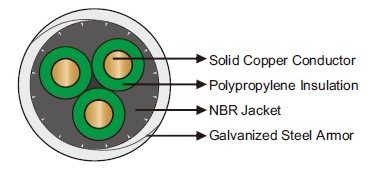

Construction:
Conductor: Solid/stranded copper conductor.
Insulation: Polypropylene insulation.
Jacket: Oil-resistant nitrile rubber.
Armor: Galvanized steel.
Dimensions and Weight:
3KV
| Cable Type | Conductor Size | Conductor O.D. | Insulation Thickness | Overall O.D. | Weight | |||||
|---|---|---|---|---|---|---|---|---|---|---|
| AWG | mm² | inches | mm | Inches | mm | Inches | mm | lbs/kft | kg/km | |
| QYPNY-96-3kV-3G10S | - | 10 | 0.14 | 3.556 | 0.075 | 1.9 | 1.03 | 26.1 | 724 | 1077 |
| QYPNY-96-3kV-3G6 | 6 | 13.3 | 0.162 | 4.115 | 0.075 | 1.9 | 1.09 | 27.8 | 832 | 1238 |
| QYPNY-96-3kV-3G16S | - | 16 | 0.178 | 4.521 | 0.075 | 1.9 | 1.14 | 29.0 | 917 | 1364 |
| QYPNY-96-3kV-3G4 | 4 | 21.1 | 0.204 | 5.182 | 0.075 | 1.9 | 1.22 | 31.0 | 1066 | 1587 |
| QYPNY-96-3kV-3G25S | - | 25 | 0.222 | 5.639 | 0.075 | 1.9 | 1.27 | 32.3 | 1178 | 1752 |
| QYPNY-96-3kV-3G2 | 2 | 33.6 | 0.258 | 6.553 | 0.075 | 1.9 | 1.38 | 35.1 | 1420 | 2114 |
| QYPNY-96-3kV-3G1 | 1 | 42.4 | 0.289 | 7.341 | 0.075 | 1.9 | 1.47 | 37.4 | 1651 | 2456 |
| QYPNY-96-3kV-3G1/0 | 1/0 | 53.5 | 0.368 | 9.347 | 0.075 | 1.9 | 1.71 | 43.4 | 2326 | 3462 |
| QYPNY-96-3kV-3G2/0 | 2/0 | 67.4 | 0.414 | 10.516 | 0.075 | 1.9 | 1.84 | 46.8 | 2779 | 4135 |
5KV
| Cable Type | Conductor Size | Conductor O.D. | Insulation Thickness |
Overall O.D. | Weight | |||||
|---|---|---|---|---|---|---|---|---|---|---|
| AWG | mm² | inches | mm | Inches | mm | Inches | mm | lbs/kft | kg/km | |
| QYPNY-96-5kV-3G10S | - | 10 | 0.14 | 3.556 | 0.09 | 2.3 | 1.12 | 28.5 | 806 | 1199 |
| QYPNY-96-5kV-3G6 | 6 | 13.3 | 0.162 | 4.115 | 0.09 | 2.3 | 1.19 | 30.2 | 917 | 1365 |
| QYPNY-96-5kV-3G16S | - | 16 | 0.178 | 4.521 | 0.09 | 2.3 | 1.24 | 31.4 | 1005 | 1495 |
| QYPNY-96-5kV-3G4 | 4 | 21.1 | 0.204 | 5.182 | 0.09 | 2.3 | 1.31 | 33.4 | 1158 | 1724 |
| QYPNY-96-5kV-3G25S | - | 25 | 0.222 | 5.639 | 0.09 | 2.3 | 1.37 | 34.7 | 1272 | 1894 |
| QYPNY-96-5kV-3G2 | 2 | 33.6 | 0.258 | 6.553 | 0.09 | 2.3 | 1.47 | 37.4 | 1521 | 2263 |
| QYPNY-96-5kV-3G1 | 1 | 42.4 | 0.289 | 7.341 | 0.09 | 2.3 | 1.57 | 39.8 | 1756 | 2613 |
| QYPNY-96-5kV-3G1/0 | 1/0 | 53.5 | 0.368 | 9.347 | 0.09 | 2.3 | 1.80 | 45.7 | 2444 | 3637 |
| QYPNY-96-5kV-3G2/0 | 2/0 | 67.4 | 0.414 | 10.516 | 0.09 | 2.3 | 1.94 | 49.2 | 2903 | 4321 |
