Submersible Pump Cables Flat Cables
250℉/121℃ PP/LEAD Flat Electrical Submersible Pump Cable
Applications:
These cables are designed for transmitting power to the submersible motor in the oil industry, suitable for installed down well in the oil industry.
Standards:
IEEE Std. 1019
API RP 11S5
API RP 11S6

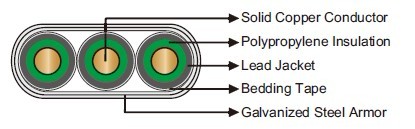

Construction:
Conductor: Solid bare copper conductor.
Insulation: Polypropylene insulation with a metal deactivator and a poly adhesive layer to the conductor.
Jacket: Lead jacket.
Tape: Longitudinally applied, rubber backed, fabric bedding tap.
Armor: Galvanized steel tape.
Dimensions and Weight:
5KV
| Cable Type | Conductor Size |
Conductor O.D. |
Insulation Thickness |
Overall O.D. | Weight | |||||
|---|---|---|---|---|---|---|---|---|---|---|
| AWG | mm² | inches | mm | Inches | mm | Inches | mm | lbs/ kft |
kg/ km |
|
| QYPQ-121-5kV-3G4 | 4 | 21.1 | 0.20 | 5.2 | 0.09 | 2.3 | 1.60 x 0.62 | 40.6 x 15.7 | 1700 | 2529 |
| QYPQ-121-5kV-3G2 | 2 | 33.6 | 0.26 | 6.6 | 0.09 | 2.3 | 1.76 x 0.67 | 44.7 x 17.0 | 2100 | 3124 |
| QYPQ-121-5kV-3G1 | 1 | 42.4 | 0.29 | 7.4 | 0.09 | 2.3 | 1.85 x 0.70 | 47.0 x 17.8 | 2400 | 3571 |
Other conductor size can be offered upon request.
