284℉/140℃ EPDM/NBR Round Electrical Submersible Pump Cable









Applications:

These cables are designed for transmitting power to the submersible motor in the oil industry, suitable for installed down well in the oil industry.

Standards:

IEEE Std. 1018

API RP 11S5

API RP 11S6

Construction:

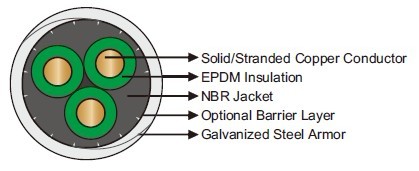

Submersible Pump Cables Flat Cables

Conductor: Solid/stranded copper conductor.

Insulation: EPDM insulation.

Optional Barrier: Tape, braid, tape and braid, or extruded barrier, used for fluid protection and hoop strength.

Jacket: Oil-resistant nitrile rubber.

Armor: Galvanized steel.

Dimensions and Weight:

3KV

Cable Type Conductor Size Conductor O.D. Insulation Thickness Overall O.D. Weight
  AWG mm² inches mm Inches mm Inches mm lbs/kft kg/km
QYENY-140-3kV-3G10S - 10 0.14 3.556 0.075 1.9 1.03 26.1 661 983
QYENY-140-3kV-3G6 6 13.3 0.162 4.115 0.075 1.9 1.09 27.8 763 1135
QYENY-140-3kV-3G16S - 16 0.178 4.521 0.075 1.9 1.14 29.0 843 1254
QYENY-140-3kV-3G4 4 21.1 0.204 5.182 0.075 1.9 1.22 31.0 985 1465
QYENY-140-3kV-3G25S - 25 0.222 5.639 0.075 1.9 1.27 32.3 1091 1623
QYENY-140-3kV-3G2 2 33.6 0.258 6.553 0.075 1.9 1.38 35.1 1323 1969
QYENY-140-3kV-3G1 1 42.4 0.289 7.341 0.075 1.9 1.47 37.4 1544 2298
QYENY-140-3kV-3G1/0 1/0 53.5 0.368 9.347 0.075 1.9 1.71 43.4 2197 3269
QYENY-140-3kV-3G2/0 2/0 67.4 0.414 10.516 0.075 1.9 1.84 46.8 2635 3922

5KV

Cable Type Conductor Size Conductor
O.D.
Insulation Thickness Overall O.D. Weight
  AWG mm² inches mm Inches mm Inches mm lbs/kft kg/km
QYENY-140-5kV-3G10S - 10 0.14 3.556 0.09 2.3 1.12 28.5 724 1077
QYENY-140-5kV-3G6 6 13.3 0.162 4.115 0.09 2.3 1.19 30.2 828 1232
QYENY-140-5kV-3G16S - 16 0.178 4.521 0.09 2.3 1.24 31.4 910 1354
QYENY-140-5kV-3G4 4 21.1 0.204 5.182 0.09 2.3 1.31 33.4 1054 1568
QYENY-140-5kV-3G25S - 25 0.222 5.639 0.09 2.3 1.37 34.7 1162 1729
QYENY-140-5kV-3G2 2 33.6 0.258 6.553 0.09 2.3 1.47 37.4 1397 2079
QYENY-140-5kV-3G1 1 42.4 0.289 7.341 0.09 2.3 1.57 39.8 1622 2413
QYENY-140-5kV-3G1/0 1/0 53.5 0.368 9.347 0.09 2.3 1.80 45.7 2281 3395
QYENY-140-5kV-3G2/0 2/0 67.4 0.414 10.516 0.09 2.3 1.94 49.2 2725 4055
