400℉/204℃ EPDM/LEAD Flat Electrical Submersible Pump Cable
Applications:
These cables are designed for transmitting power to the submersible motor in the oil industry, suitable for installed down well in the oil industry.
Standards:
IEEE Std. 1018
API RP 11S5
API RP 11S6

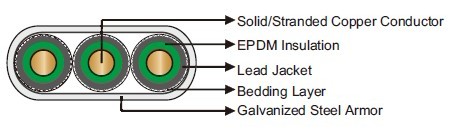

Construction:
Conductor: Solid/stranded copper conductor.
Insulation: EPDM insulation.
Jacket: Lead jacket. Each insulated conductor should have a lead sheath extruded over the insulation.
Bedding Layer: Bedding tape or braid.
Armor: Galvanized steel.
Dimensions and Weight:
3KV
| Cable Type | Conductor Size | Conductor O.D. |
Insulation Thickness | Overall O.D. | Weight | |||||
|---|---|---|---|---|---|---|---|---|---|---|
| AWG | mm² | inches | mm | Inches | mm | Inches | mm | lbs/ kft |
kg/ km |
|
| QYEQ-204-3kV-3G10S | - | 10 | 0.14 | 3.556 | 0.075 | 1.9 | 1.48×0.52 | 37.5×13.2 | 1461 | 2175 |
| QYEQ-204-3kV-3G6 | 6 | 13.3 | 0.162 | 4.115 | 0.075 | 1.9 | 1.57×0.55 | 39.8×13.9 | 1617 | 2406 |
| QYEQ-204-3kV-3G16S | - | 16 | 0.178 | 4.521 | 0.075 | 1.9 | 1.63×0.57 | 41.5×14.5 | 1736 | 2583 |
| QYEQ-204-3kV-3G4 | 4 | 21.1 | 0.204 | 5.182 | 0.075 | 1.9 | 1.74×0.61 | 44.2×15.4 | 1941 | 2888 |
| QYEQ-204-3kV-3G25S | - | 25 | 0.222 | 5.639 | 0.075 | 1.9 | 1.81×0.63 | 46.1×16.0 | 2091 | 3111 |
| QYEQ-204-3kV-3G2 | 2 | 33.6 | 0.258 | 6.553 | 0.075 | 1.9 | 1.96×0.68 | 49.9×17.3 | 2410 | 3587 |
| QYEQ-204-3kV-3G1 | 1 | 42.4 | 0.289 | 7.341 | 0.075 | 1.9 | 2.09×0.72 | 53.1×18.4 | 2707 | 4029 |
| QYEQ-204-3kV-3G1/0 | 1/0 | 53.5 | 0.368 | 9.347 | 0.075 | 1.9 | 2.42×0.83 | 61.4×21.2 | 3552 | 5285 |
| QYEQ-204-3kV-3G2/0 | 2/0 | 67.4 | 0.414 | 10.516 | 0.075 | 1.9 | 2.61×0.90 | 66.3×22.8 | 4103 | 6105 |
5KV
| Cable Type | Conductor Size | Conductor O.D. |
Insulation Thickness | Overall O.D. | Weight | |||||
|---|---|---|---|---|---|---|---|---|---|---|
| AWG | mm² | inches | mm | Inches | mm | Inches | mm | lbs/kft | kg/km | |
| QYEQ-204-5kV-3G10S | - | 10 | 0.14 | 3.556 | 0.075 | 1.9 | 1.48×0.52 | 37.5×13.2 | 1461 | 2175 |
| QYEQ-204-5kV-3G6 | 6 | 13.3 | 0.162 | 4.115 | 0.075 | 1.9 | 1.57×0.55 | 39.8×13.9 | 1617 | 2406 |
| QYEQ-204-5kV-3G16S | - | 16 | 0.178 | 4.521 | 0.075 | 1.9 | 1.63×0.57 | 41.5×14.5 | 1736 | 2583 |
| QYEQ-204-5kV-3G4 | 4 | 21.1 | 0.204 | 5.182 | 0.075 | 1.9 | 1.74×0.61 | 44.2×15.4 | 1941 | 2888 |
| QYEQ-204-5kV-3G25S | - | 25 | 0.222 | 5.639 | 0.075 | 1.9 | 1.81×0.63 | 46.1×16.0 | 2091 | 3111 |
| QYEQ-204-5kV-3G2 | 2 | 33.6 | 0.258 | 6.553 | 0.075 | 1.9 | 1.96×0.68 | 49.9×17.3 | 2410 | 3587 |
| QYEQ-204-5kV-3G1 | 1 | 42.4 | 0.289 | 7.341 | 0.075 | 1.9 | 2.09×0.72 | 53.1×18.4 | 2707 | 4029 |
| QYEQ-204-5kV-3G1/0 | 1/0 | 53.5 | 0.368 | 9.347 | 0.075 | 1.9 | 2.42×0.83 | 61.4×21.2 | 3552 | 5285 |
| QYEQ-204-5kV-3G2/0 | 2/0 | 67.4 | 0.414 | 10.516 | 0.075 | 1.9 | 2.61×0.90 | 66.3×22.8 | 4103 | 6105 |
