400℉/204℃ EPDM/EPDM Round Electrical Submersible Pump Cable
Applications:
These cables are designed for transmitting power to the submersible motor in the oil industry, suitable for installed down well in the oil industry.
Standards:
IEEE Std. 1018
API RP 11S5
API RP 11S6

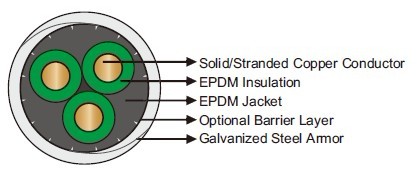

Construction:
Conductor: Solid/stranded copper conductor.
Insulation: EPDM insulation.
Optional Barrier: Tape, braid, tape and braid, or extruded barrier, used for fluid protection and hoop strength.
Jacket: EPDM rubber.
Armor: Galvanized steel.
Dimensions and Weight:
3KV
| Cable Type | Conductor Size | Conductor O.D. | Insulation Thickness | Overall O.D. | Weight | |||||
|---|---|---|---|---|---|---|---|---|---|---|
| AWG | mm² | inches | mm | Inches | mm | Inches | mm | lbs/kft | kg/km | |
| QYEEY-204-3kV-3G10S | - | 10 | 0.14 | 3.556 | 0.075 | 1.9 | 1.03 | 26.1 | 694 | 1032 |
| QYEEY-204-3kV-3G6 | 6 | 13.3 | 0.162 | 4.115 | 0.075 | 1.9 | 1.09 | 27.8 | 798 | 1187 |
| QYEEY-204-3kV-3G16S | - | 16 | 0.178 | 4.521 | 0.075 | 1.9 | 1.14 | 29.0 | 880 | 1309 |
| QYEEY-204-3kV-3G4 | 4 | 21.1 | 0.204 | 5.182 | 0.075 | 1.9 | 1.22 | 31.0 | 1024 | 1524 |
| QYEEY-204-3kV-3G25S | - | 25 | 0.222 | 5.639 | 0.075 | 1.9 | 1.27 | 32.3 | 1132 | 1685 |
| QYEEY-204-3kV-3G2 | 2 | 33.6 | 0.258 | 6.553 | 0.075 | 1.9 | 1.38 | 35.1 | 1368 | 2036 |
| QYEEY-204-3kV-3G1 | 1 | 42.4 | 0.289 | 7.341 | 0.075 | 1.9 | 1.47 | 37.4 | 1593 | 2370 |
| QYEEY-204-3kV-3G1/0 | 1/0 | 53.5 | 0.368 | 9.347 | 0.075 | 1.9 | 1.71 | 43.4 | 2254 | 3354 |
| QYEEY-204-3kV-3G2/0 | 2/0 | 67.4 | 0.414 | 10.516 | 0.075 | 1.9 | 1.84 | 46.8 | 2697 | 4014 |
5KV
| Cable Type | Conductor Size | Conductor O.D. | Insulation Thickness | Overall O.D. | Weight | |||||
|---|---|---|---|---|---|---|---|---|---|---|
| AWG | mm² | inches | mm | Inches | mm | Inches | mm | lbs/kft | kg/km | |
| QYEEY-204-5kV-3G10S | - | 10 | 0.14 | 3.556 | 0.09 | 2.3 | 1.12 | 28.5 | 760 | 1131 |
| QYEEY-204-5kV-3G6 | 6 | 13.3 | 0.162 | 4.115 | 0.09 | 2.3 | 1.19 | 30.2 | 867 | 1290 |
| QYEEY-204-5kV-3G16S | - | 16 | 0.178 | 4.521 | 0.09 | 2.3 | 1.24 | 31.4 | 950 | 1414 |
| QYEEY-204-5kV-3G4 | 4 | 21.1 | 0.204 | 5.182 | 0.09 | 2.3 | 1.31 | 33.4 | 1097 | 1632 |
| QYEEY-204-5kV-3G25S | - | 25 | 0.222 | 5.639 | 0.09 | 2.3 | 1.37 | 34.7 | 1207 | 1796 |
| QYEEY-204-5kV-3G2 | 2 | 33.6 | 0.258 | 6.553 | 0.09 | 2.3 | 1.47 | 37.4 | 1446 | 2152 |
| QYEEY-204-5kV-3G1 | 1 | 42.4 | 0.289 | 7.341 | 0.09 | 2.3 | 1.57 | 39.8 | 1674 | 2491 |
| QYEEY-204-5kV-3G1/0 | 1/0 | 53.5 | 0.368 | 9.347 | 0.09 | 2.3 | 1.80 | 45.7 | 2342 | 3485 |
| QYEEY-204-5kV-3G2/0 | 2/0 | 67.4 | 0.414 | 10.516 | 0.09 | 2.3 | 1.94 | 49.2 | 2790 | 4152 |
