2491X to BS 6004 Cables
450/750V PVC Insulated, Non-sheathed Cables (single core)
FGD100 07V-R (CU/PVC 450/750V Class 2)
APPLICATION:
Airprot cables are designed for use in the switch control, relay and instrumentation panels of power switchgear and for purposes such as internal connectors in rectifier equipment, motor starters and controllers. The cables can be offered with the ability to restrict the propagation of the flame in the event of a fire.
STANDARDS:
Basic design to BS 6004
FIRE PERFORMANCE:
| Flame Retardance (SingleVerticalWireTest)** | EN60332-1-2; IEC60332-1-2; BSEN 60332-1-2; VDE0482-332-1; NBN C30-004 (cat.F1);NF C32-070-2.1(C2); CEI 20-35/1-2; EN 50265-2-1*; DIN VDE 0482-265-2-1* |
|---|---|
| Reduced FirePropagation(Vertically-mountedbundledwires &cabletest)** | EN60332-3-24 (cat.C); IEC60332-3-24;BSEN60332-3-24;VDE0482-332-3;NBNC30-004(cat.F2);NFC32-070-2.2(C1);CEI 20-22/3-4; EN 50266-2-4*; DIN VDE 0482-266-2-4 |
Note:
Asterisk * denotes superseded standard
Asterisk ** denotes that the standard compliance is optional, depending on the oxygen index of the PVC compound and the cable design.
VOLTAGE RATING:
450/750V
CABLE CONSTRUCTION:

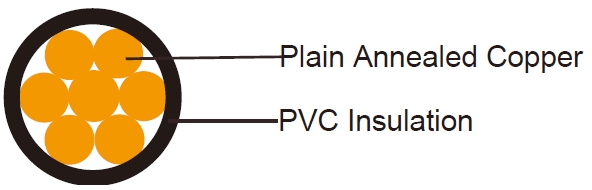

Conductor: Plain annealed copper wire, stranded according to IEC(EN) 60228 class 2.
Insulation: Special PVC TI1 core insulation to BS 7655
COLOUR CODE:
Insulation Colour: Brown, Black, Grey, Blue, Green/Yellow or as per order
Physical AND THERMAL PROPERTIES:
Minimum bending radius: 6 x Overall Diameter
Flexing temperature: -5º C to +70º C
Static temperature: -30º C to +80º C
Short circuit temperature: +160º C
CONSTRUCTION PARAMETERS:
| Conductor | FGD10007V-R | |||
|---|---|---|---|---|
| No.of Core XCross Section | No./Nominal DiameterofStrands |
Nominal Insulation Thickness |
Nominal Overall Diameter |
Approx.Weight |
| Noxmm2 | No./mm | mm | mm | kg/km |
| 1x2.5 | 7/0.67 | 0.8 | 3.6 | 36 |
Electrical PROPERTIES:
Conductor Operating Temperature : 90°C
Ambient Temperature : 30°C
Current-Carrying Capacities (Amp):
| Conductor cross- sectional area |
Reference Method4 (enclosed in conduitin thermally insulating walletc) |
Reference Method3 (enclosed inconduit ona wallorin trunkingetc) |
Reference Method1 (clipped direct) |
Reference Method11 (onaperforated cabletray ,horizontal or vertical) |
Reference Method 12 (freeair) |
||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Horizontal flat spaced |
Vertical flat spaced |
Trefoil | |||||||||
| 2cables, single- phase a.c.ord.c. |
3 or 4cables, 3-phasea.c. | 2cables, single- phase a.c.ord.c |
3 or 4cables, 3-phasea.c. | 2cables, single- phase a.c.or d.c. flat and touching |
3 or 4cables, 3-phase a.c. flat and touching or trefoil |
2cables,single- phase a.c.or d.c.orflat and touching |
3 or 4cables, 3-phase a.c. flat and touching or trefoil |
2cables, single- phase a.c.ord.c. or 3cablesthree phase |
2cables, single- phase a.c.ord.c. or 3 cables three phase |
3cables, trefoil 3- phasea.c. |
|
| 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 | 11 | 12 |
| mm2 | A | A | A | A | A | A | A | A | A | A | A |
| 2.5 | 24 | 23 | 30 | 26 | 34 | 31 | - | - | - | - | - |
Voltage Drop (Per Amp Per Meter)
| Nominal CrossSection Area |
2cables d.c. | 2 cables, single-phasea.c. |
3 or 4 cables, 3-phase a.c. |
|||
|---|---|---|---|---|---|---|
| Ref.Methods3 and 4(enclosed inconduitetc,inoron a wall) | Ref.Methods1 and11 (clippeddirectoron traystouching) |
Ref.Methods3 and 4(enclosed inconduitetc,inoron a wall) | Ref. Methods1, |
Ref.Methods 1and11 |
||
| 11 and12 (intrefoil) | (Flat and touching) | |||||
| 1 | 2 | 3 | 4 | 5 | 6 | 7 |
| mm2 | mV/A/m | mV/A/m | mV/A/m | mV/A/m | mV/A/m | mV/A/m |
| 2.5 | 19 | 19 | 16 | 16 | 16 | 16 |
