Automotive Cable
AEXHF-BS
Application:
This XLPE insulated cable is used in low voltage signal circuits in automobiles. Suitable for the consideration of the flexibility and thermal resistance.Suitable for the consieration of the shielding characteristic.

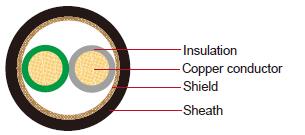

Construction:
Conductor: Annealed stranded copper
Insulation: Cross-Linked Polyethylene
Shield: Tin coated annealed copper
Sheath: Cross-linked Polyethylene
Standard Compliance:
JASO D608; HMC ES SPEC
Technical Parameters:
Operating temperature: –40 °C to +150 °C
|
Conductor | Insulation | Cable | ||||
|---|---|---|---|---|---|---|---|
| Nominal Cross- section |
No. and Dia. of Wires | Diameter max. | Electrical Resistance at 20 °C max. |
Thickness Wall nom. | Overall Diameter min. | Overall Diameter max. | Weight Approx. |
| mm2 | no./mm | mm | mΩ/m | mm | mm | mm | kg/km |
0.5(2C) |
20/0.18 |
0.93 |
39.1 |
0.5 |
5.9 |
6.1 |
42.5 |
0.85(2C) |
34/0.18 |
1.21 |
23 |
0.5 |
6.6 |
6.8 |
55 |
1.25 |
50/0.18 |
1.5 |
15.7 |
0.6 |
7.6 |
7.8 |
71.5 |
*Note: Other configurations, sizes, colors and length not specified herein are available upon request.
