Belden Equivalent Cables
Multipair Individually Screened Cables
Multipair Individually Screened Cables-Belden Equivalent 8764
Application :
Belden Equivalent 8764 cables have individually screened pairs laid up. Each individually screened pair has a 22AWG solid tinned copper drain wire. Belden Equivalent 8764 cables are suitable for used as audio, control and instrumentation cables.

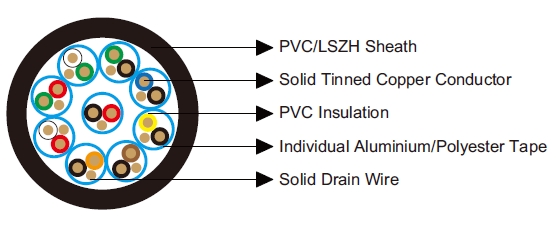

Construction :
Conductor: Tinned copper wire.
Insulation: PVC.
Individual Screen: Aluminium/Polyester Tape.
Drain Wire: Solid tinned copper wire.
Sheath: PVC/LSZH.
Insulation Colour: Black & Red, Black & White, Black & Green, Black & Blue, Black & Yellow, Black & Brown, Black & Orange, Red & White, Red & Green.
Electrical & Mechanical Characteristics:
| AWG | 22 | |
|---|---|---|
| Conductor Construction | Solid | |
| UL Style | 2464 | |
| Maximum Conductor Resistance | Ω/km | 54.8 |
| Voltage Rating | V | 300 |
| Nominal Capacitance Conductor to Conductor | pF/m | 131 |
| Nominal Capacitance Conductor to Screen | pF/m | 253 |
| Bending Radius | 10xOverall Diameter | |
| Operating Temperature | ℃ | -20~80 |
Dimensions:
| Ordering Code | No. of pairs | Insulation Thickness | Sheath Thickness | Overall Diameter |
|---|---|---|---|---|
| mm | mm | mm | ||
| BE118764V | 9 | 0.33 | 1.02 | 10.8 |
| BE118764H | 9 | 0.33 | 1.02 | 10.8 |
