Multicore Overall Screened Cables-Belden Equivalent 8772
Application :
Belden Equivalent 8772 multicore overall screened cables have individually insulated cores laid up in an aluminum/polyester tape with a tinned copper drain wire.Belden Equivalent 8772 cables are suitable for used as audio, control and instrumentation cables.

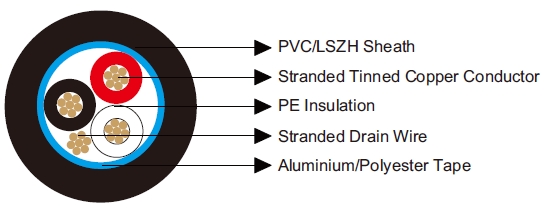

Construction :
Conductor: Tinned copper wire.
Insulation: PE.
Overall Screen: Aluminium/Polyester Tape.
Drain Wire: Tinned copper wire.
Sheath: PVC/LSZH.
Insulation Colour: Black, Red, Clear.
Electrical & Mechanical Characteristics:
| AWG | 20 | |
|---|---|---|
| Conductor Construction | 7x0.32 | |
| UL Style | 2093 | |
| Maximum Conductor Resistance | Ω/km | 34.1 |
| Voltage Rating | V | 300 |
| Nominal Capacitance Conductor to Conductor | pF/m | 89 |
| Nominal Capacitance Conductor to Screen | pF/m | 167 |
| Bending Radius | 10xOverall Diameter | |
| Operating Temperature | ℃ | -20~60 |
Dimensions:
| Ordering Code | No. of Cores | Insulation Thickness | Sheath Thickness | Overall Diameter |
|---|---|---|---|---|
| mm | mm | mm | ||
| BE118772V | 3 | 0.41 | 0.84 | 5.5 |
| BE118772H | 3 | 0.41 | 0.84 | 5.5 |
