Multipair Individually Screened Cables-Belden Equivalent 9729

Application :

Belden Equivalent 9729 cables have individually screened pairs laid up. Each individually screened pair has a 24AWG stranded tinned copper drain wire. Belden Equivalent 9729 cables are suitable for RS-422 applications, used as computer cables.

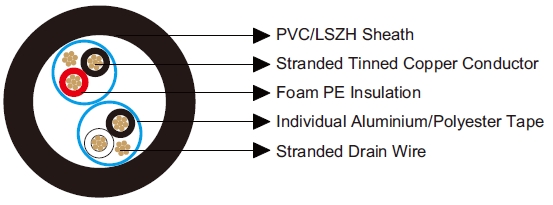

Construction:

Conductor: Tinned copper wire.

Insulation: Foam PE.

Individual Screen: Aluminium/Polyester Tape.

Drain Wire: Tinned copper wire.

Sheath: PVC/LSZH.

Insulation Colour: Black & Red, Black & White.

Electrical & Mechanical Characteristics:

AWG		24
Conductor Construction		7x0.2
UL Style		2493
Maximum Conductor Resistance	Ω/km	85
Voltage Rating	V	300
Nominal Capacitance Conductor to Conductor	pF/m	41
Nominal Capacitance Conductor to Screen	pF/m	76
Bending Radius		10xOverall Diameter
Operating Temperature	℃	-20~60

Dimensions:

Ordering Code	No. of pairs	Insulation Thickness	Sheath Thickness	Overall Diameter
		mm	mm	mm
BE119729V	2	0.47	1.19	8.1
BE119729H	2	0.47	1.19	8.1
