Industrial Cables
H05BQ-F/H07BQ-F(NGMH11YÖ)
Application and Description:
H05BQ-F/H07BQ-F(NGMH11YÖ) cables are used for medium mechanical stress in dry, damp or wet areas, e.g. for connecting agricultural and commercial equipment, for connecting heaters where there is a danger of cable damage due to its contact with hot surfaces. H05BQ-F/H07BQ-F(NGMH11YÖ) cable can also be used in electrical appliances such as drills, hand-held circular saws as well as in building sites and refrigeration plants. H07BQ-F can commonly be found in other machinery in agriculture, building sites, docks and refrigeration plants. The robust PUR jacket adds abrasion, notch and tear resistance as well as chemical resistance to oils, fats, petrol, water, ozone, UV radiation, hydrolysis and microbes. Common European designation is NGMH11YÖ.
Standard and Approval:
HD22.10 S1, VDE-0282 Part-10

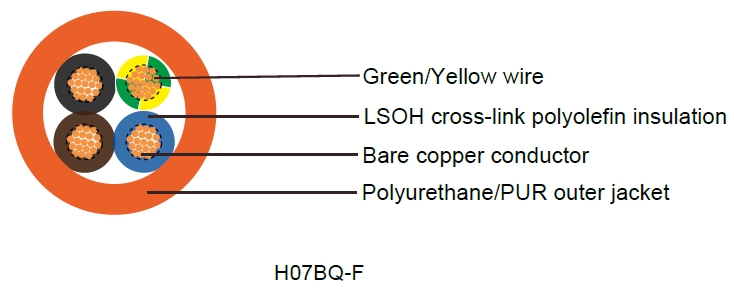

Cable Construction:
Fine bare or tinned copper strands
Strands to VDE-0295 Class-5, IEC 60228 and HD383 Class-5
Rubber compound insulation E16 to VDE-0282 Part-1
Color coded to VDE-0293-308
Conductors stranded in layers with optimal lay-length
Green-yellow earth core in the outer layer
Polyurethane/PUR outer jacket TMPUorange (RAL 2003)
Technical Characteristics:
Working voltage: 300/500 volts(H05BQ-F), 450/750 volts(H07BQ-F)
Test voltage: 2000 volts(H05BQ-F), 2500 volts(H07BQ-F}
Flexing bending radius: 5 x Ø
Fixed bending radius: 3 x Ø
Flexing Temperature: -40º C to +80º C
Fixed Temperature: -50º C to +90º C
Short circuit Temperature: +250º C
Flame retardant: IEC 60332.1
Insulation resistance: 20 MΩ x km
Cable Parameter:
| AWG | No. of Cores x Nominal Cross Sectional Area # x mm² |
Nominal Thickness of Insulation mm |
Nominal Thickness of Sheath mm |
Nominal Overall Diameter mm |
Nominal Copper Weight kg/km |
Nominal Weight kg/km |
|---|---|---|---|---|---|---|
H05BQ-F |
||||||
18(24/32) |
2 x 0.75 |
0.6 |
0.8 |
5.7 - 7.4 |
14.4 |
52 |
18(24/32) |
3 x 0.75 |
0.6 |
0.9 |
6.2 - 8.1 |
21.6 |
63 |
18(24/32) |
4 x 0.75 |
0.6 |
0.9 |
6.8 - 8.8 |
29 |
80 |
18(24/32) |
5 x 0.75 |
0.6 |
1.0 |
7.6 - 9.9 |
36 |
96 |
17(32/32) |
2 x 1 |
0.6 |
0.9 |
6.1 - 8.0 |
19.2 |
59 |
17(32/32) |
3 x 1 |
0.6 |
0.9 |
6.5 - 8.5 |
29 |
71 |
17(32/32) |
4 x 1 |
0.6 |
0.9 |
7.1 - 9.3 |
38.4 |
89 |
17(32/32) |
5 x 1 |
0.6 |
1.0 |
8.0 - 10.3 |
48 |
112 |
H07BQ-F |
||||||
16(30/30) |
2 x 1.5 |
0.8 |
1.0 |
7.6 - 9.8 |
29 |
92 |
16(30/30) |
3 x 1.5 |
0.8 |
1.0 |
8.0 - 10.4 |
43 |
109 |
16(30/30) |
4 x 1.5 |
0.8 |
1.1 |
9.0 - 11.6 |
58 |
145 |
16(30/30) |
5 x 1.5 |
0.8 |
1.1 |
9.8 - 12.7 |
72 |
169 |
14(50/30) |
2 x 2.5 |
0.9 |
1.1 |
9.0-11.6 |
101 |
121 |
14(50/30) |
3 x 2.5 |
0.9 |
1.1 |
9.6-12.4 |
173 |
164 |
14(50/30) |
4 x 2.5 |
0.9 |
1.2 |
10.7 - 13.8 |
48 |
207 |
14(50/30) |
5 x 2.5 |
0.9 |
1.3 |
11.9 - 15.3 |
72 |
262 |
12(56/28) |
2 x 4 |
1.0 |
1.2 |
10.6 - 13.7 |
96 |
194 |
12(56/28) |
3 x 4 |
1.0 |
1.2 |
11.3 - 14.5 |
120 |
224 |
12(56/28) |
4 x 4 |
1.0 |
1.3 |
12.7 - 16.2 |
77 |
327 |
12(56/28) |
5 x 4 |
1.0 |
1.4 |
14.1 - 17.9 |
115 |
415 |
10(84/28 |
2 x 6 |
1.0 |
1.3 |
11.8 - 15.1 |
154 |
311 |
10(84/28 |
3 x 6 |
1.0 |
1.4 |
12.8 - 16.3 |
192 |
310 |
10(84/28 |
4 x 6 |
1.0 |
1.5 |
14.2-18.1 |
115 |
310 |
10(84/28 |
5 x 6 |
1.0 |
1.6 |
15.7-20.0 |
173 |
496 |
